Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 27 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

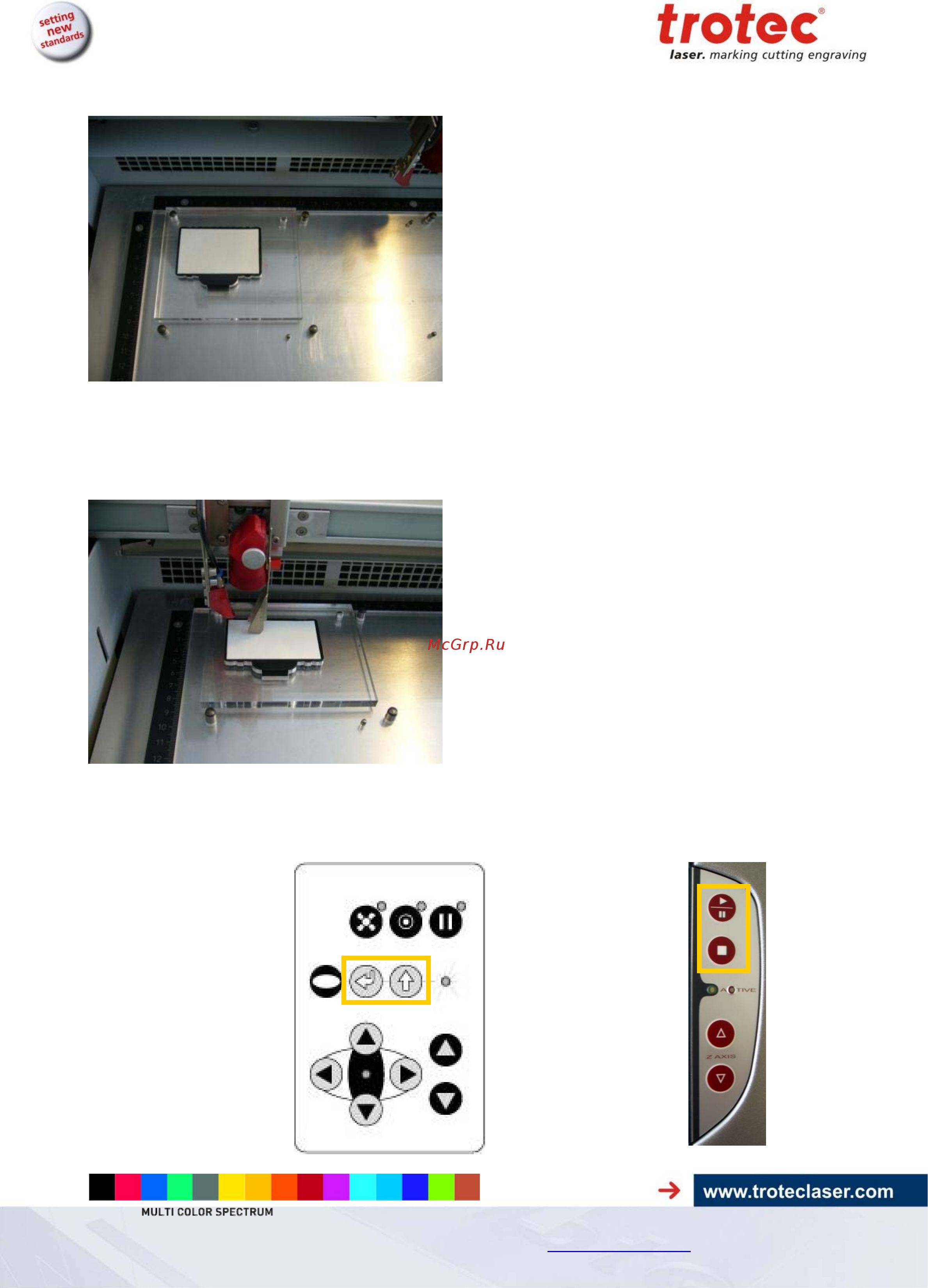

Put any inkpad to position 1/1 on the tray and put the tray in the laser.
Click “Next” in the software.
Click “Ok” in the software to start the automatic move of the working head over the pad.
Focus the working head of the laser with the focus tool. Then move the table down appr. 4mm.
Close the top lid of the laser.
Do a test pulse with the laser.
Test pulse on Trotec
Speedy:
Press “Enter” and “Shift”
button simultaneously.
Test pulse on Rayjet:
Press “Play/Pause”
and “Stop” button
simultaneously.
