Multi Color Jet
BEFORE OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 17 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

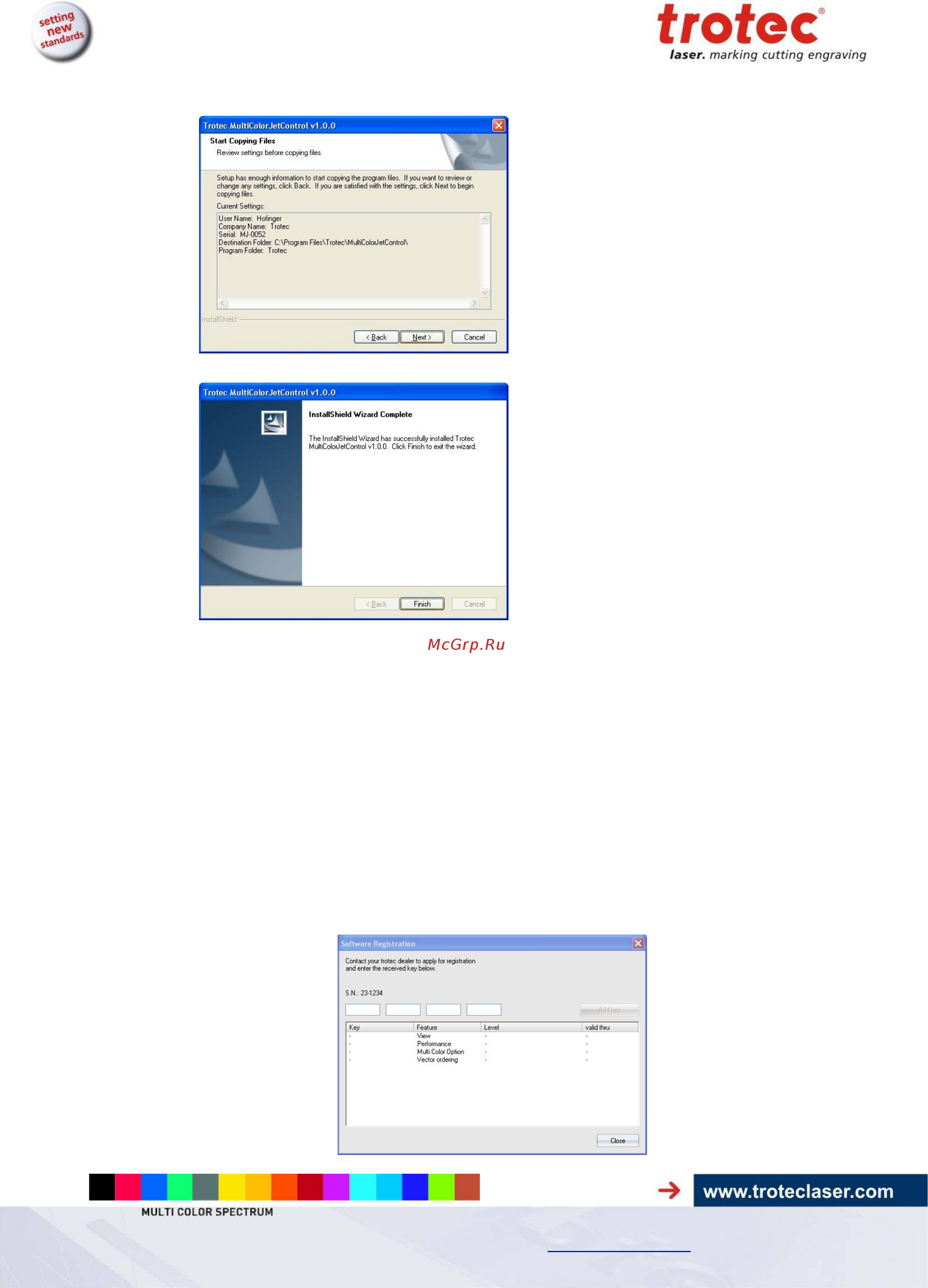

Check the current settings. If ok, click on “Next” to continue.
Install shield wizard is has competed the installation. Click on “Finish” to continue.
3.6 Software Registration
3.6.1 JobControl
Start JobControl
Go to “Help – Software Registration”
Enter the 4x4 digit multi color option key (xxxx-xxxx-xxxx-xxxx) which you get from your distributor.
Click on “Add key”
3.6.2 Minimanager
Start Minimanager
Right click on the Minimanager icon on the task bar and select “Options”
Enter the key combination “Ctrl+ALT+M”
Enter the 4x4 digit multi color option key (xxxx-xxxx-xxxx-xxxx) which you get from your distributor.
Click on “Add key”
