Multi Color Jet

OPERATION

14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 40 / 64

tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

Choose the necessary action and click on “Go” to start the procedure. It is recommended to follow

this order:

Blow Out Drives the dispensing unit to the tank you select in a dialogue box and empties

the ink to the tank after confirmation of the position.

Eject Dispenser Drives the dispensing unit to the dispenser position you select in a dialogue box

and ejects the dispenser after confirmation of the position.

Dispenser has to be empty before you do that, so if in doubt, start the “Blow

Out” action in advance.

Never remove the dispenser manually from the dispenser unit.

Always us the “Eject Dispenser” option in “Manual Access”.

Park position Moves the dispenser unit to the front and left – comparable to the reference

move of x- and y-axis

Table down Moves the table to the bottom– comparable to the reference move of z-axis

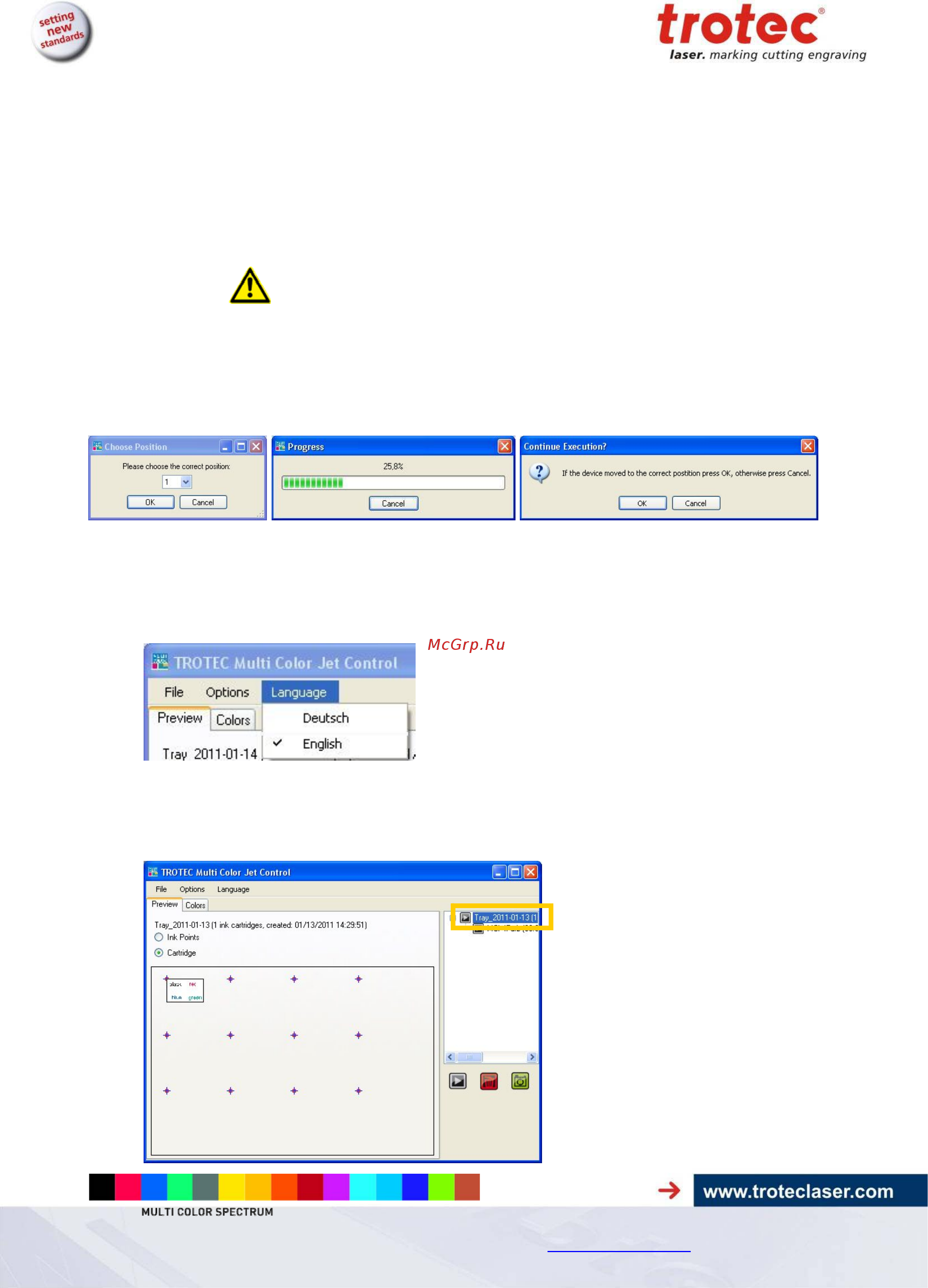

The following windows will show up to let you select and confirm the “Blow Out” and “Eject

Dispenser” actions.

Calibration with Laser

Refer to section “4.4.2 Calibrate Multi Color Jet to Laser” for details of the calibration process.

Menu - Language

Select your whished language.

4.6.3 Preview Area

Click on a Tray to see it in the Preview area.
