Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 28 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

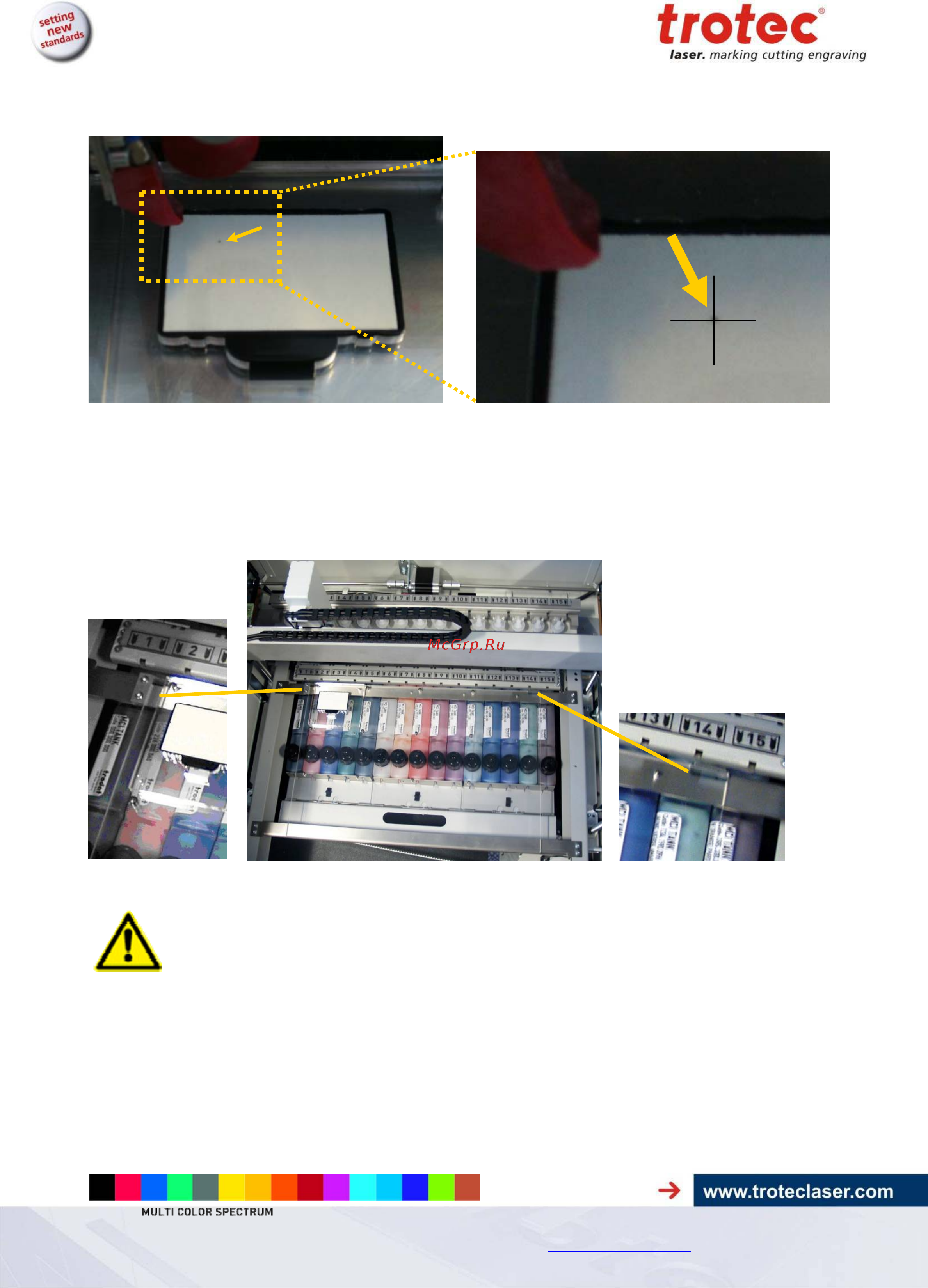

On the pad you can see a small dot created by the laser. Add a crosshair manually to make it
easier to find the dot later on.
Crosshair on
created dot
Click “Next” in the software.
Click “OK” in the software to connect to the Multi Color Jet.
Take the tray out of the laser.
Place the tray in the Multi Color Jet – do not change the position of the pad.
Caution: Take care to position the tray at the sling points – there must not be a gap.
