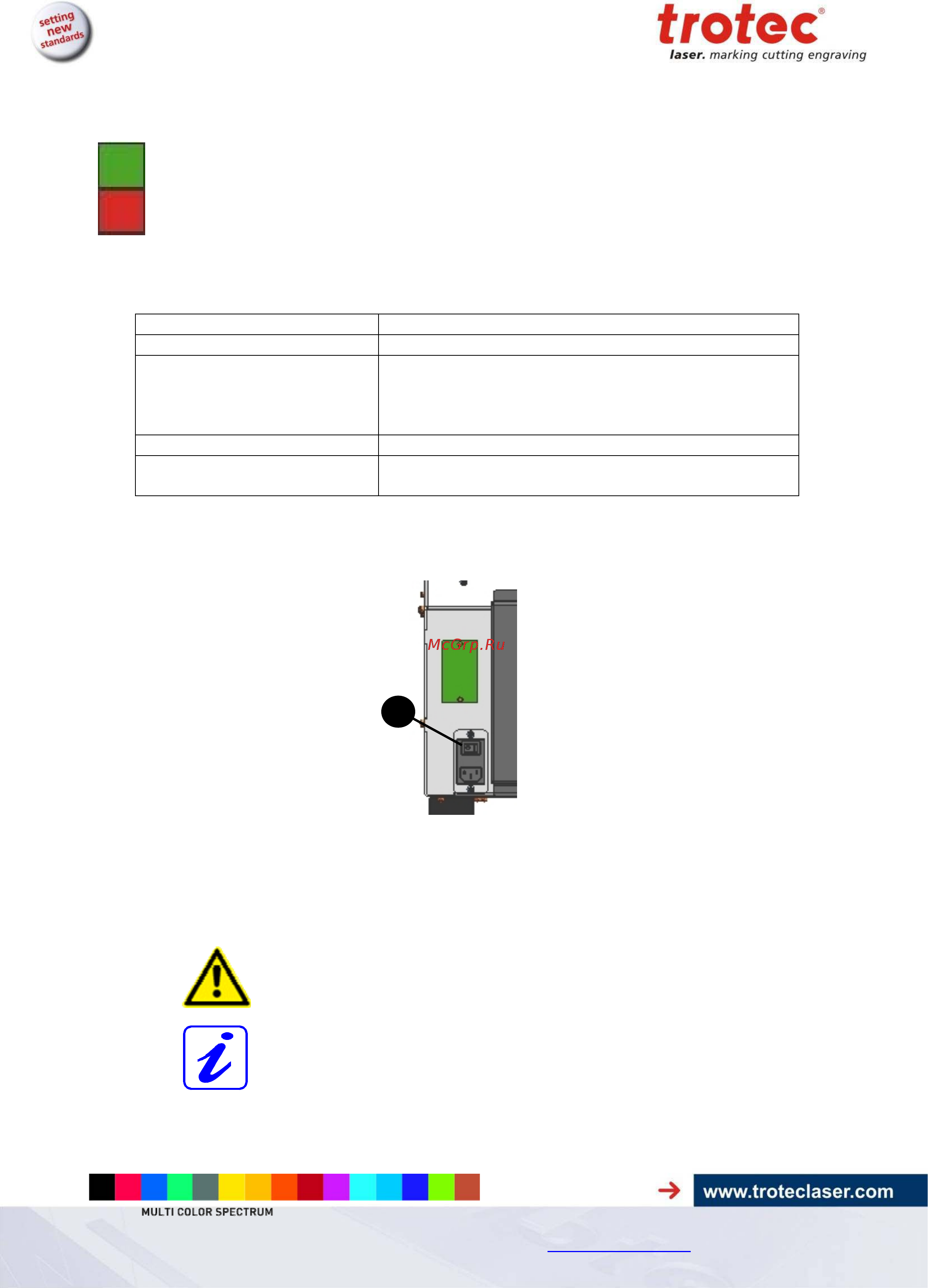

4.2 Start / Stop buttons

Pressing the green “Start” button starts the job which is currently visible in the Multi Color

Jet software.

If the red “Stop” button is pressed during operation, the motion system is stopped. The

job cannot be continued. Please cut a new pad and ink it with the new generated ink job.

The start / stop buttons give LED signals which provide information according the status of the

Multi Color Jet. See the table below for details.

Condition of LED Status of Multi Color Jet

Green flashing slow (0,5 Hz) Multi Color Jet is IDLE and waiting for commands

Green flashing fast (1 Hz) The top lid is opened and no data can be processed

due to open interlock system.

Multi Color Jet is receiving data.

Green permanent light Data available / being processed in Multi Color Jet.

Red flashing Error on the machine (e. g. reference switch

triggered). Turn the machine off and on.

4.3 ON / OFF Switch

Switches the mains supply ON/OFF.

The following conditions must be fulfilled for correct start up:

- unrestricted freedom of motion of the mechanics

- top lid closed

Before switching on the device, the user must make sure that no

objects of any kind are located inside the operating space, which

could limit or obstruct the mechanics of the device.

When switching off the mains supply, all processing data is lost.
