Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 39 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

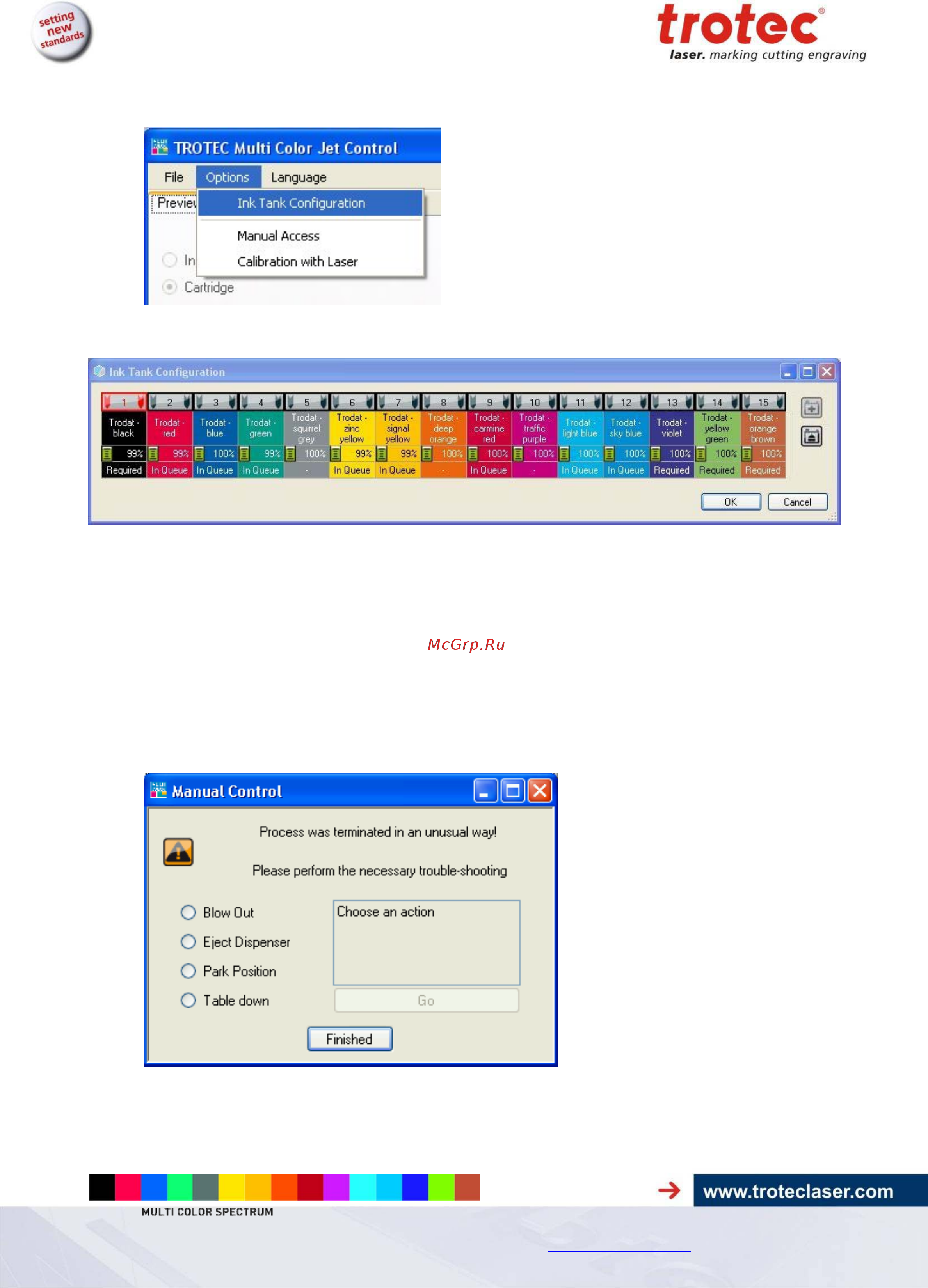

Menu - Options
Ink Tank Configuration
In this window you can see the ink tanks which are installed and the information according to the
calculated filling level of each tank.
Additionally, you can see the demand of the ink based on the tray queue list:
In Queue ink will be used in at least one of the trays in the Tray-List (Skipped pads excluded)
Required ink will be used in the currently marked tray or pad (Skipped pads excluded)
– ink not used in any of the trays in the queue (Skipped pads included)
Also refer to the section “4.7.1 Exchange ink tanks” for additional information regarding the button
functions.
Manual Access
In case of any incident like opened top cover during operation the Multi Color Jet might stop in
between the inking procedure. In such case the dispenser might be full of ink and somewhere in
the middle of the working area. There is NO automatic error handling, you have to get “Manual
Access” to bring the machine back to normal condition.
