Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 47 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

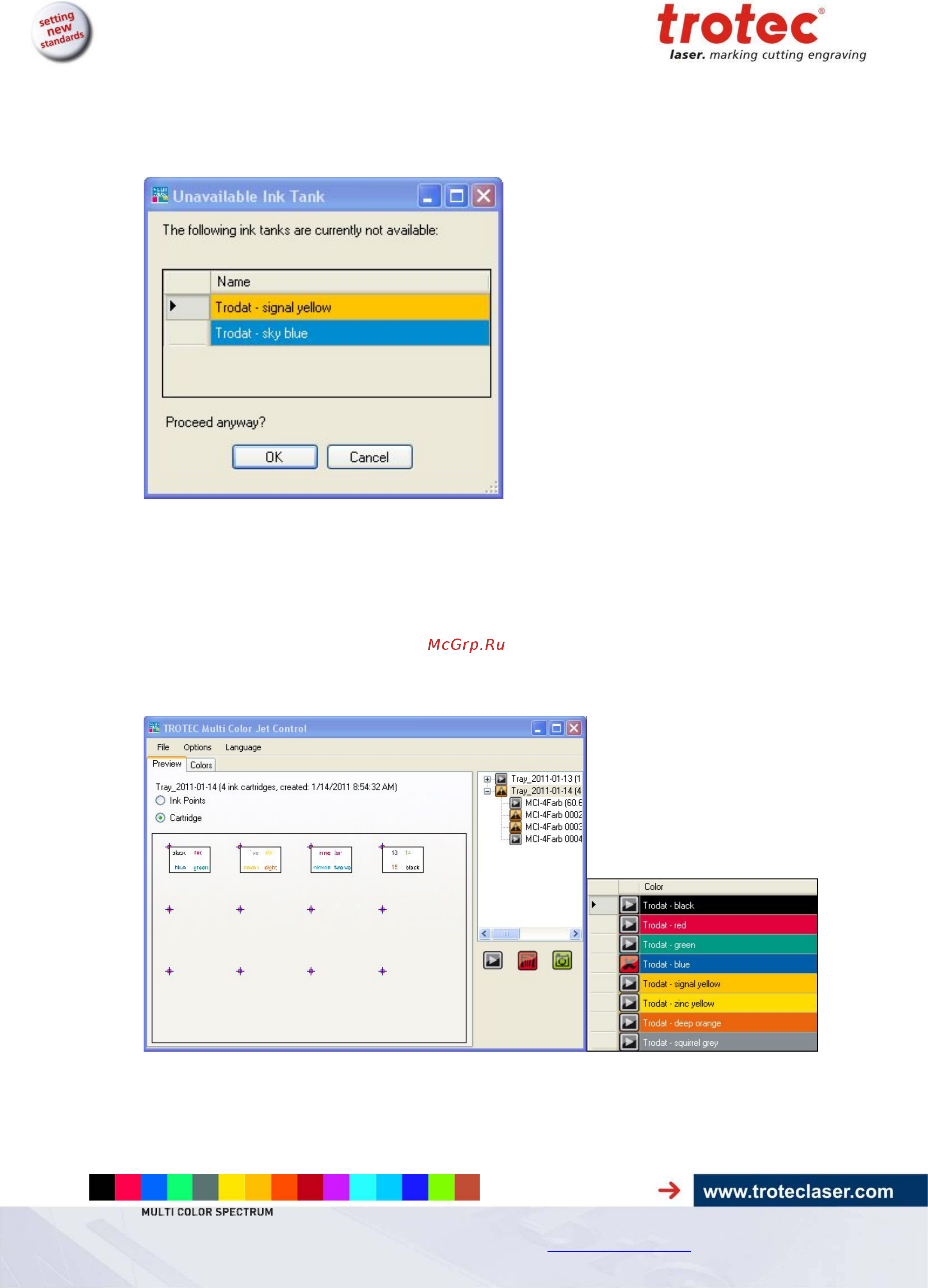

4.7.2 Message “Unavailable Ink Tank”
When you remove ink tanks or the calculated volume in an ink tank is below the safety volume and
you try to run a job with the missing ink, the following message will show up.
Click on “OK” to proceed without any changes. The pad will show a warning exclamation mark and
will not be proceeded. You can run the pad later, when the ink is available.
Click on “Cancel” to insert the ink tank and solve the situation as described in section “4.7.1
Exchange ink tanks”.
Whenever such situation shows up, you will see a warning symbol at the tray and each job with
missing color in the queue on the right.
In the “Colors” tab, the missing color is crossed out.
