Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 46 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

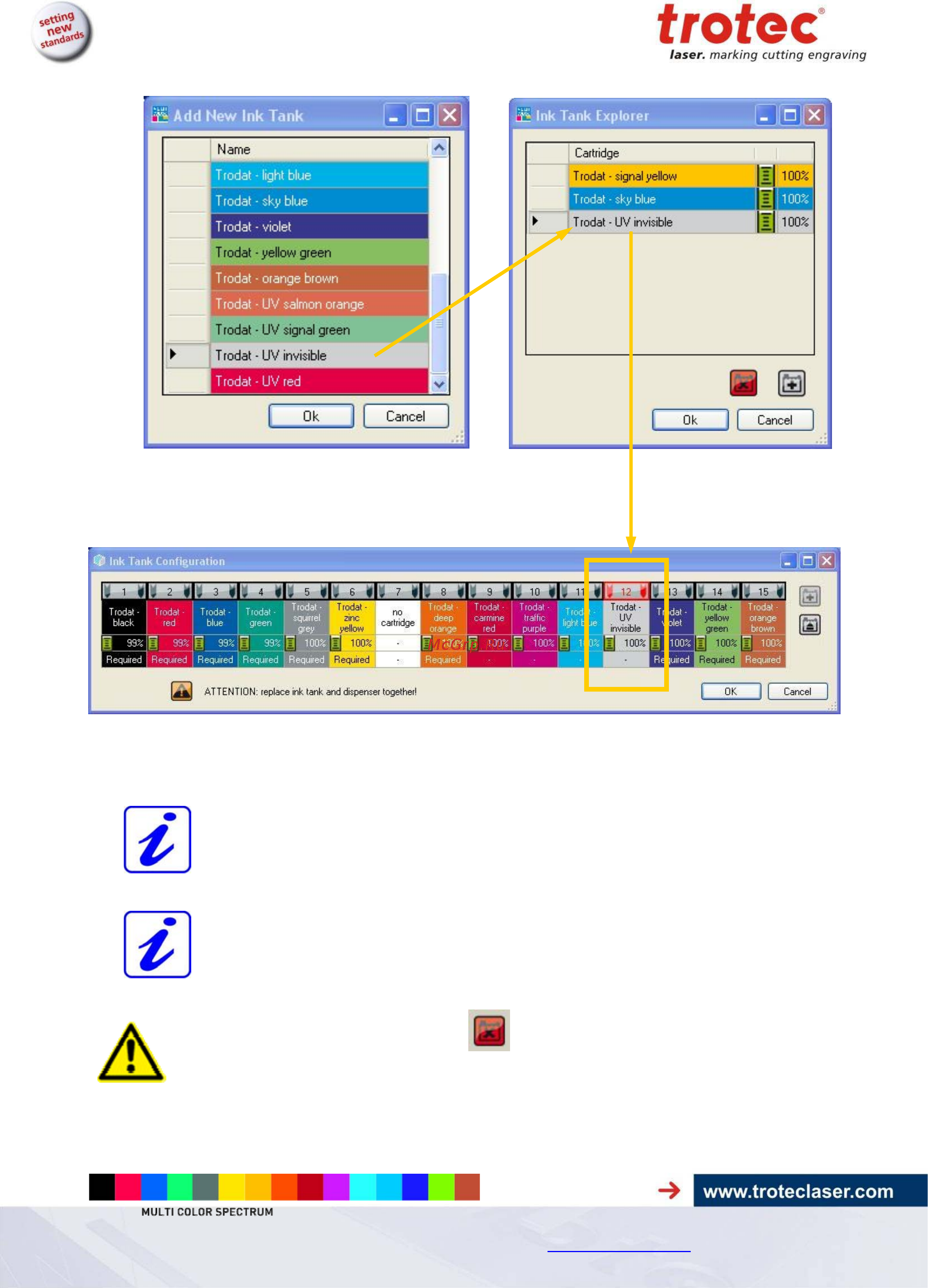

Select the ink you want to insert in the empty position and click on “Ok” or do a double click directly
on the ink. The window will close and the selected color will show up in the Ink Tank Configuration
window. If you remove a tank which has less than 100%, the system will store that value in the ink
tank explorer.
Close the top lid of the Multi Color Jet and then click on “OK”. Then the cover plate of the ink tanks
closes automatically (Cover plate of the color tanks only manipulates when the top lid is closed).
If you have some inks which you use very frequently (e.g. black), you might add a
second ink tank to have always enough ink for your production. The system can
handle it automatically.
Dispose empty ink tanks corresponding to local regulations.
When you click on “Remove ink tank”
the ink tank is deleted completely and the
fill level information is lost. So only press this button when you dispose an ink tank.
