Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 45 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com
Prepare and insert the new ink tank together with its dispenser at an empty position in your Multi
Color Jet manually.
If you remove an empty ink tank and add a new one with the same color, there is no
need to exchange the corresponding dispenser.

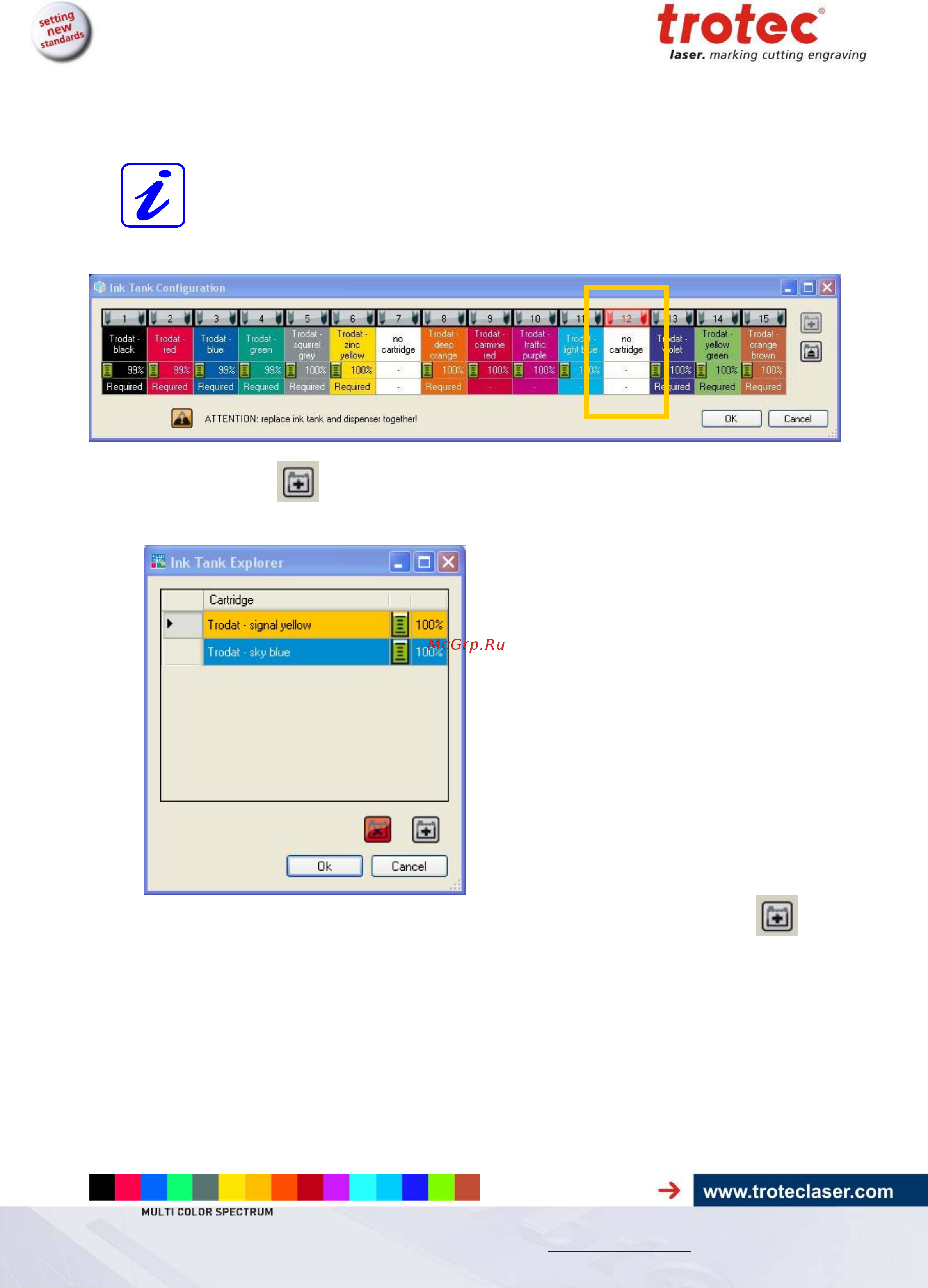

Select the according ink tank position in the software.
Click on “Insert ink tank”
in the Ink Tank Configuration window.
The Ink Tank Explorer shows up. You can see the tanks which where removed before.
If you added a completely new ink to the Multi Color Jet, click on the “Add new ink tank”
button in the Ink Tank Explorer.
A list of available inks shows up. Select the one you want and click on “Ok” or double click on the
desired ink. The new ink shows up in the Ink Tank Explorer.
