Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 44 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com
4.7 Ink Tank procedure
Each dispenser corresponds to a specific ink tank
If an ink tank is removed, remove the dispenser too and store it on the ink tank.
Additionally, remove the according color from the ink tank configuration in the software.

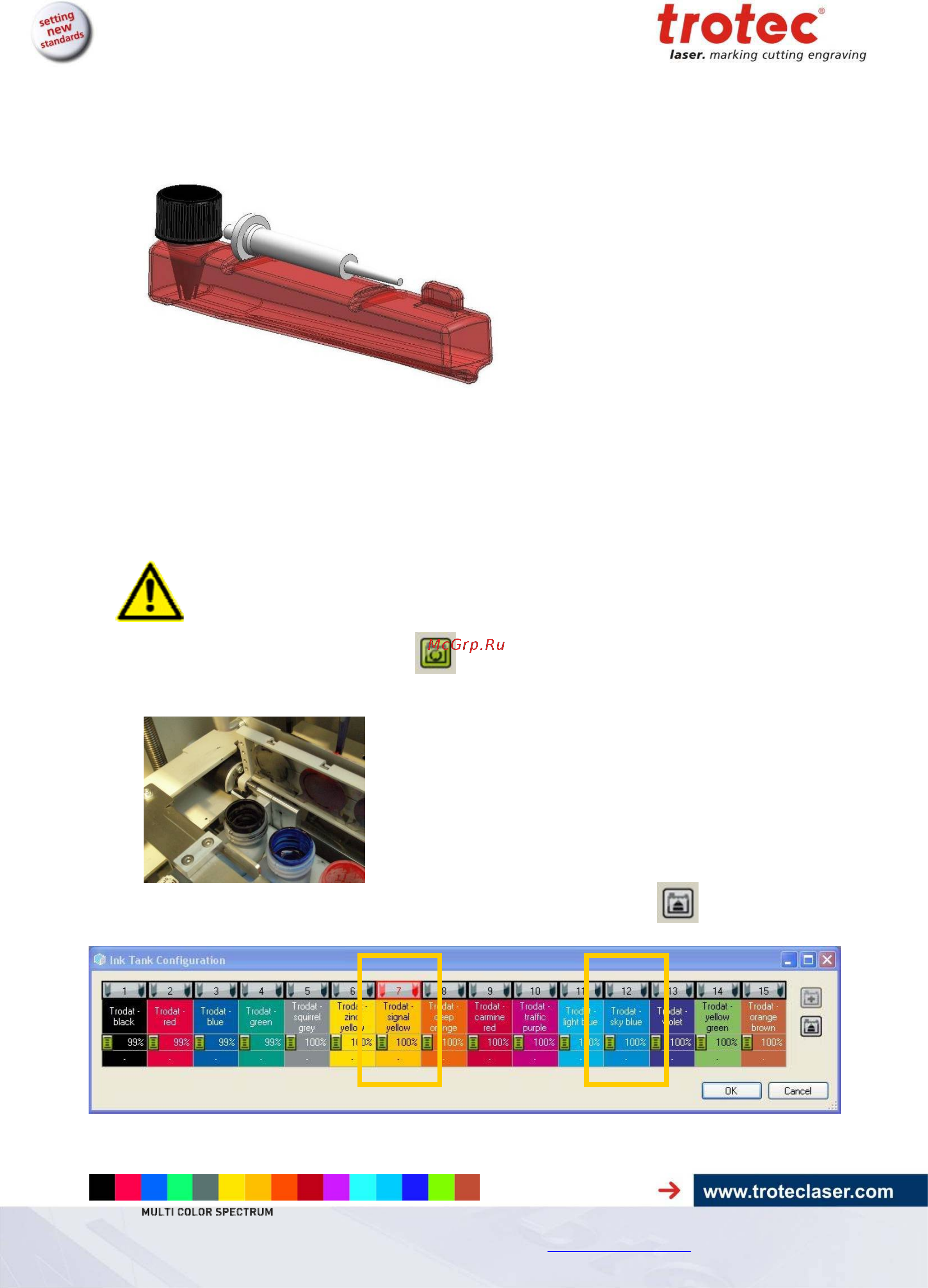

4.7.1 Exchange ink tanks
With this procedure you can (inter)change positions of colors or add new colors.
Attention: replace ink tank and dispenser together!
Never refill used tanks but always order new original Trodat Multi Color tanks.
Click on the “Ink tank configuration” button
or select “Options – Ink Tank configuration”.
The cover plate of ink tanks opens automatically (if the top lid of the Multi Color Jet is closed).
Select the tank you want to exchange (highlighted red) and click on “Eject”
, or double click
on the tank you want to exchange.
Remove the ink tank and dispenser from the Multi Color Jet manually.
