Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 30 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

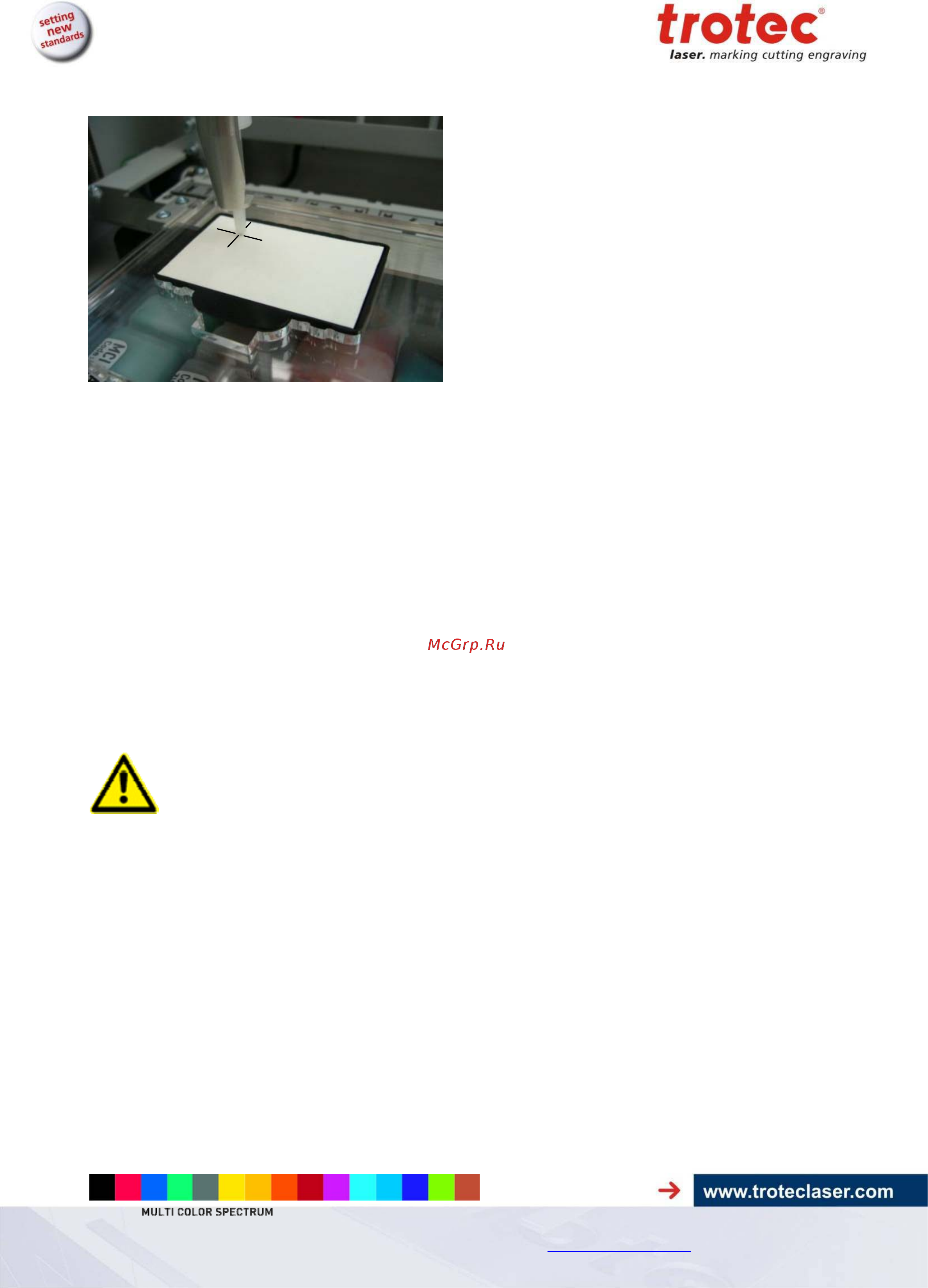

Position the dispenser above the burned mark created with the laser.
Move the table up until you nearly touch the pad to do fine adjustment with the z-up key.
After fine adjustment, move down the table of the Multi Color Jet with the z-down key.
Click “Next” in the software.
Multi Color Jet is starting an automatic move.
Unlock (move slider upwards) and remove the dispenser from the dispenser unit of the Multi Color
Jet. Put it back in its original place on the back of the machine.
Take the tray out of the Multi Color Jet.
Switch off the Multi Color Jet and laser.
Calibration is the only situation where you are allowed remove a dispenser
manually from the dispenser unit.
In any other circumstances you always have to use “
Manual Access” of the menu
“Options”!
