Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 26 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

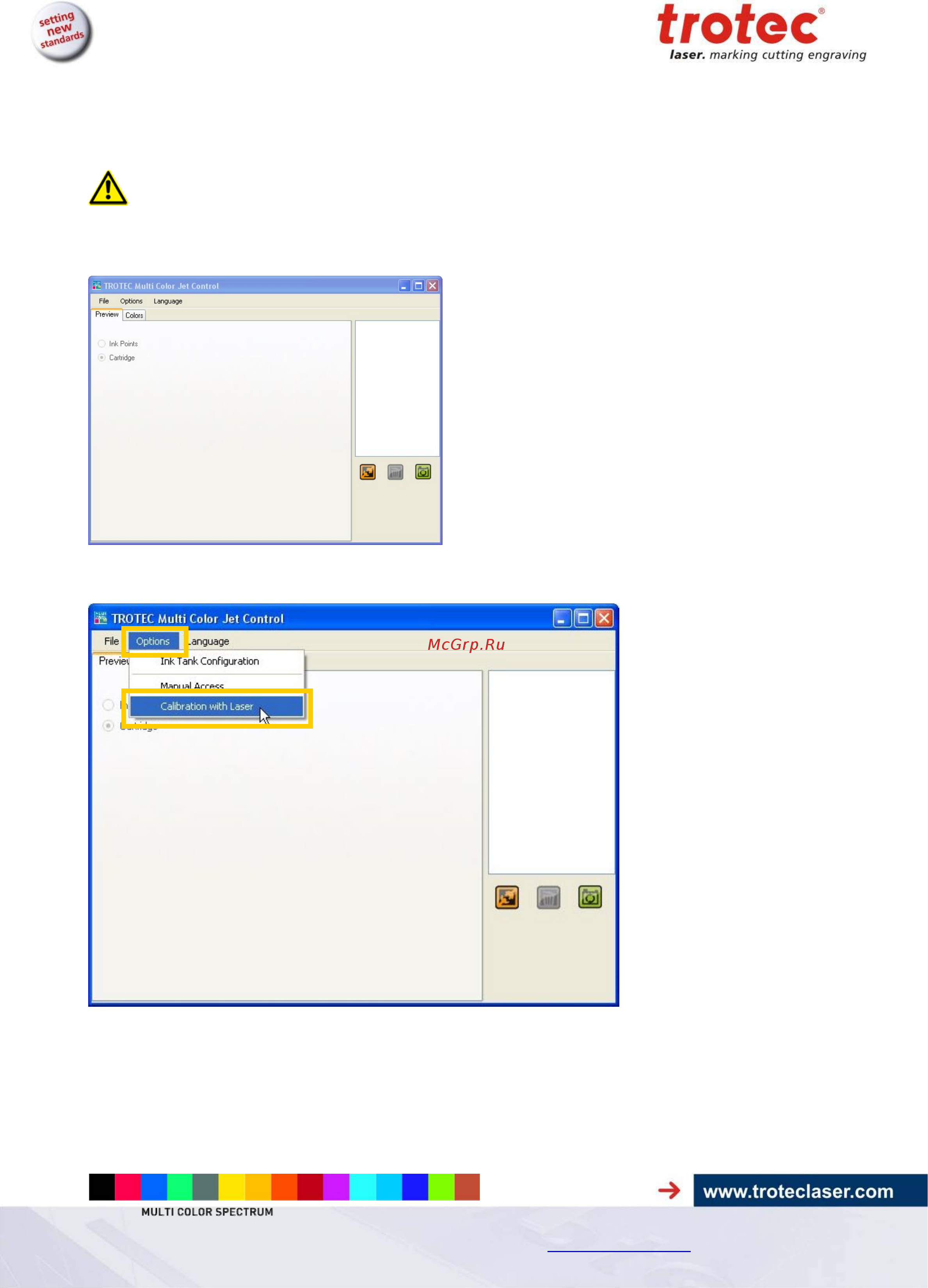

4.4.2 Calibrate Multi Color Jet to Laser
Reboot the PC.
Do NOT start the laser software!
Turn on the Laser and Multi Color Jet - wait for referencing of both.
Start TROTEC Multi Color Jet Software (MultiColorControl).
Select “Options – Calibration with Laser”.
Follow the instructions in the dialogue box of the software.
Click “OK” in the software to start connection of laser with PC.
