Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 25 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

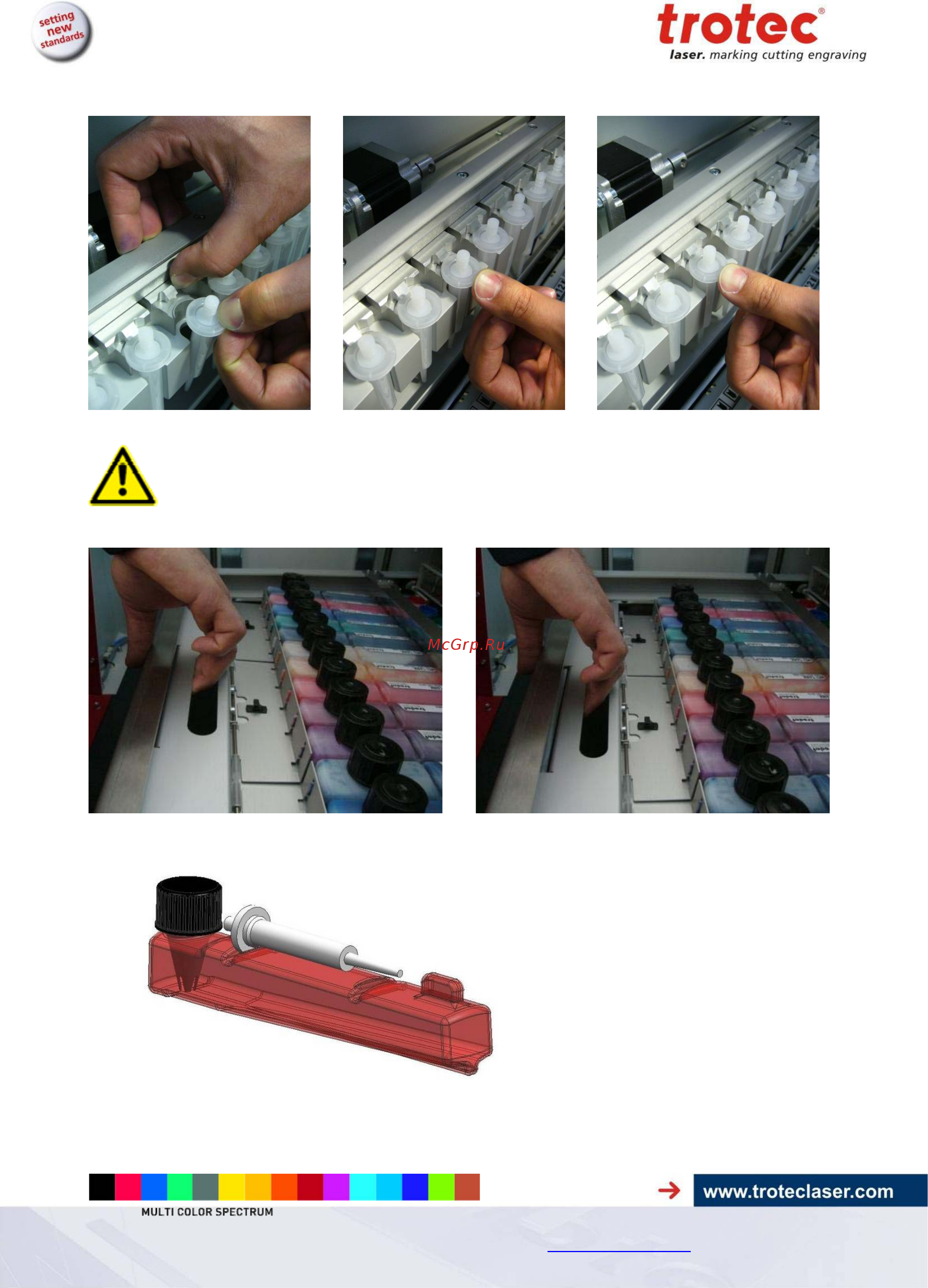

Insert all dispensers.
REMARK: Every day the ink tank plate has to be raised and lowered to keep the
colors/inks mixed. Additionally it is recommended to shake each tank separately each
week to avoid sedimentation of color particles/pigments.
Each Dispenser corresponds to a specific ink tank
If an ink tank is removed, remove the dispenser too and store it on the ink tank.
Additionally, remove the according color from the ink tank configuration in the software.
