Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 24 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

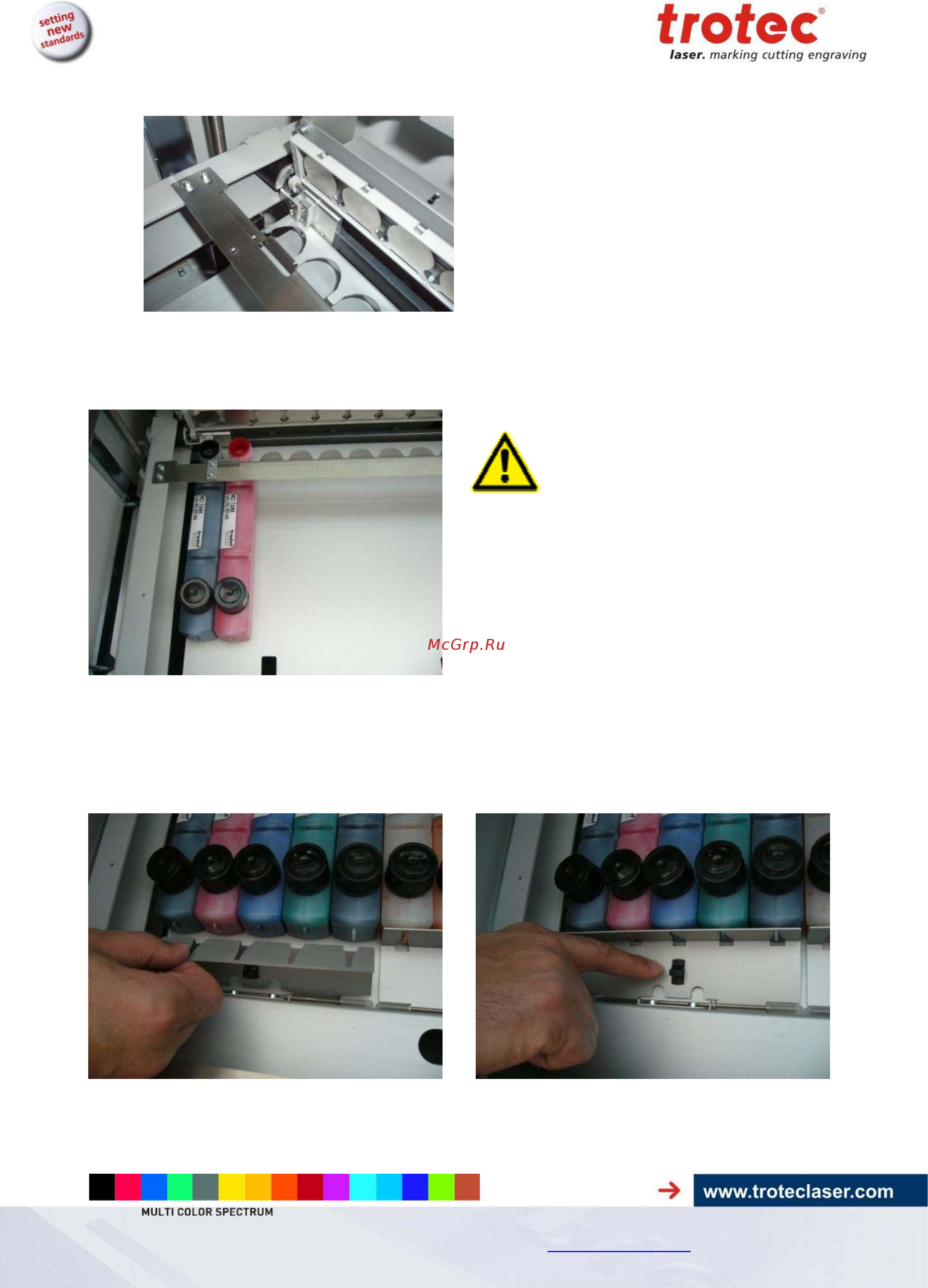

The cover plate of ink tanks opens automatically (if the top lid of the Multi Color Jet is closed).
Take the ink tanks and shake each one.
Remove the screw cap and put the tanks in place (put the screw cap on the nose of the tank).
Attention: Replace/insert
corresponding ink tank and
dispenser together.
It is recommended to insert all available ink tanks according to the position in the “Ink Tank
configuration” window. Alternatively you can change the position of tanks in the configuration
window to meet your needs. For details refer to section “4.7.1 Exchange ink tanks”.
After inserting the ink tanks, fix them with the metal plate with black clip and close the top lid.
Click “OK” in the “Ink tank configuration”.
The cover plate of ink tanks closes automatically (if the top lid of the Multi Color Jet is closed).
