Multi Color Jet
MAINTENANCE
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 56 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

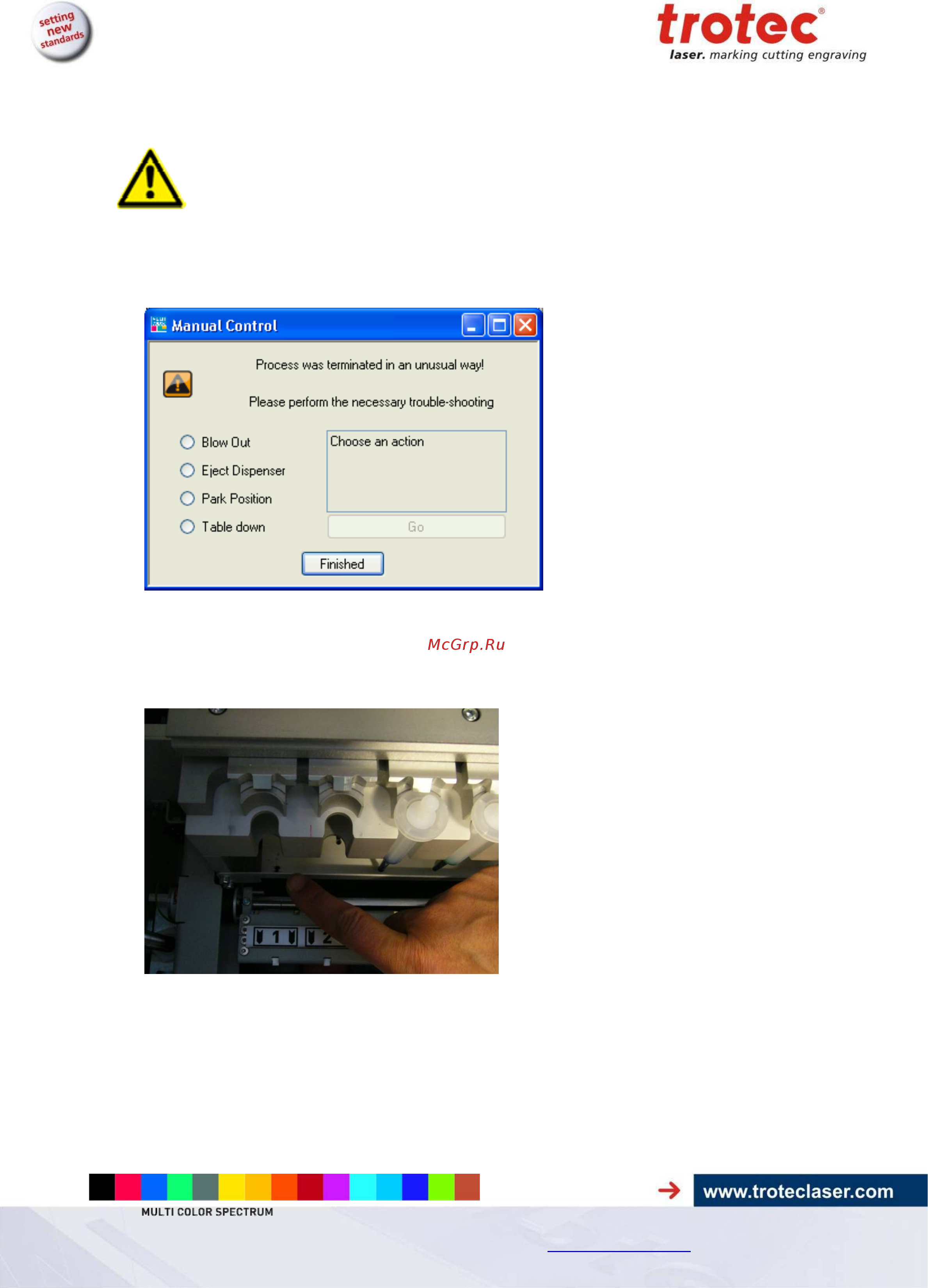

5.3 Cleaning the System
Before starting cleaning and maintenance work always switch off the device
and unplug the mains plug.
1. Move the table down to clean the interior. To move the table down, open Multi Color Jet
Control – Options and open “Manual Access”. Select “Table down” and click on “Go” while
the top lid is closed.
2. Make sure, that the device is switched off and unplugged. Open the top lid.
3. Thoroughly remove all loose dirt particles and color stains as good as possible in the
interior of the machine. Use a window cleaning agent and paper towels. Pay special
attention to the area below the dispensers.
