Multi Color Jet
BEFORE OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 16 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

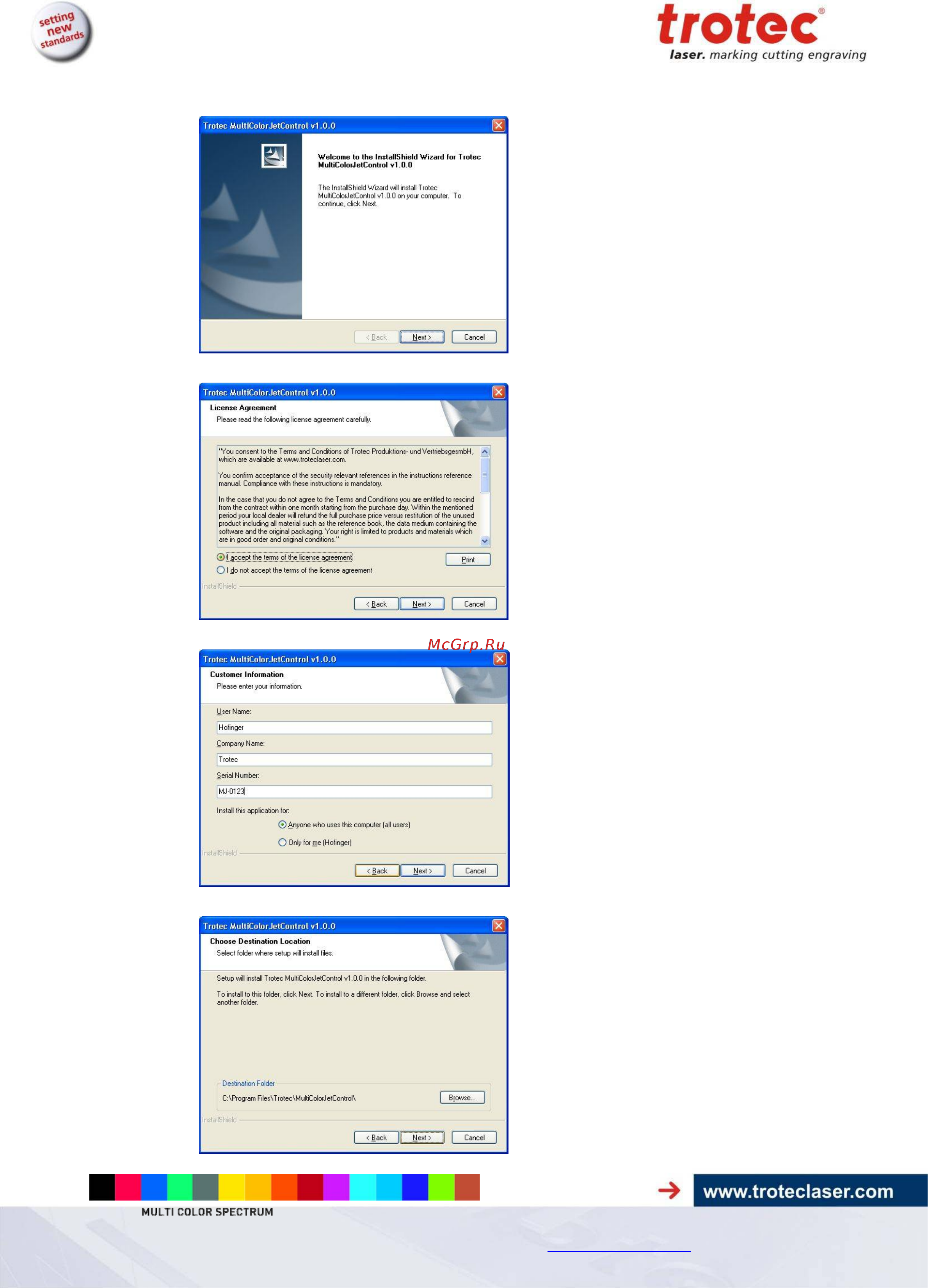

Install shield wizard is ready for installation. Click on “Next” to continue.
Accept the license agreement and click on “Next” to continue.
Enter the requested data. Click on “Next” to continue.
If desired, select a different destination folder. Click on “Next” to continue.
