Multi Color Jet
BEFORE OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 15 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

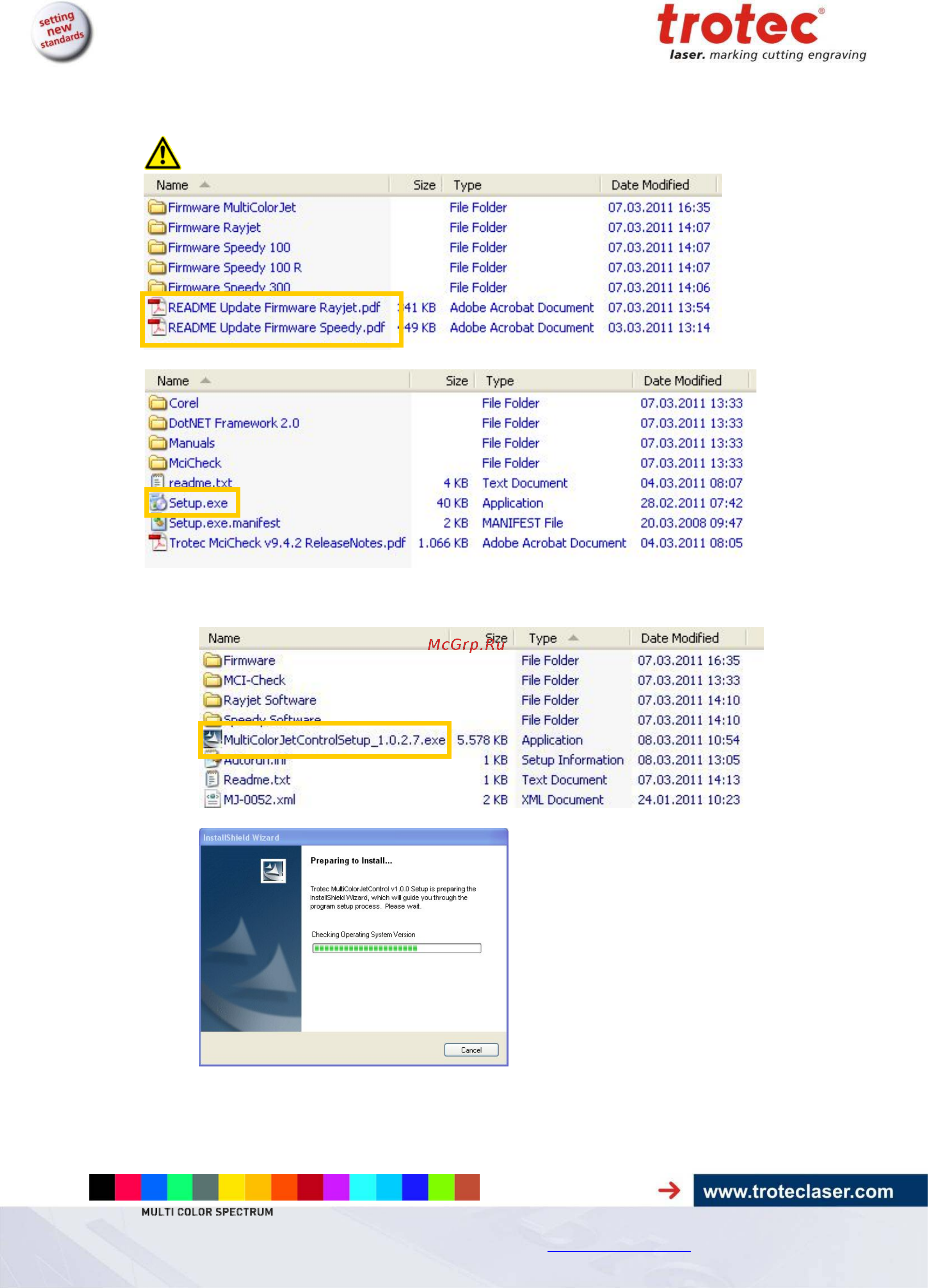

5. In case you install the Multi Color Jet with an existing laser system you additionally have to
update the firmware of the laser.
Read the “README” for information how to do a safe firmware update on your laser!
6. Open the folder “MCI-Check” and run the file “Setup.exe” to install/update MciCheck.
7. Run the MultiColorJetControl setup as described below.
Open the main DVD directory and double-click on “MultiColorJetControlSetup_x.x.x.exe”.
Installation is being prepared.
