TL-MR3020 Portable 3G/4G Wireless N Router

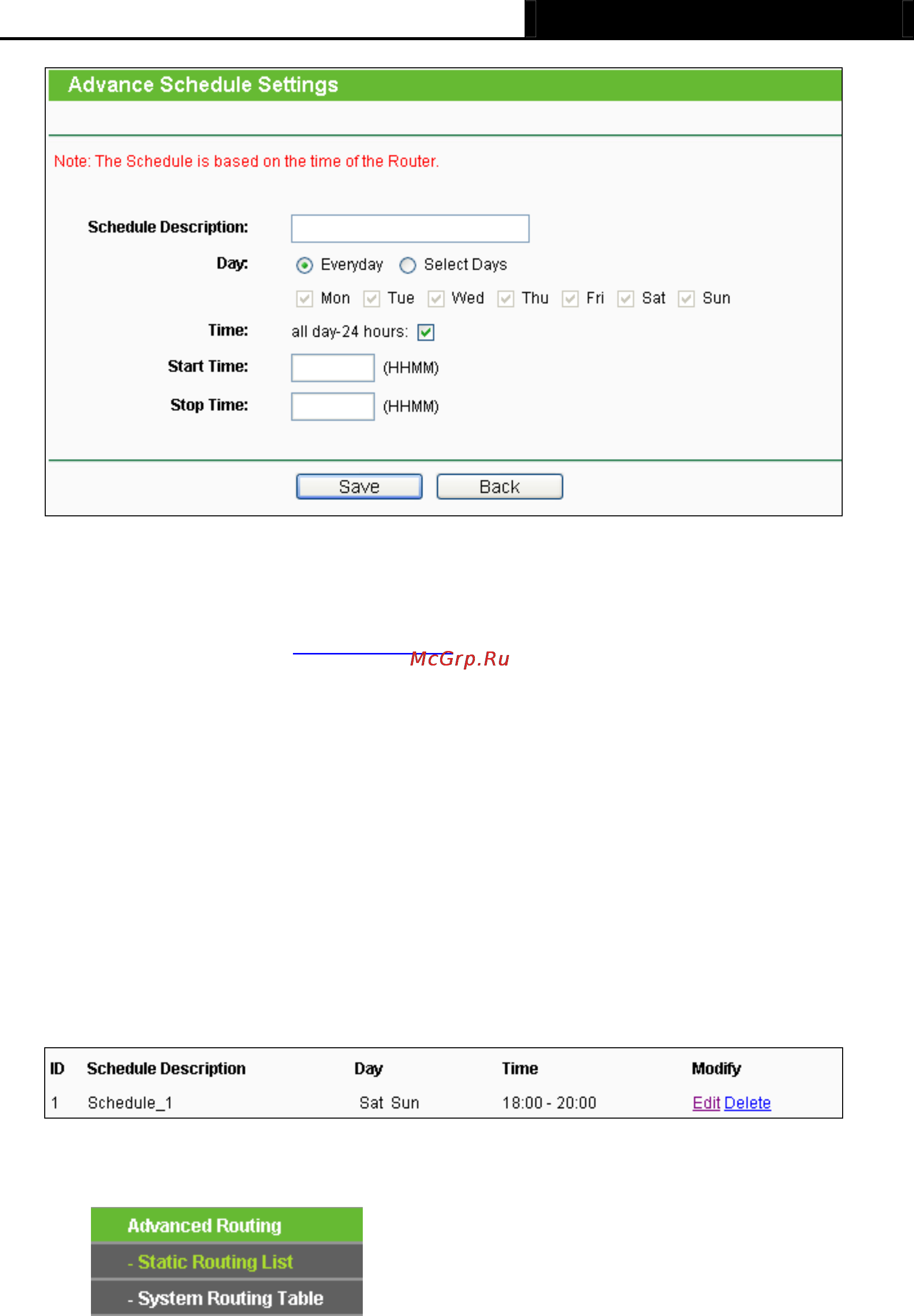

Figure 5-60 Advanced Schedule Settings

For example: If you desire to restrict the internet activities of host with MAC address

00-11-22-33-44-AA to access www.google.com

only from 18:00 to 20:00 on Saturday and

Sunday, you should first follow the settings below:

1. Click Add New... button shown in Figure 5-59 to enter the Advanced Schedule Settings

page.

2. In Schedule Descripti

on field, create a unique description for the schedule (e.g.

Schedule_1).

3. In Day field, check the Select Days radio button and then select Sat and Sun.

4. In Time field, enter 1800 in Start Time field and 2000 in Stop Time field.

5. Click Save to complete the settings.

Then you will go back to the Schedule Settings page and see the following list.

5.12 Advanced Routing

Figure 5-61 Advanced Routing

There are two submenus under the Advanced Routing menu as shown in Figure 5-61: Static

Routing List and System Routing Table. Click any of them, and you will be able to configure

the corresponding function.

-167-
