TL-MR3020 Portable 3G/4G Wireless N Router

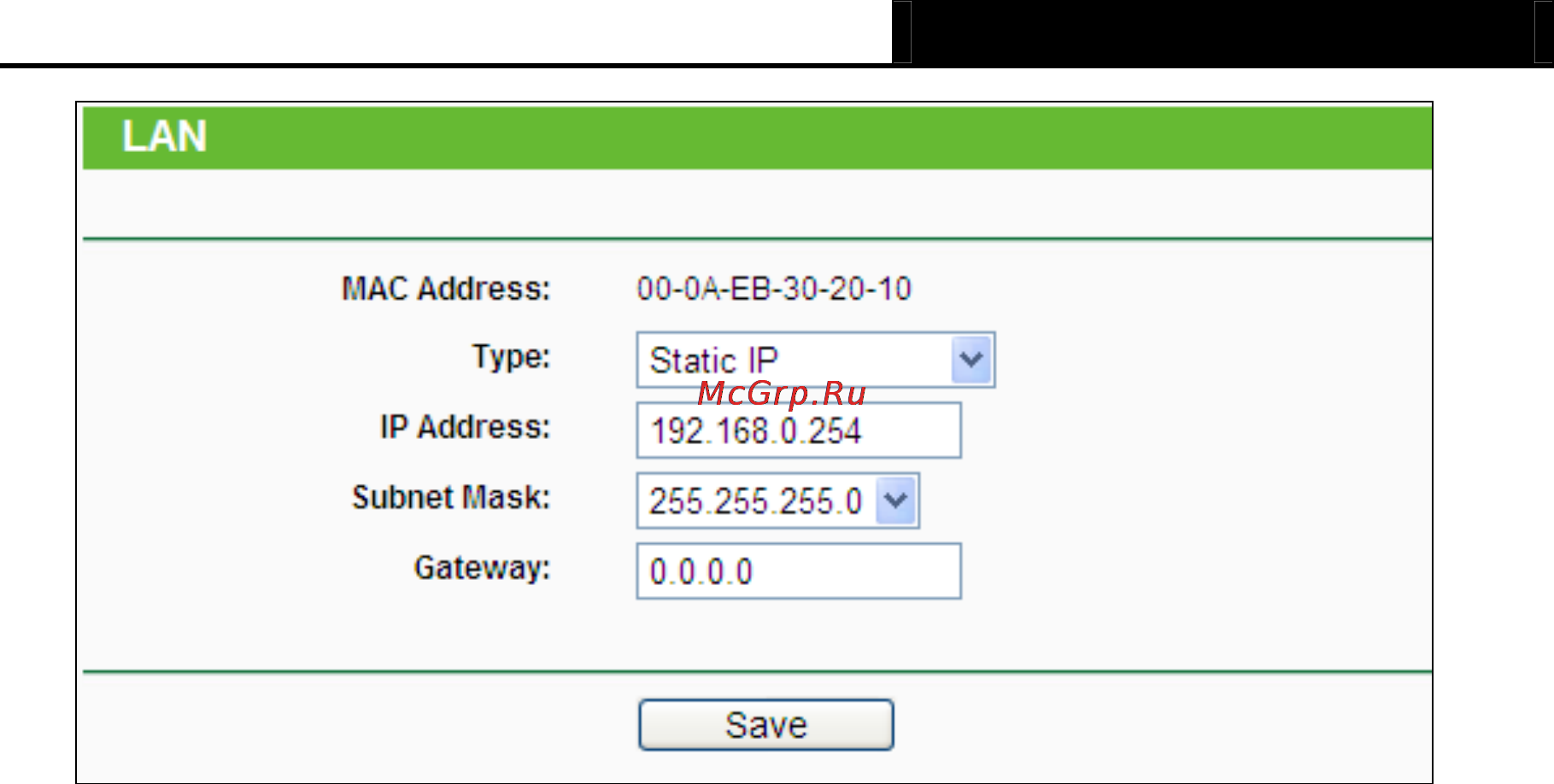

Figure 6-5 LAN

 MAC Address - The physical address of the AP. The value can't be changed.

 Type - Select Dynamic IP to get IP address from DHCP server or select Static IP to

re IP address manually from the drop-down list.

 Subnet Mask - An address code that determines the size of the network. Normally use

If you change the IP Address, you must use the new IP Address to log in the AP.

2) If the new LAN IP Address you set is not in the same subnet with the IP Address pool of

D ill not take effect until it is re-configured accordingly.

solution for your wireless network. Here you can create a wireless

local area network just through a few settings. Wireless Settings is used for the configuration of

secure your data and thus provide greater security for your wireless network. MAC filtering

allows you to control the access of wireless stations to the AP. Wireless Advanced allows you to

configure some advanced parameters for the AP. Throughput Monitor helps to watch wireless

throughput information Wireless statistics enables you to get detailed information about the

current connected wireless stations.

There are six submenus under the Wireless menu (shown in Figure 6-6): W

ireless Settings,

Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics.

configu

 IP Address - Enter the IP address of your AP in dotted-decimal notation (factory defau

setting is 192.168.0.254).

255.25

5.255.0 as the subnet mask.

 Gateway - The gateway should be in the same subnet as your IP address.



Note:

HCP sever, the IP Address pool w

6.6 Wireless

The Wireless option, improving functionality and performance for wireless network, can help

you make the AP an ideal

some basic parameters of the AP. Wireless Security provides three different security types
