TL-MR3020 Portable 3G/4G Wireless N Router
F
Log Type - By selecting the log type, only logs of this type will be shown.
Click to save all the logs in a txt file.
og - All the logs will be deleted from the Router permanently, not just from the
lick the Previous button to return to the
ools → Working Mode”, and you can view the working mode of the

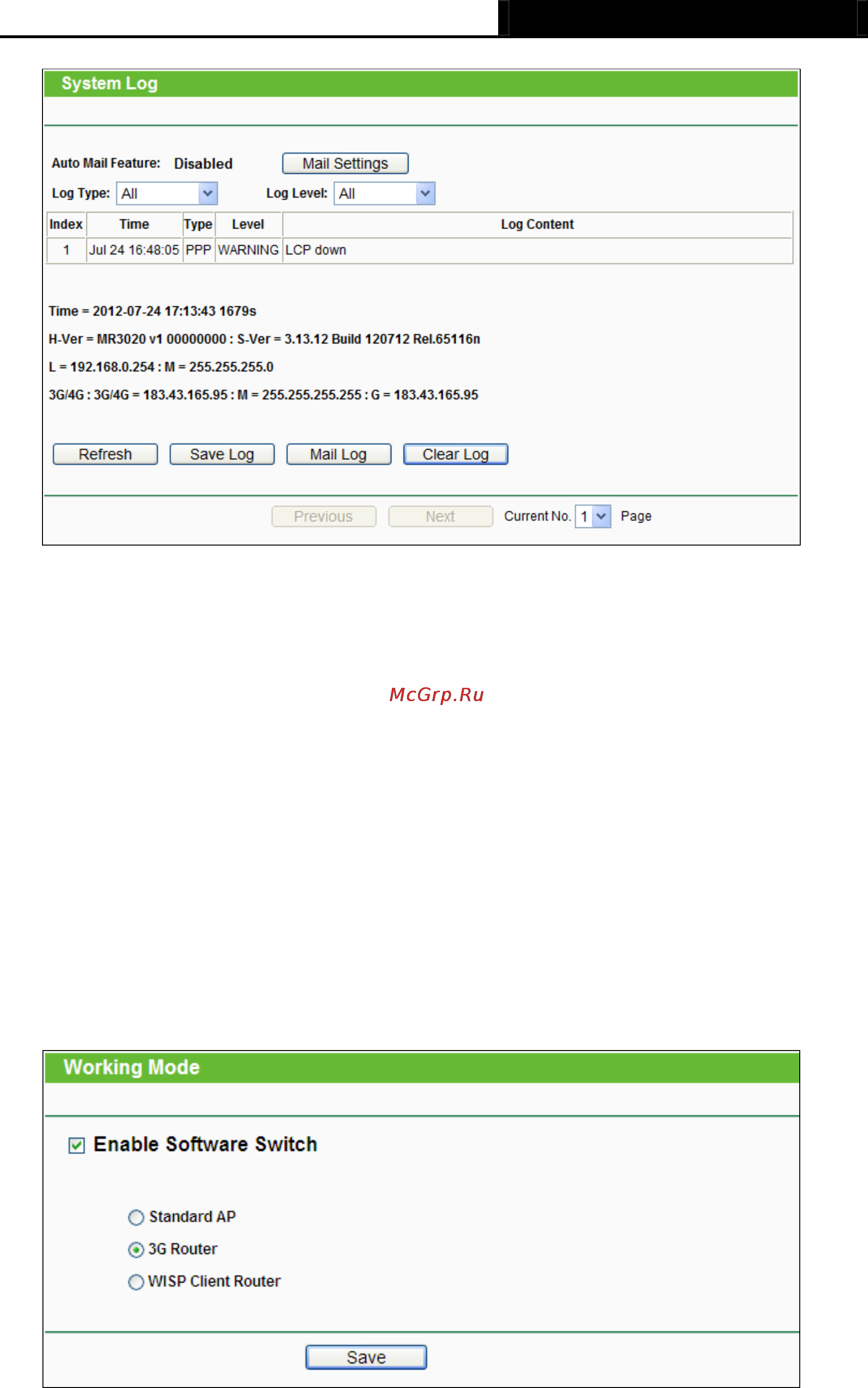

igure 6-33 System Log
Log Level - By selecting the log level, only logs of this level will be shown.
Refresh - Refresh the page to show the latest log list.
Save Log -
Clear L
page.
Click the Next button to go to the next page, or c
previous page.
6.8.9 Working Mode
Choose menu “System T
Router.
Figure 6-34 Working Mode
-230-
