TL-MR3020 Portable 3G/4G Wireless N Router
management and allows new wireless devices to receive IP addresses automatically without
the need to manually assign new IP addresses.
There are three submenus under the DHCP menu (shown as Figure 6-19): DHCP
Settings,
ss Reservation. Clicking any of them will enable you to DHCP Clients List and Addre
configure the corresponding function. The detailed explanations for each submenu are provided
below.

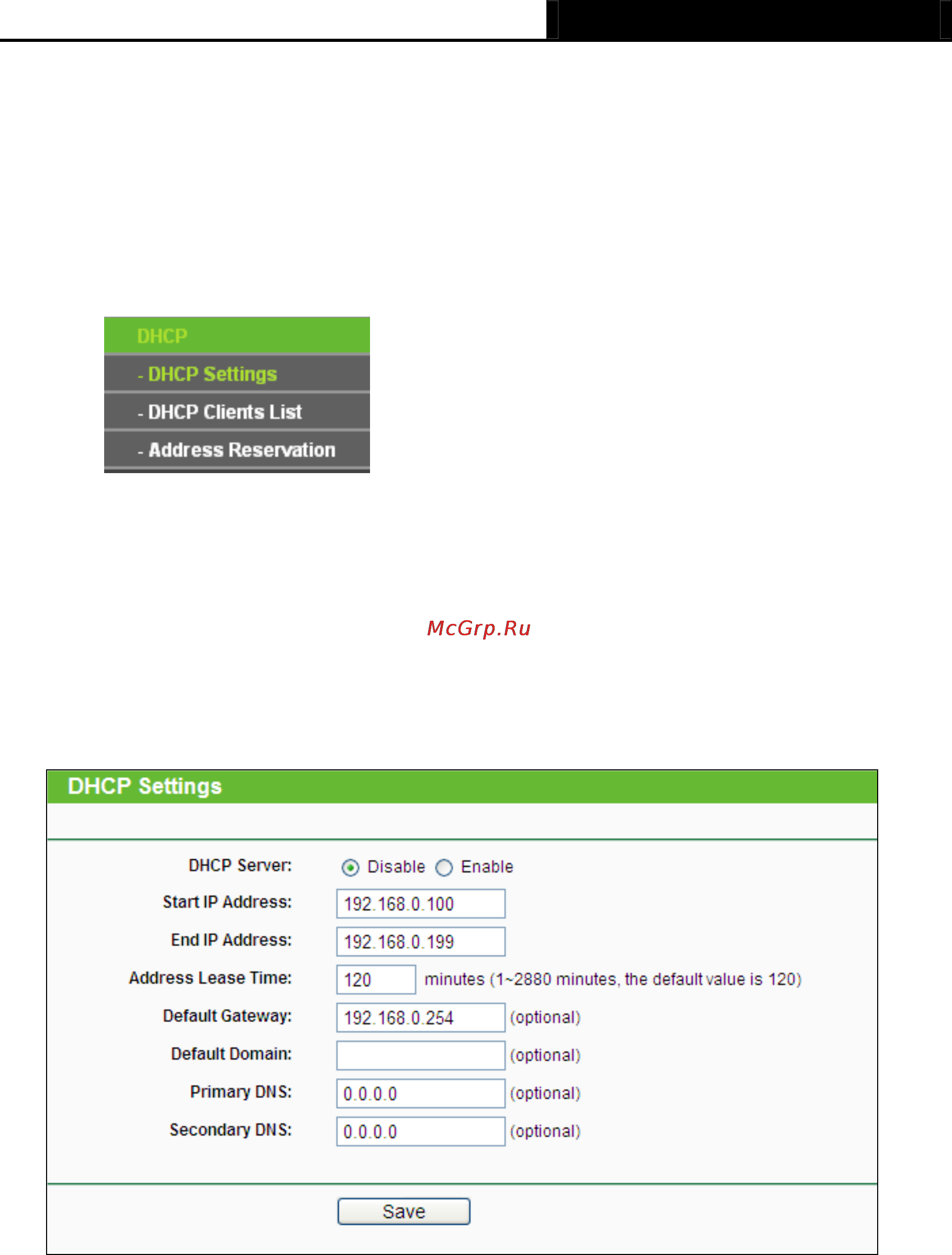

Figure 6-19 The DHCP menu
6.7.1 DHCP Settings
Selecting DHCP > DHCP Settings will enable you to set up the AP as a DHCP (Dynamic Host
Configuration Protocol) server, which provides the TCP/IP configuration for all the PCs that are
connected to the system on the LAN. The DHCP Server can be configured on the page (shown
as Figure 6-20):
Figure 6-20 DHCP Settings
able/Enable will disable/enable the
DHCP server on your AP. The default setting is Disable. If you disable the Server, you must
er DHCP server within your network or else you must manually configure the
computer.
DHCP Server - Selecting the radio button before Dis
have anoth
Start IP Address - This field specifies the first address in the IP Address pool.
192.168.0.100 is the default start IP address.
-219-
