TL-MR3020 Portable 3G/4G Wireless N Router
Enable AP Isolation - Isolates all connected wireless stations so that wireless stations
Selecting Wireless > Wireless Statistics will allow you to see the wireless transmission
information in the following screen shown in Figure 6-18.
cannot access each other through WLAN. This function will be disabled if WDS/Bridge is
enabled.
6.6.5 Wireless Statistics

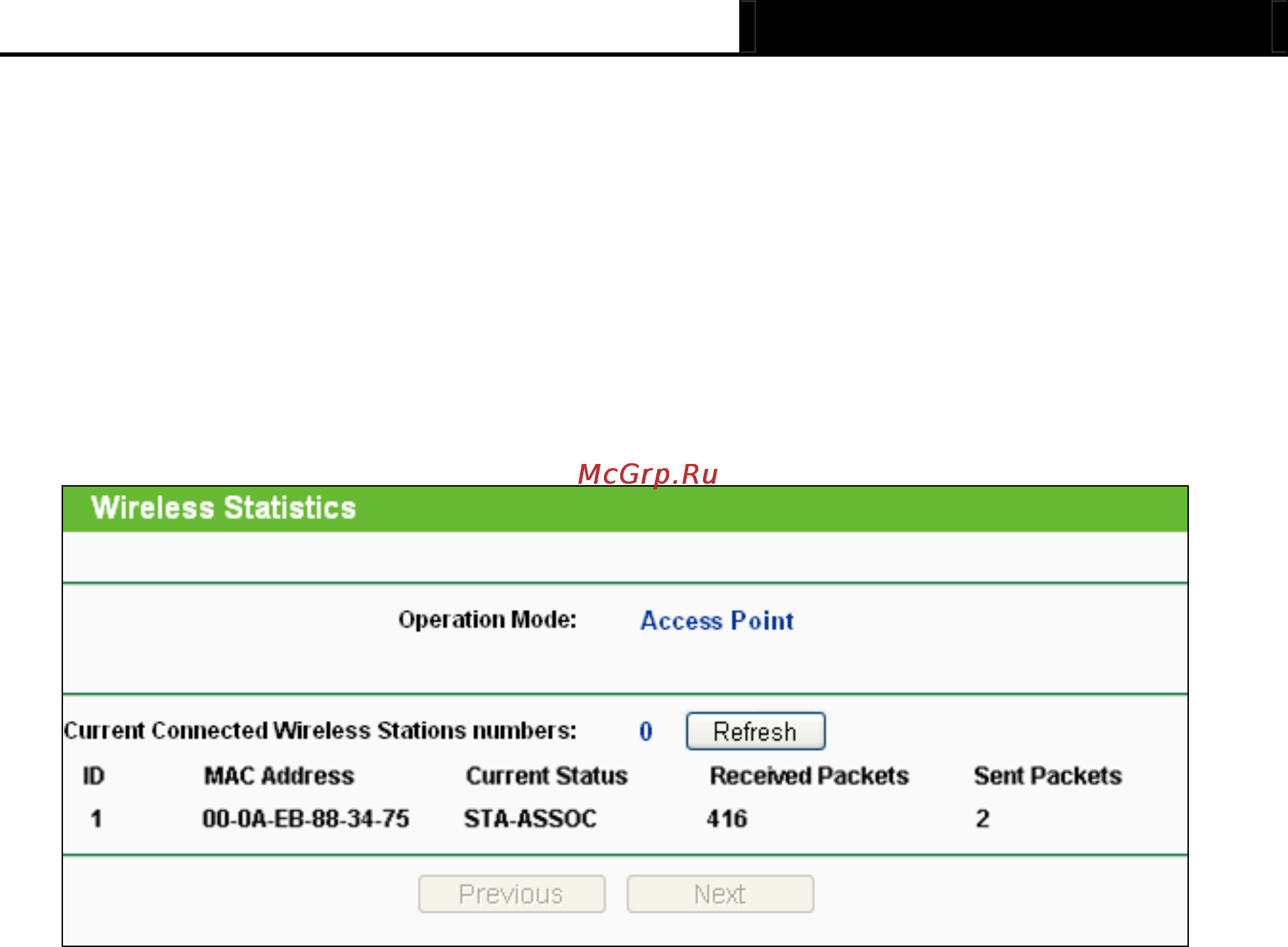

Figure 6-18 Statistics of the device attached wireless stations
Operation Mode - Shows the current operation mode. If Multi-SSID is selected, all
A-AUTH /
/
ected wireless stations go beyond one page, click the Next button to go
guration Protocol.
The DHCP Server will automatically
assign dynamic IP addresses to the computers on the network. This protocol simplifies network
connected wireless st
ations will be shown here
MAC Address - Shows the connected wireless station's MAC address
Current Status - The connected wireless station's running status, one of ST
STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN
Disconnected
Received Packets - packets received by the station
Sent Packets - packets sent by the station
You cannot change any of the values on this page. To update this page and to show the current
connected wireless stations, click the Refresh button.
If the numbers of conn
to the next page and click the Previous button to return the previous page.
Note:
This page will be refreshed automatically every 5 seconds.
6.7 DHCP
DHCP stands for Dynamic Host Confi
-218-
