TL-MR3020 Portable 3G/4G Wireless N Router

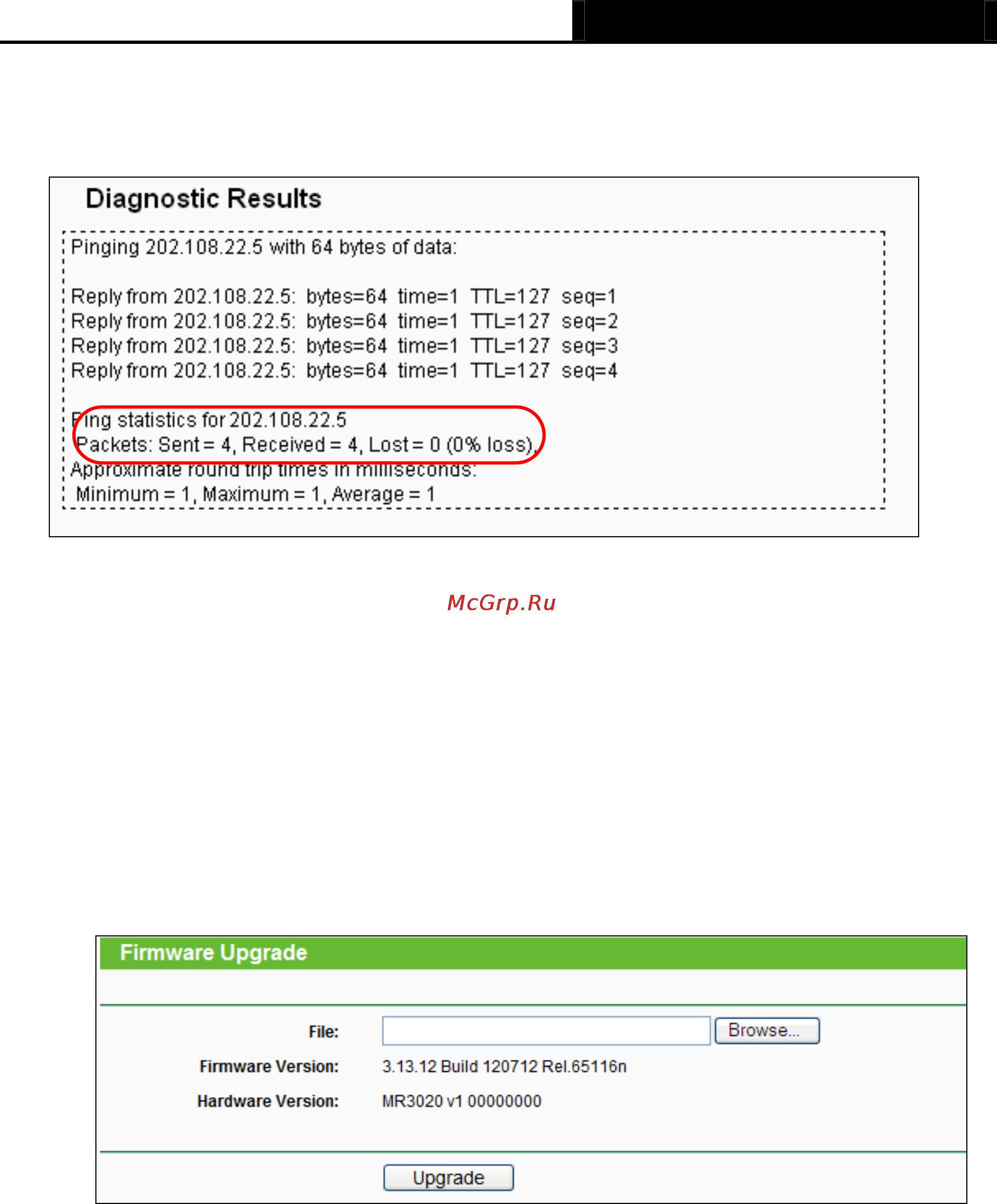

The Diagnostic Results page displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.
Figure
6-27 Diagnostic Results
Note:
1) Only one user can use the diagnostic tools at one time.
2) "Ping Count", "Ping Packet Size" and "Ping Timeout" are Ping Parameters, and
"Traceroute Max TTL" is Traceroute Parameter.
6.8.3 Firmware Upgrade
date the latest Choose menu “System Tools → Firmware Upgrade”, and then you can up
version of firmware for the Router on the following screen.
Figure 6-28 Firmware Upgrade
Firmware Version - Displays the current firmware version.
upgrade file must accord with the Router’s current hardware version.
To upgrade the Router's firmware, follow these instructions below:
er into the
en finished.
Hardware Version - Displays the current hardware version. The hardware version of the
1. Download a most recent firmware upgrade file from our website (www.tp-link.com).
2. Enter or select the path name where you save the downloaded file on the comput
File Name blank.
3. Click the Upgrade button.
4. The Router will reboot while the upgrading has be
-226-
