Tp-Link TL-MR3020 [188/258] System tools
![Tp-Link TL-MR3020 [188/258] System tools](/views2/1041988/page188/bgbc.png)
TL-MR3020 Portable 3G/4G Wireless N Router

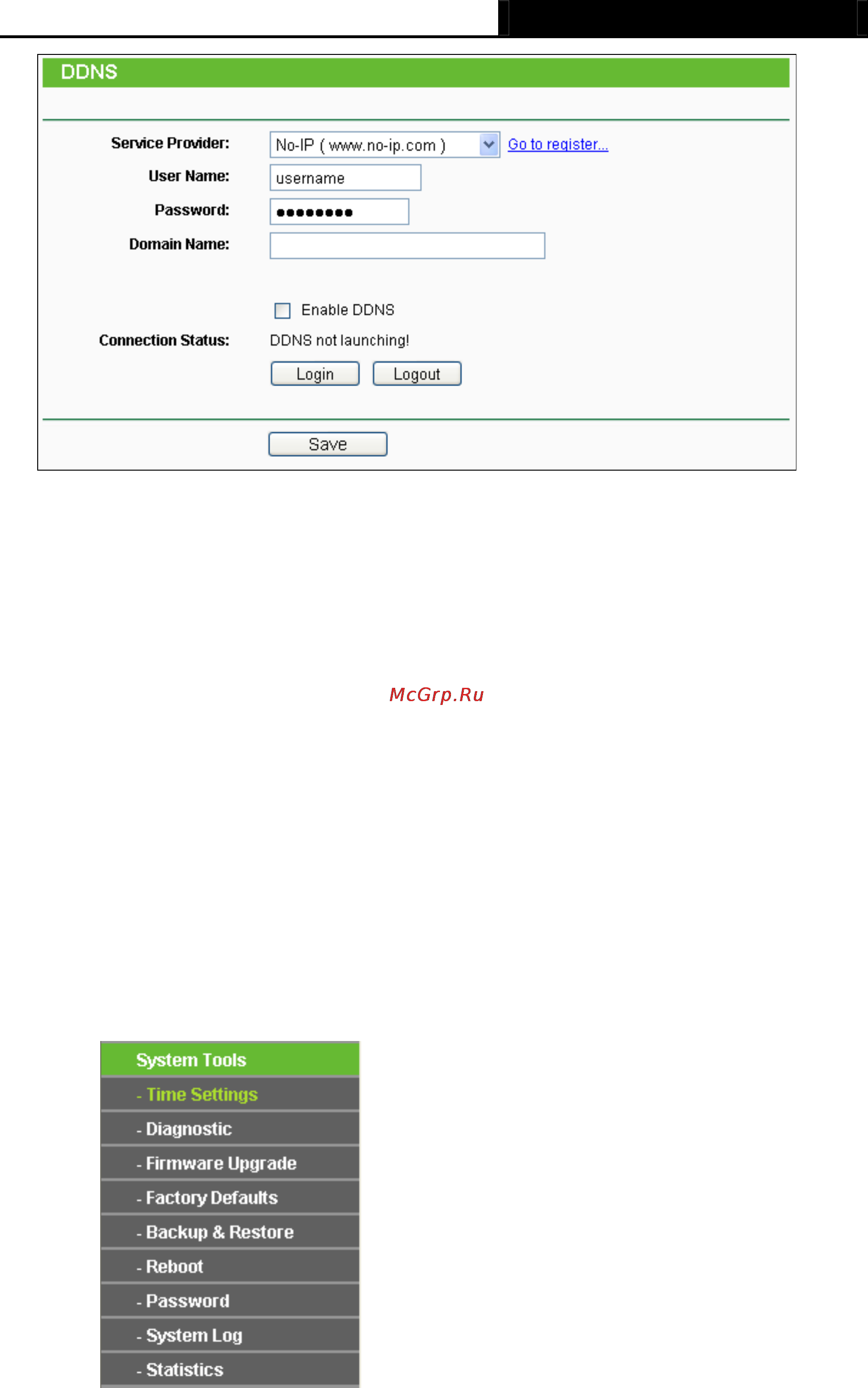

Figure 5-76 No-ip.com DDNS Settings
To set up for DDNS, follow these instructions:
1. Enter the User Name for your DDNS account.
amic DNS service provider.
Connection Status - The status of the DDNS service connection is displayed here.
Click Logout to log out the DDNS service.
Note:
to login again with another account after a successful login, please click the
5.16 System Tools
2. Enter
the Password for your DDNS account.
3. Enter the Domain Name you received from dyn
4. Click the Login button to login to the DDNS service.
If you want
Logout button, then inpu
t your new username and password and click the Login button.
Figure 5-77 The System Tools menu
-177-
