TL-MR3020 Portable 3G/4G Wireless N Router
The
If the result is similar to the following screen, the connectivity of the Internet is fine.
Diagnostic Results page displays the result of diagnosis.

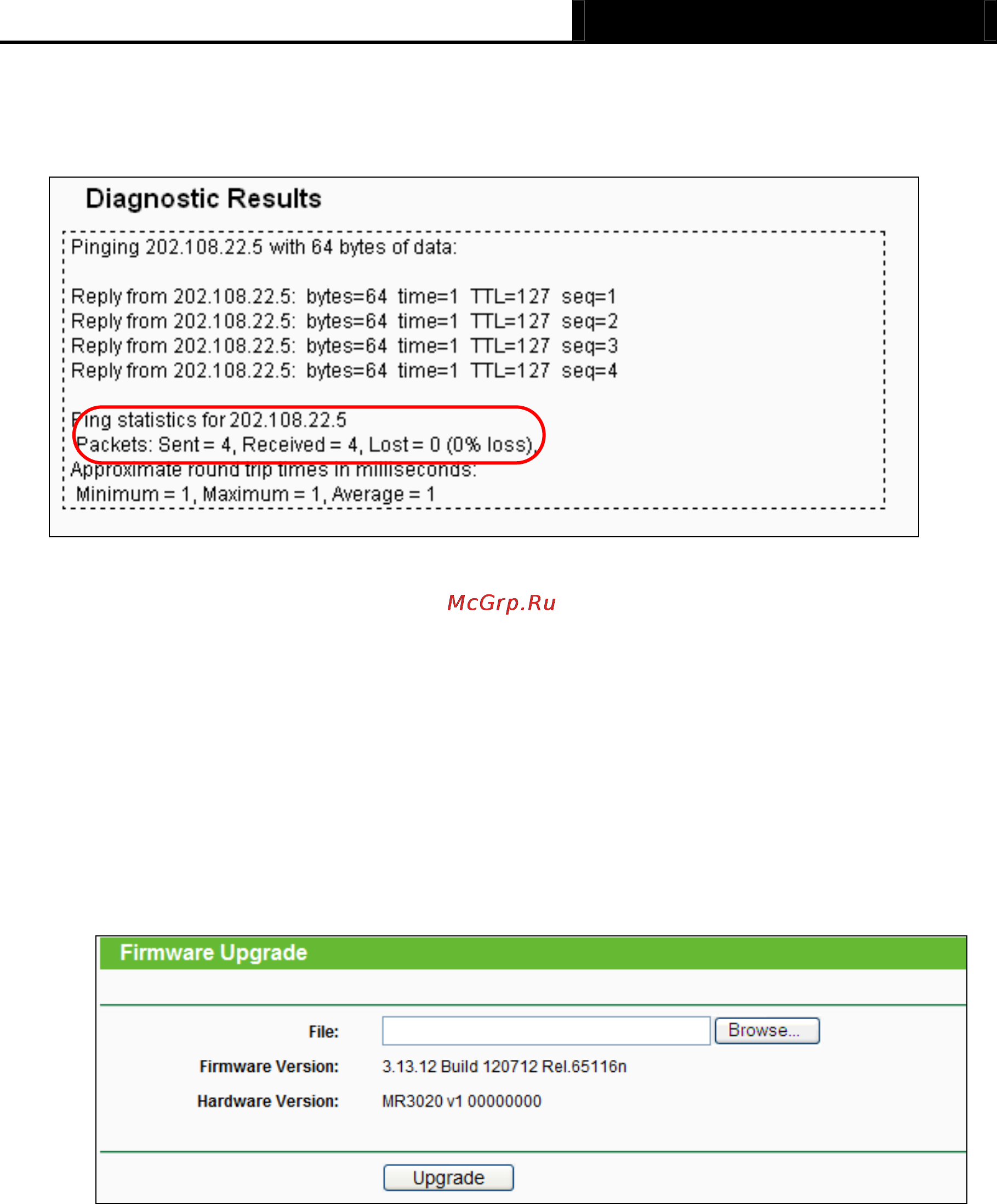

Figure 5-81 Diagnostic Results
Note:
1) Only one user can use the diagnostic tools at one time.
2) "Ping Count", "Ping Packet Size" and "Ping Timeout" are Ping Parameters, and
"Traceroute Max TTL" is Traceroute Parameter.
5.16.3 Firmware Upgrade
Choose men ”, and then you can update the latest
screen.
u “System Tools → Firmware Upgrade
version of firmware for the Router on the following
Figure 5-82 Firmware Upgrade
version.
ware version.
To upgrade the Router's firmware, follow these instructions below:
1. Download a most recent firmware upgrade file from our website (www.tp-link.com).
2. Enter or select the path name where you save the downloaded file on the computer into the
File Name blank.
3. Click the Upgrade button.
4. The Router will reboot while the upgrading has been finished.
Firmware Version - Displays the current firmware
Hardware Version - Displays the current hardware version. The hardware version of the
upgrade file must accord with the Router’s current hard
-181-
