TL-MR3020 Portable 3G/4G Wireless N Router
App Description -The description provided by the application in the UPnP request
External Port - External port, which the router opened for the application.
Protocol - Shows which type of protocol is opened.
Internal Port - Internal port, which the router opened for local host.
IP Address - The UPnP device that is currently accessing the router.
Status - The port’s status displayed here. “Enabled” means that port is still active.
Otherwise, the port is inactive.
Click Refresh to update the Current UPnP Settings List.
4.9 Security

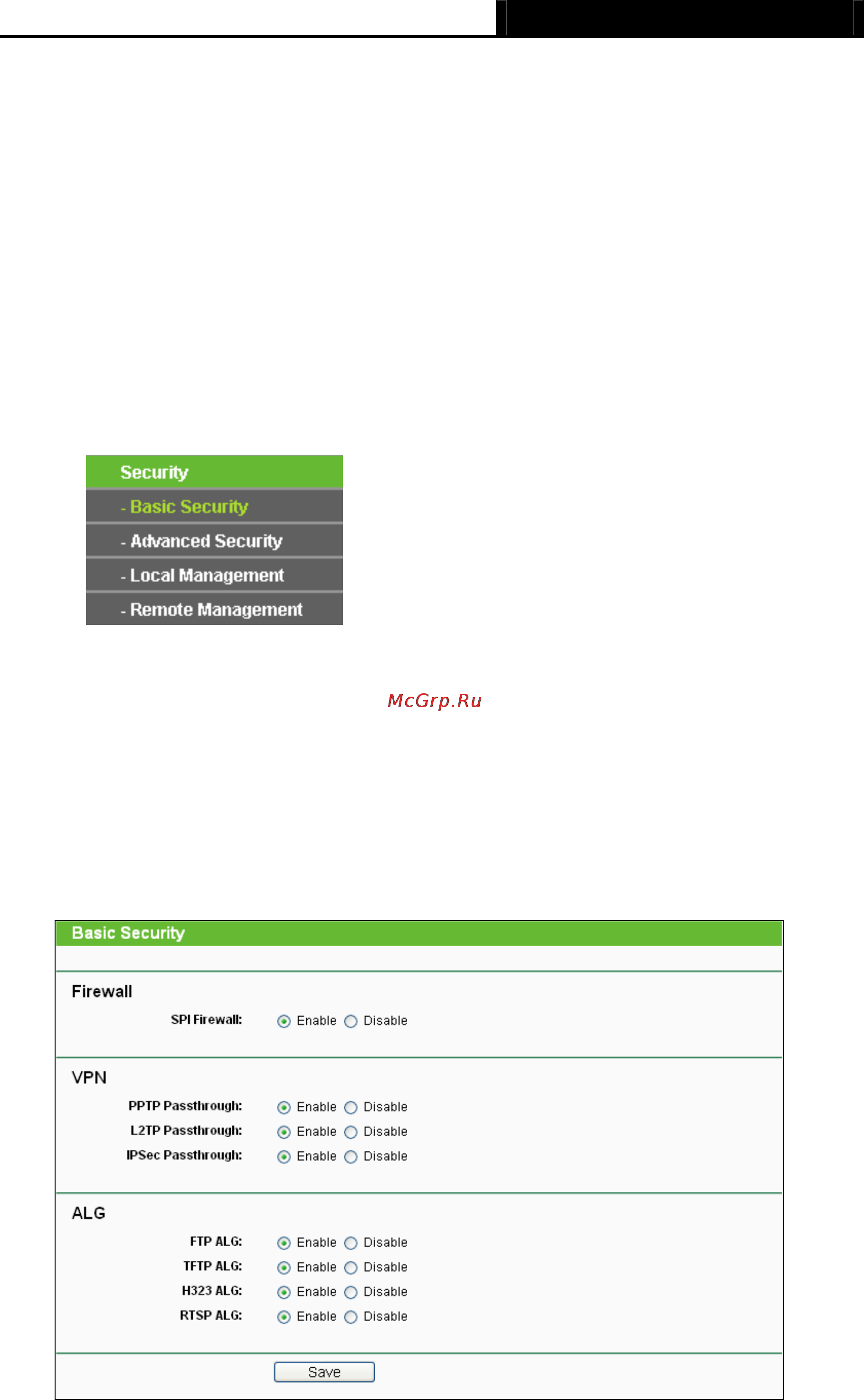

Figure 4-44 The Security menu
There are four submenus under the Security menu as shown in Figure 4-44: Basic Securit
y,
Advanced Security, Local Management and Remote Management. Click any of them, and
you will be able to configure the corresponding function.
4.9.1 Basic Security
Choose menu “Security → Basic Security”, you can configure the basic security in the
screen as shown in Figure 4-45.
Figure 4-45 Basic Security
-71-
