TL-MR3020 Portable 3G/4G Wireless N Router

 Max Tx Rate - Specifies the maximum transmit rate of the device through this field.

 Enable Wireless Radio - Select or deselect this check box to allow or deny wireless

stations to access the device.

Click the Survey button to detect the SSIDs in the local area.



Note:

To apply any settings you have altered on the page, please click the Save button, and then you

will be reminded to reboot the device.

4) Bridge with AP: This mode can bridge the AP and up to 4 APs also in bridge mode to

connect two or more wired LANs.

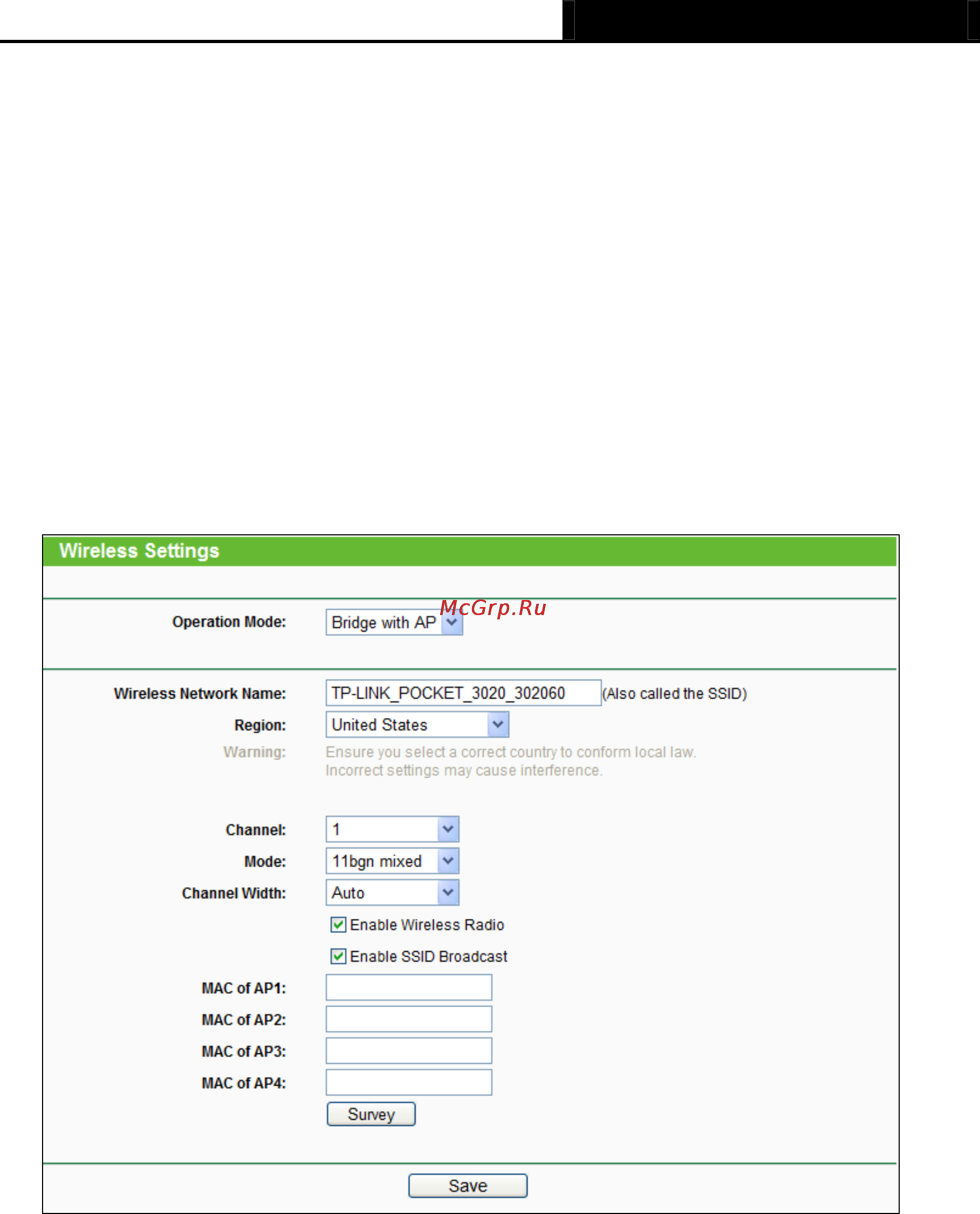

Figure 6-10 Wireless Settings in Bridge with AP mode

 Wireless Network Name (also called SSID) - Identifies your wireless network name. Create

a name up to 32 characters and make s s points in the wireless network with the

same SSID. The default SSID is TP-LINK_POCKET_3020_XXXXXX (XXXXXX indicates the

six characters of each device’s MAC address). This value is case-sensitive. For

 - Select your region from the pull-down list. This field specifies the region where

other than one of those specified in this field. If your

ure all wireles

last unique

example, TEST is NOT the same as test.

Region

the wireless function of the device c

an be used. It may be illegal to use the wireless

function of the device in a region

-204-
