DGS-6600 Series Switch m xconnect
CLI Reference Guide
1072
V
xconnect
Use the xconnect command to enable the VPWS service on the interface. Use
the no form of this command to cancel VPWS service.
xconnect VC-ID IP-ADDRESS encapsulation mpls [{raw | tagged}]
no xconnect
Default No VPWS on interface.
Command Mode Interface configuration mode.
(Ethernet interface or Ethernet VLAN interface, without port-channel interface).
Usage Guideline This command can be used to create a port-based or port VLAN-based VPWS
service. A local AC could be an Ethernet-based AC which is created in an
Ethernet interface or an Ethernet VLAN AC which is created in an Ethernet VLAN
interface. All local ACs in a VPWS should have the same AC type. The interface
that is specified is used as an AC cannot be a Layer 3 interface.
Example The follows example shows how to configure a VPWS. (Raw Mode)
The AC from CE (Customer Edge Bridge) to PE is the VLAN 10 of port 1.
Assume the MPLS interfaces of PEs are VLAN 20 and the VC-ID is 2. For
untagged packets from CE one can be transmitted to the other end through the
MPLS network, user shall configure PE1 and PE2 as follows:
Syntax Description
VC-ID Specifies the PW (Psuedo-wire) service instance ID. It is used to uniquely
identify the VPWS (Virtual Private Wire Service) and it must be unique at both
PEs (provider Edge). The range is 1-4294967295.
IP-ADDRESS Specifies the peer LSR ID that is used to identify the other end PE. Suggest the
peer LSR ID is equal to loopback interface IP address.
raw (Optional) Specifies the PW type is Ethernet-raw mode. For this type, s-tags are
never sent over the PW. By default, the PW type is Ethernet-raw mode.
tagged Specifies the PW type is Ethernet-tag mode. For this type, s-tags shall be sent
over the PW.

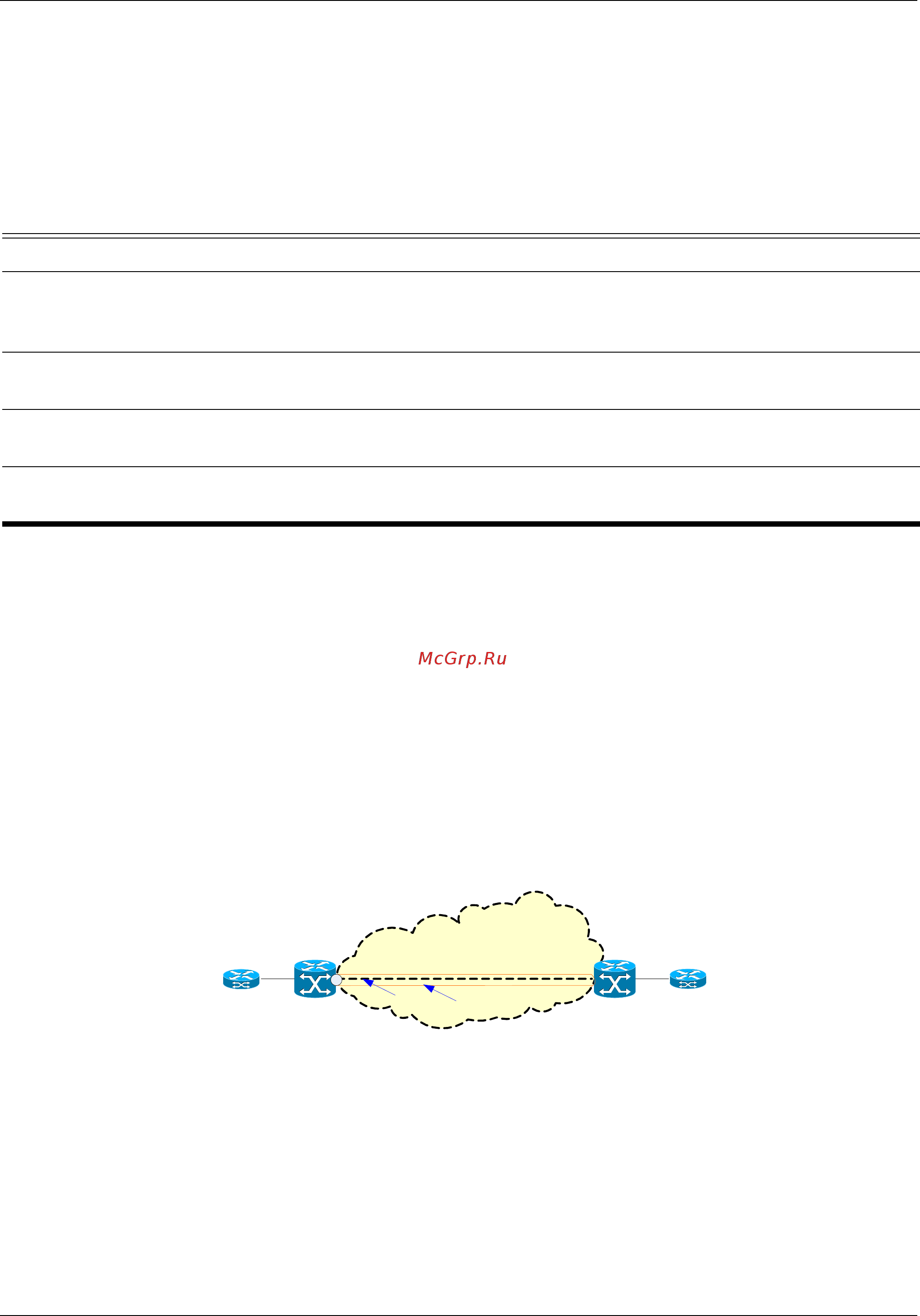

PE2
Loopback: 130.1.1.2/32
MPLS Network
PE1
CE1
CE2
AC:
Eth1.1, VLAN10
AC:
Eth1.1, VLAN10
PW
MPLS tunnel
Loopback: 130.1.1.1/32
