– 15 –
CAUTION:
●When performing this inspection, ensure that other components of the endoscope
(distal end, control body, etc.) are not damaged by impact to surfaces or objects in
the area.
●Do NOT adjust the bending section of the endoscope as part of this inspection.
Maintain the distal end in a straight orientation.
●Hold the Insertion Tube at the junction of the Insertion Tube and bending section,
●Do not close your hand around the bending section.
NOTE:
●The distal end of the endoscope as well as the electrical contacts/pins on the PVE
connector must be protected against damage from impact. Never apply excess
forcesuchastwistingorseverebendingtotheexibleportionoftheendoscope.
●As indicated elsewhere in PENTAX product labelling, endoscopes particularly the
quality of the endoscopic image should be checked prior to patient use.
●During pre-use inspection, ensure that the distal objective lens and the illumination
cover glass are clean and no residues are present on these distal surfaces. If
not, crisp images can NOT be displayed. Wipe them with a gauze or the like
moistened with 70-90% medical grade ethyl or isopropyl alcohol.
●Patient material should be removed from the area of observation to eliminate the
potential to blur the endoscopic image and/or obscure the illumination system.

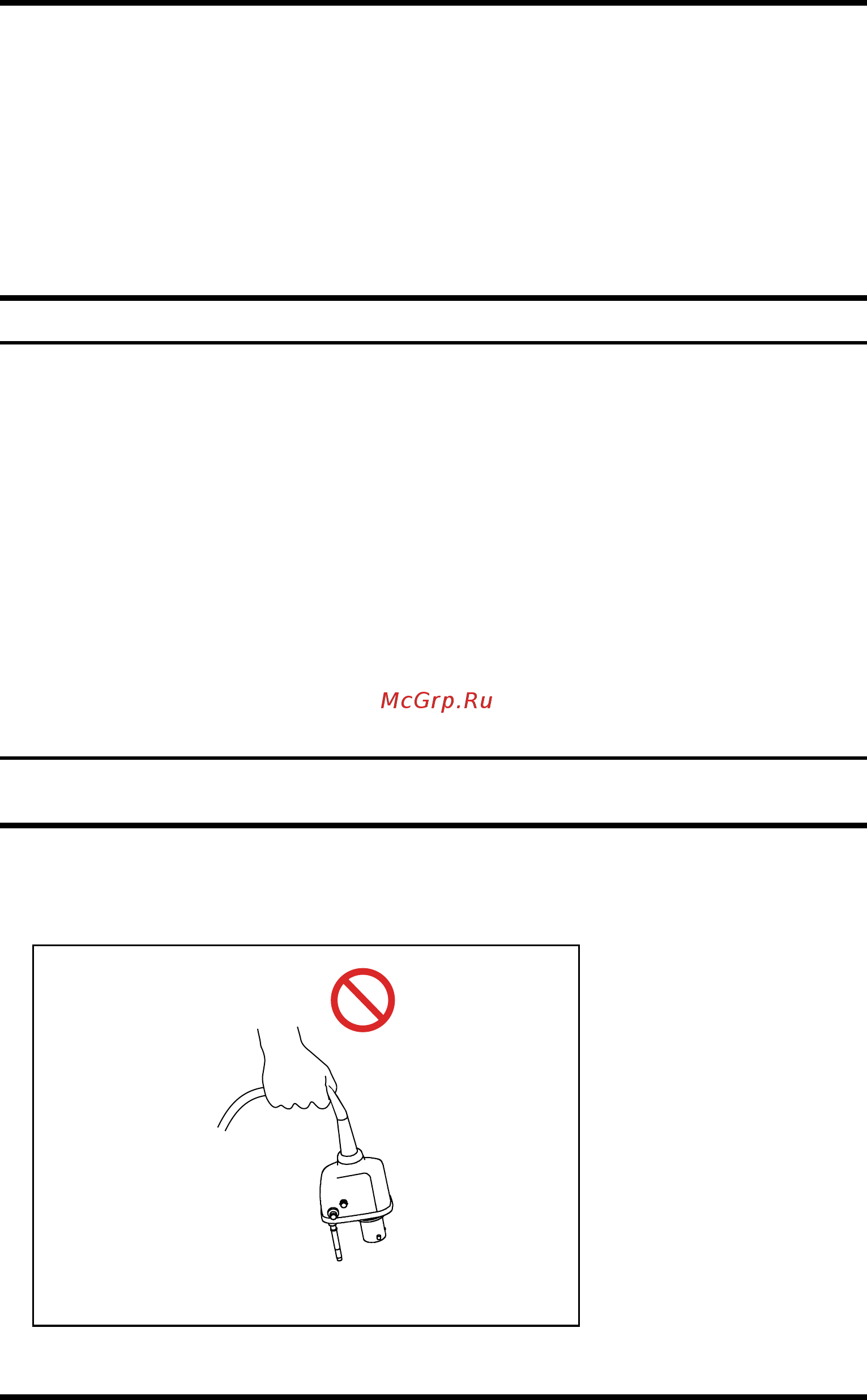

CAUTION:
Do NOT grasp the endoscope by its umbilical cord. It could result in a damage that
would require the endoscope to be repaired.
Figure 2.7
