– 17 –
CAUTION:
To avoid damaging the endoscopes, do NOT twist, rotate or excessively bend any of
the rubber strain reliefs (1), (2) during inspection, clinical use, reprocessing, or any
handling activity. Be particularly cautious for the insertion tube strain relief (1). When
wiping the insertion tube and the umbilical cable, use a slow back and forth motion to
wipe them along the tube/cable. Never apply excessive force or torque on these strain
reliefs or slim tubes/cables. During ANY handling of the instrument avoid excess
force, twisting, rotation and/or bending of the actual insertion tubes and umbilical
cables to prevent inadvertent damage (crush, compression, deformity, etc.) to these
parts as well as to internal components contained within the endoscope.
(2)
(1)
(a)
(b)

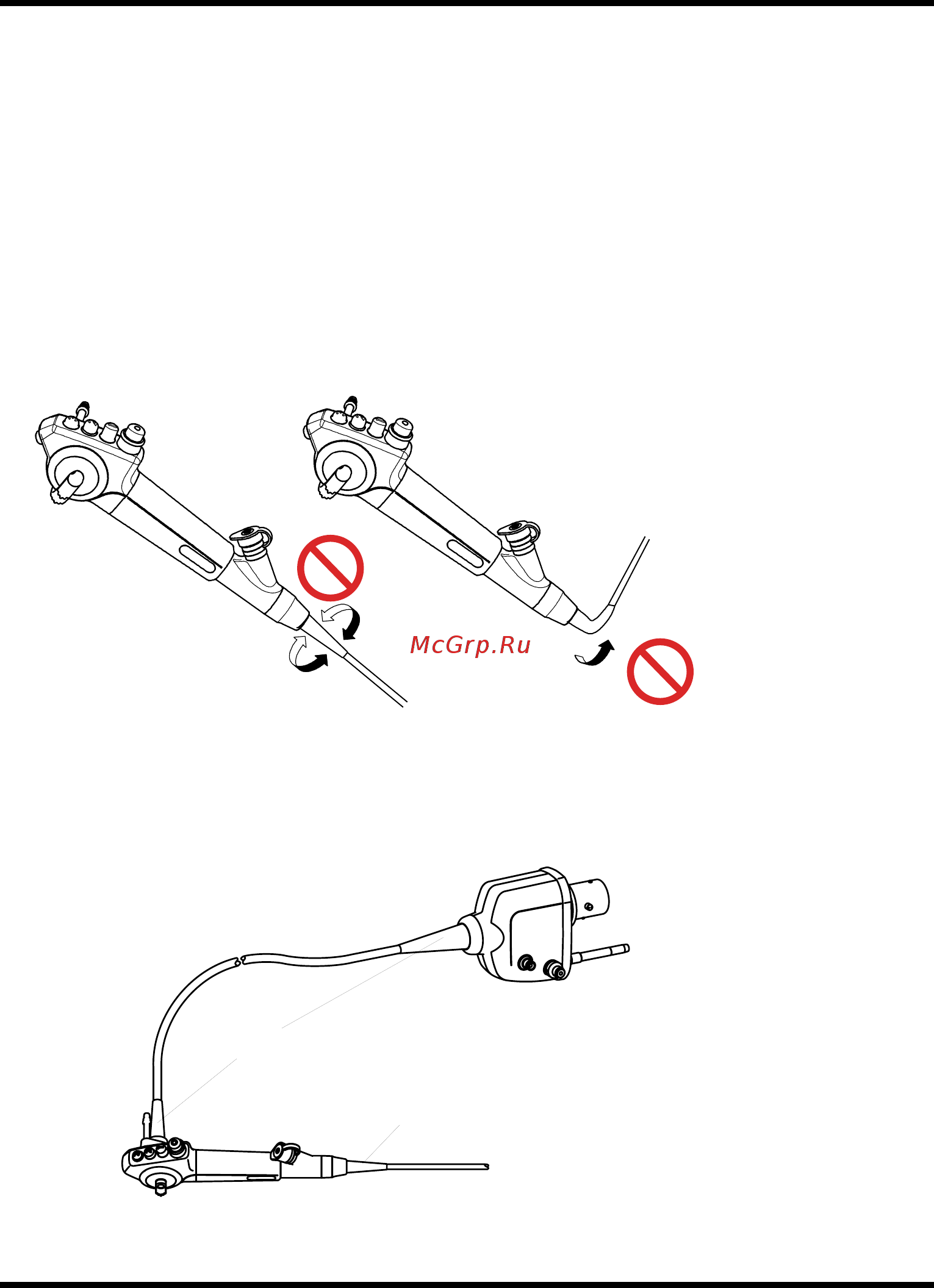

(a) Do NOT twist or rotate
(b) Do NOT bend
(1) Insertion Tube Strain
Relief
(2) Strain Relief
Figure 2.9
