– 20 –
b) Position the valve OF-B163 so that the small metal tab near the base on the
valve stem aligns with the notched suction valve cylinder. Install the valve into
the cylinder by gently pushing the valve into the cylinder. Some rotation of
the valve may be required to ensure proper alignment of the tab into the notch
while attaching the valve. Never apply excessive force to push the valve into the
cylinder.
Figure 2.13

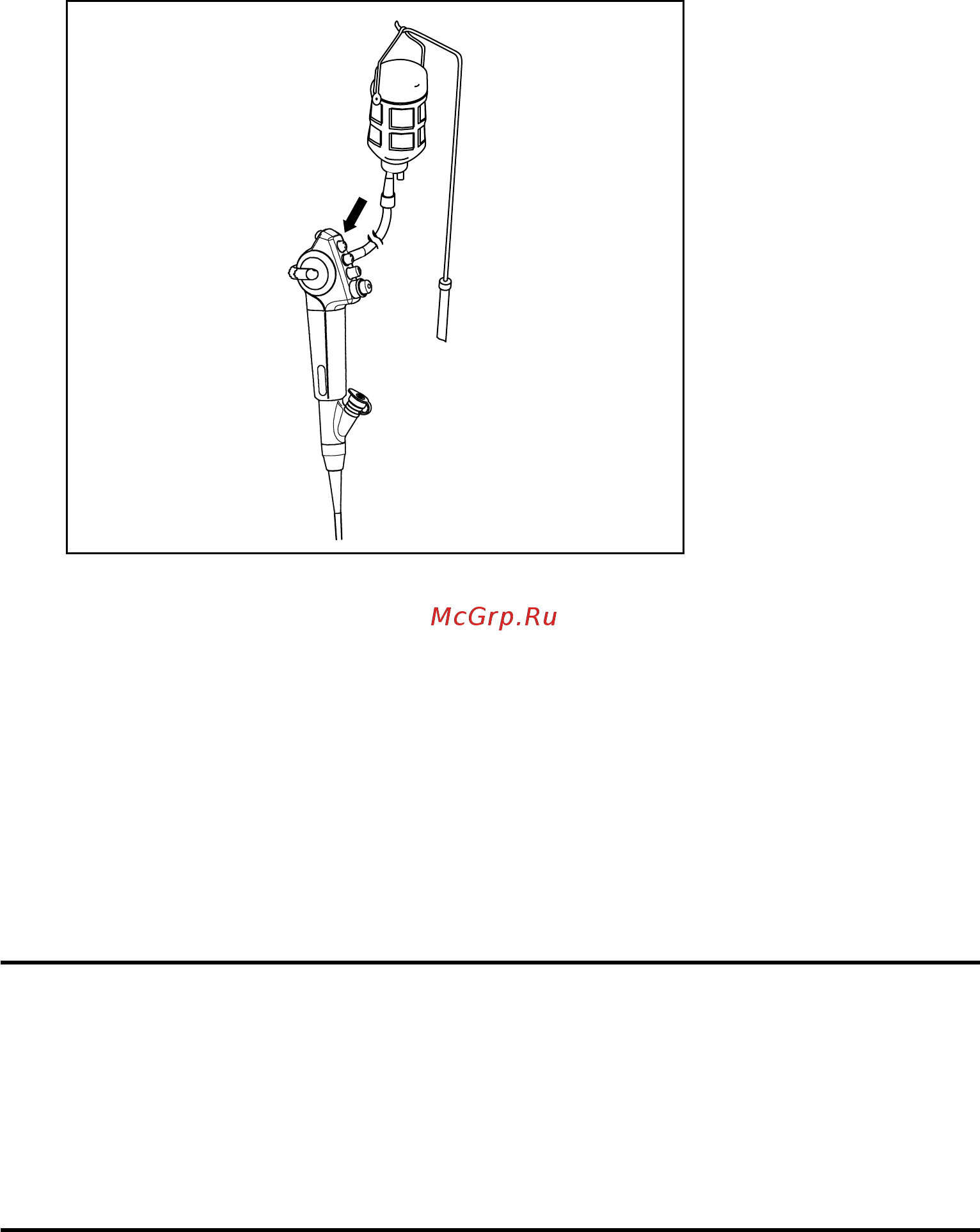

c) Connect irrigation tubing from an external source to the irrigation nipple located
on the control body. Check the ow of the irrigation uid through the distal tip.
d) Partially depress the irrigation control (cessation) valve to reduce the flow of
irrigant. Fully depressing the valve will completely stop all ow.
e) Release the irrigation control (cessation) valve to determine if the valve freely
returns to its original position and the ow of irrigant is resumed.
NOTE:
A rubber inlet seal in good condition must be attached to the instrument channel inlet
to prevent loss of suction and a risk of cross contamination to the end user due to
thepotentialforreux(spit-back)ofpatientuids.Wornsealswillresultinleakand
should be replaced. To ensure maximum performance of these sealing mechanisms,
consider replacing the rubber inlet seal with a new fully reprocessed one for each
procedure.
