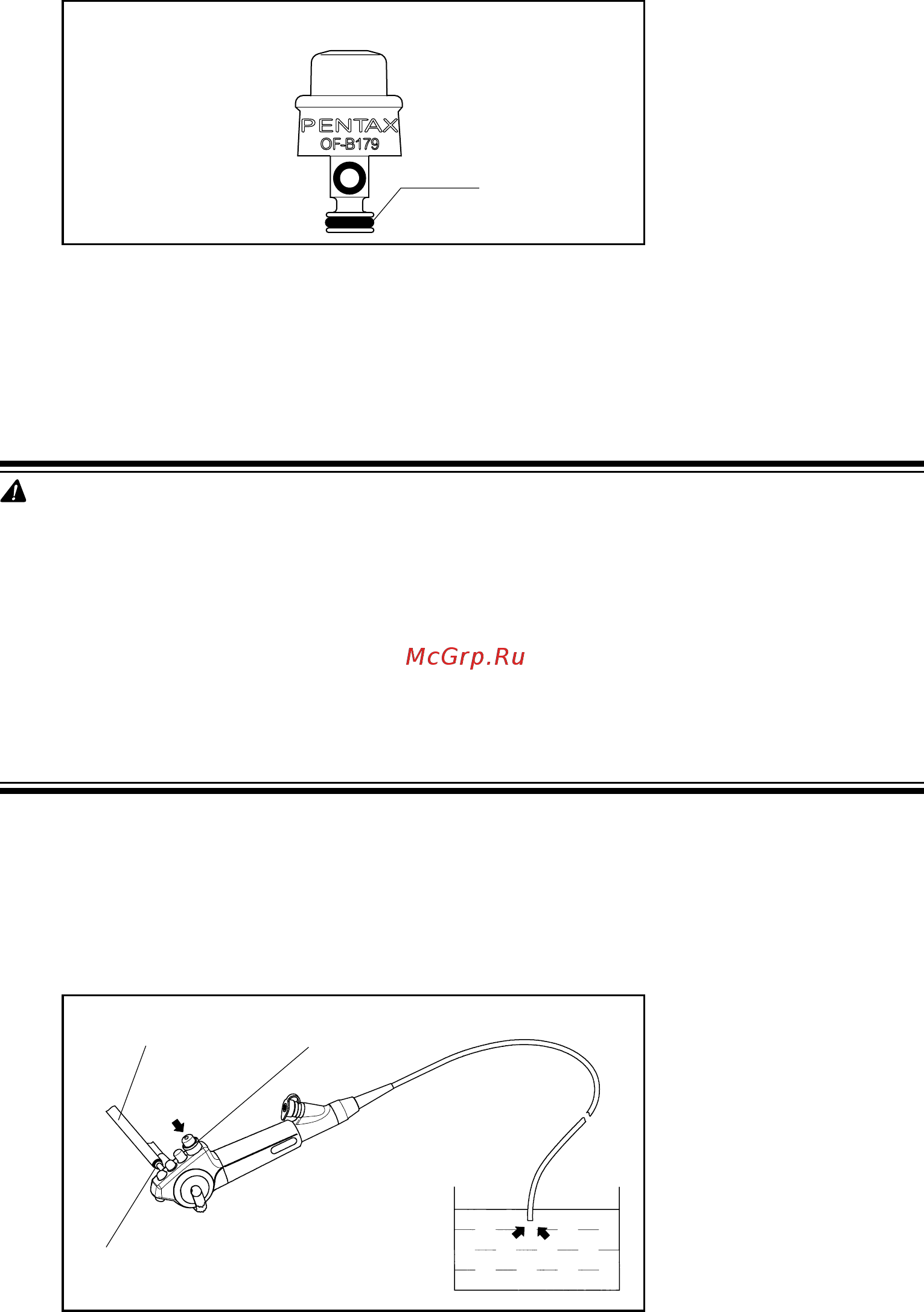

– 21 –
5) Inspection of Suction Mechanism
(1)
(2)
(1) OF-B179
(2) O-Ring OF-B181
Figure 2.14
a) Prior to use, the suction control valve (OF-B179) should be inspected. Remove
the valve from the control body and make sure that the O-rings are not damaged
or worn.
WARNING:
Worn or damaged valves and/or O-rings should be replaced with new ones which
have already been subjected to a cleaning and high-level disinfection or sterilization
procedure prior to use (O-ring set, model OF-B181, is optionally available). Failure
to do so could result in continuous aspiration which in certain clinical situations can
suction tissue into the distal channel opening at the endoscope tip and/or create a
lossofinsufatedairviathesuctionsystem.Acompromisedvalvecouldalsoresultin
thepotentialforreuxorspit-backofpatientuidsthatmaypresentinfectioncontrol
risks.
b) Connect suction tubing from an external suction source to the suction nipple
located on the control body. Place the distal tip of the endoscope in a basin
of sterile water and press the suction control valve. Water should be rapidly
aspirated into the suction system collection container.
(2)
(1)
(4)
(3)
(1) Suction Tube
(2) Press
(3) Suction Control Valve
(4) Suction Nipple
Figure 2.15
c) Release the suction valve to determine if the valve freely returns to its OFF
position and the aspiration of water ceases.
