– 22 –
d) If the valve does not function properly, does not move smoothly or feels “sticky”,
remove it and apply a very small amount of silicone oil to the rubber O-ring on
PENTAX valve mechanism. Do NOT use excess oil, avoid “blobs”, large drops
and/or squirts of oil directly onto the metal valve stem – instead, simply place a
small droplet of oil on one’s sterile gloved forenger and gently swirl between
thumb and forenger. Next place the valve with O-ring in-between thumb and
nger and gently rotate the valves so that the oil is evenly applied to the outer
edges of the rubber O-ring. Make sure the oil is applied to the O-ring and wipe
off all excess.
CAUTION:
If the instrument is to be used immediately after the inspection, use only sterile or
bacteria-free water. To avoid recontamination of a previously reprocessed endoscope,
avoid use of idle/uncovered tap water.
NOTE:
A rubber inlet seal in good condition must be on the instrument channel inlet to
prevent loss of suction and a risk of cross contamination to the end user due to the
potential for reflux (spit-back) of patient fluids. Worn seals will result in leak and
should be replaced. To ensure maximum performance of these sealing mechanisms,
consider replacing the rubber inlet seal with a new fully reprocessed one for each
procedure.

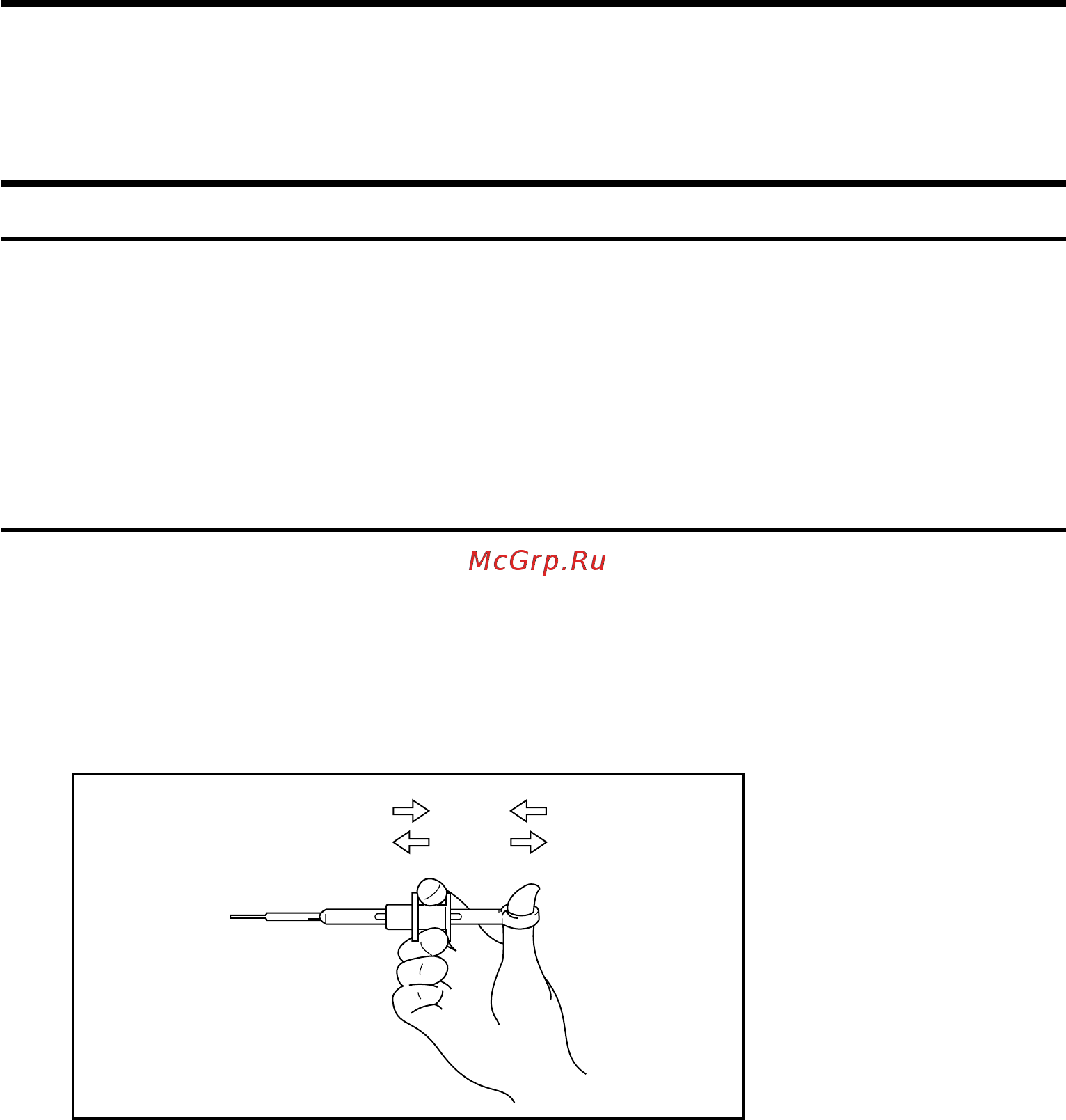

6) Inspection of Biopsy Forceps and Instrument Channel
a) Make sure there are no kinks in the exible shaft of the biopsy forceps.
b) The jaws of the forceps must be free of any residual debris. Any debris must be
cleaned from the forceps before they are used. Use only sterile forceps.
(1)
(2)
(1) Close
(2) Open
Figure 2.16
c) The handle mechanism on the forceps should be operated to open and close the
jaws. This mechanism should operate freely.
d) Close and inspect the jaws of the forceps to make sure the jaws are in proper
alignment. If the forceps has a spike, the spike must be completely straight and
fully within the jaws.
