EMOTRON DSV 5445/5444
21.04.09 Emotron
Page 29
6.2.2 EmoSoftLift start message

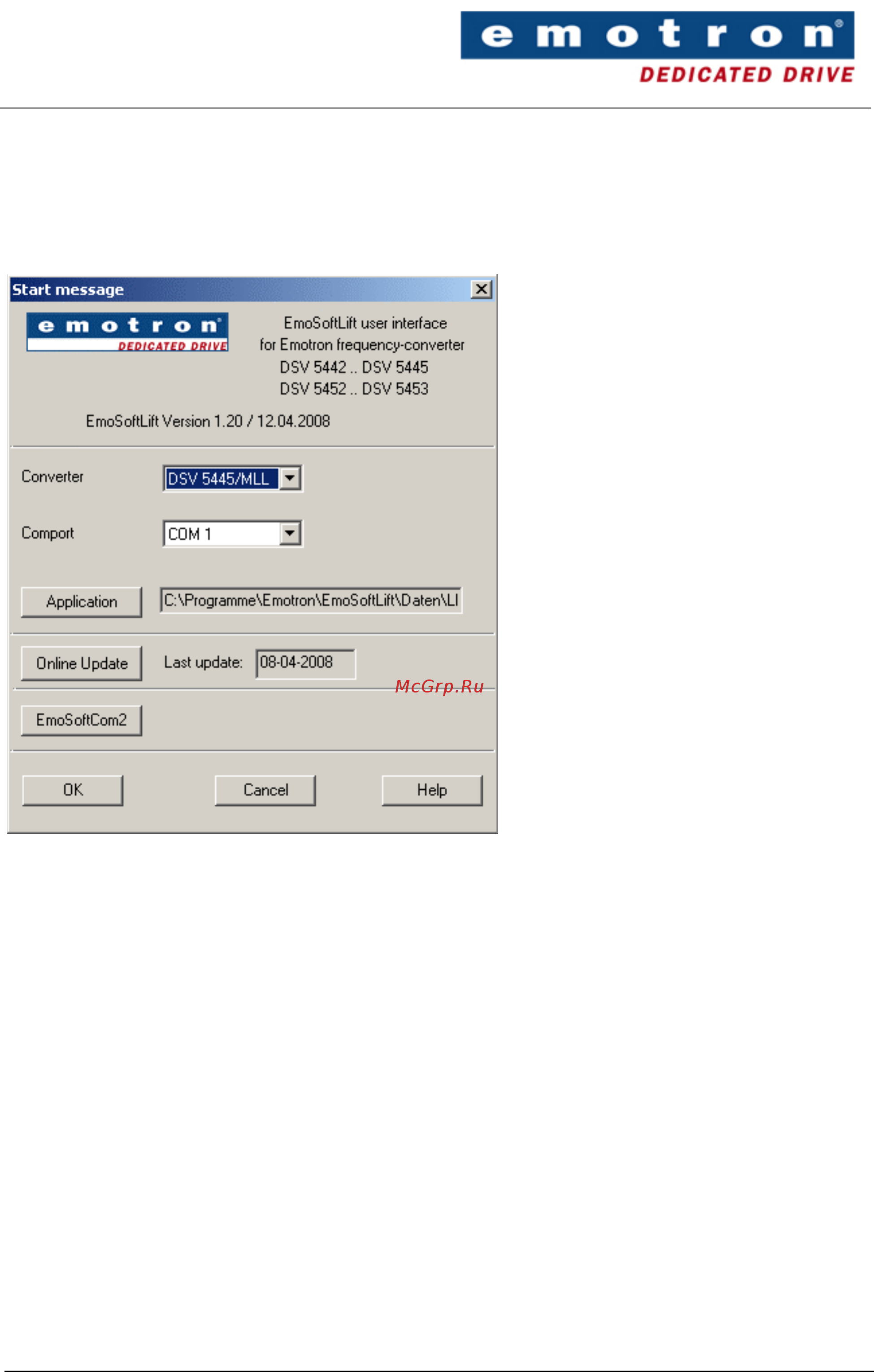

The following start message appears after starting the program:
6.2.2.1 Select converter
Select the converter type in the converter window. "DSV 5445/MLL" for your lift device.
6.2.2.2 ComPort interface
Select the correct COM X for your PC/laptop! COM1 is standard.
6.2.2.3 Application
The selection of the application inserts or ignores parameters and variables in the parameter record
appropriate to the application and defines setting limits. Only the applications German lift_d / lift1sx, English
lift_e / lift3sx, French "Lift_f", Portuguese "Lift_p" are suitable for many standard cable lifts.
Select "Beringer" for the analogue set point specification for Bucher AG (Beringer) hydraulic lift systems.
Other application files are purely customer-specific and are required only after consultation.
