EMOTRON DSV 5445/5444
21.04.09 Emotron
Page 65
11 Options
11.1 Further processing of encoder signals with option "X6" (X7 optional available)
Connector option
"X7"
Connector option
"X6"
Pin assignment for option X6/X7
Turn-switch Divider
0 ON 1/1
1 ON 1/2
2 ON 1/4
3 ON 1/8
4 ON 1/16
(Note: Sinus and
Cosinus have it’s own
switch, please set both
in the same directions)
0028_02D.DRW
Terminal
1
2
3
4
5
6
7
8
9
Meaning
UA1-OUT
UA1-OUT\
no connection
no connection
UA2-OUT
UA2-OUT\
no connection
no connection
GND
Square wave pulse with
adjustable ratio
Square wave pulse with
ratio 1:1
The motor encoder signal can be made available, for example to the controller, using the X6/X7 option card.

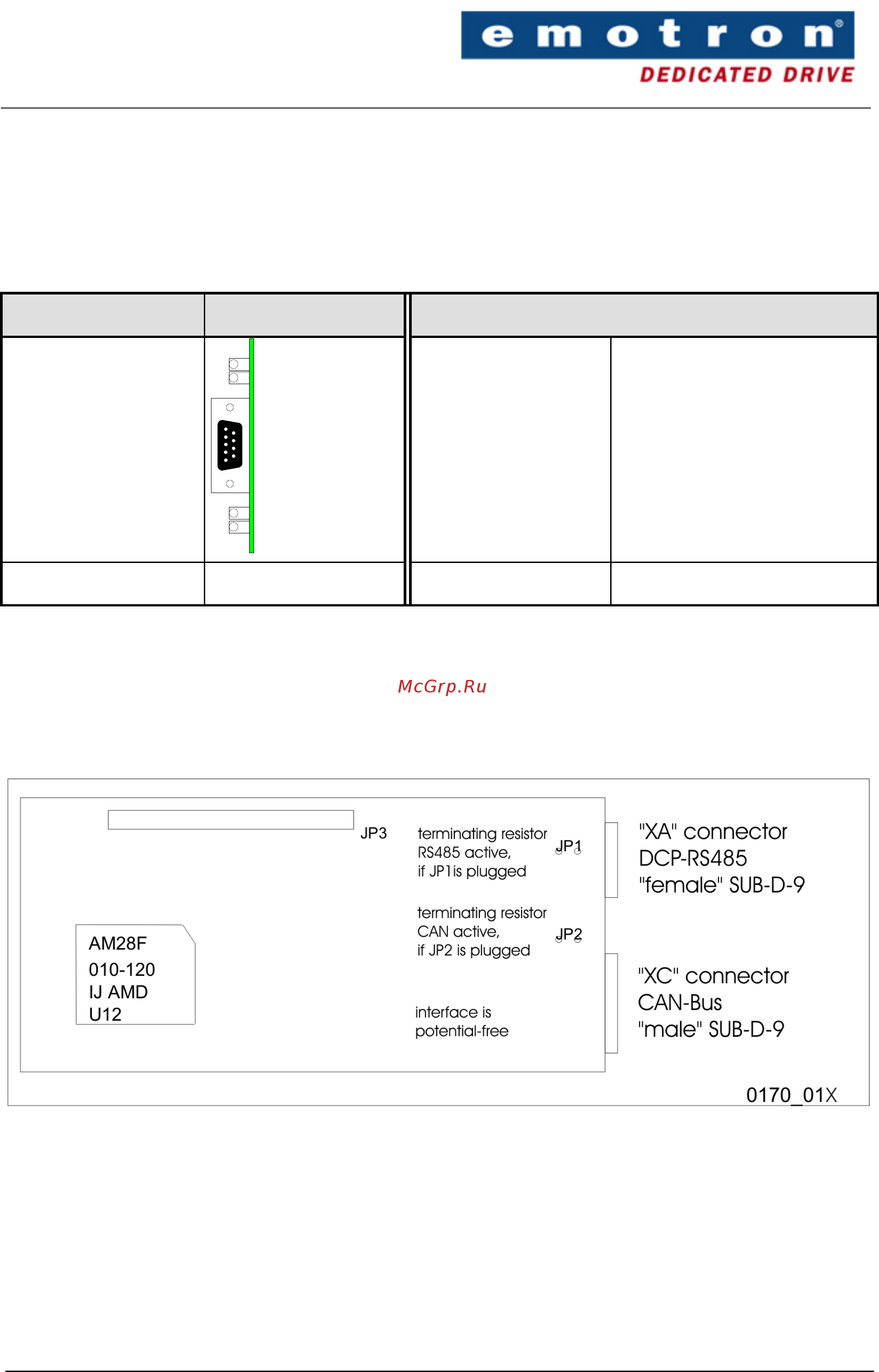

11.2 Option "CAN / DCP-ACP bus interface"
Accessories for option 95444241 for connection from DCP-RS485 bus or CAN bus:
Both interface connectors are potential-free!
