EMOTRON DSV 5445/5444
21.04.09 Emotron
Page 73
13 Appendix
13.1 Dimensions and weight

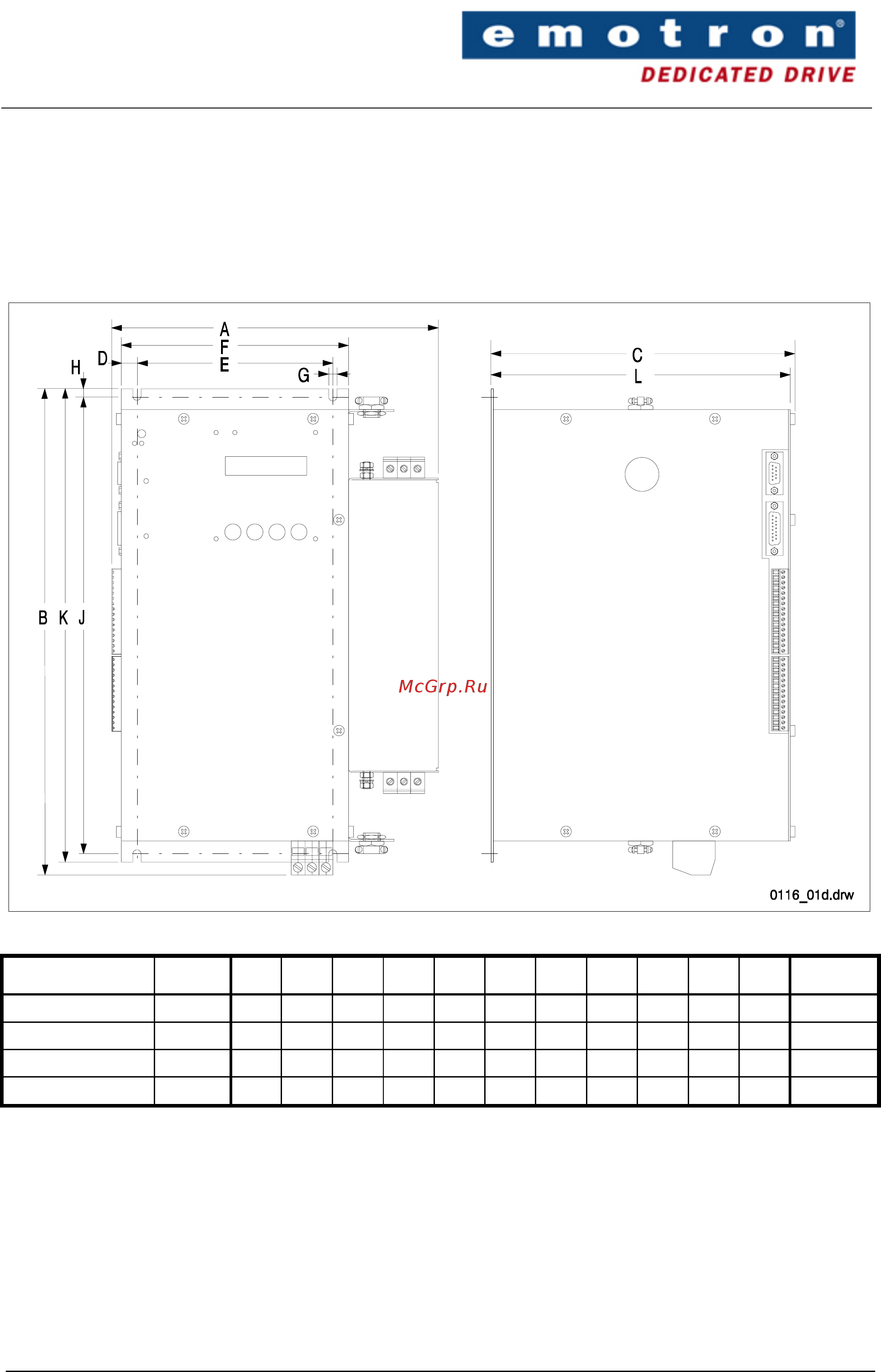

Frequency converter with built-on filter
DSV 5445 Size A
[mm]
B
[mm]
C
[mm]
D
[mm]
E
[mm]
F
[mm]
G
[mm]
H
[mm]
J
[mm]
K
[mm]
L
[mm]
Weight
[kg]
10 - 15A 1 167 174 11.5 107 130 6 6 264 276 171 10.5
20 - 30A 2 237 353 220 11.5 142 165 6 6 331 343 217 16.5
40 - 70A 3 237 473 220 11.5 142 165 6 6 451 463 217 24.0
80 – 120 - 150A 4 293 759 310 25 161 210 6.5 6 745 757 304 60.0
• The size 1 connectors are located at the front that means dimension B is
inapplicable.
• Size 1 dimensions for 1 option and higher A = 224mm, D = 41.5mm, F = 160mm
• Size 1 and 2 are supplied without internal FU-Control
• Size 2 dimensions for 2 options and higher A = 267mm, D = 41.5mm, F = 195mm;
the connectors are located at the front
• DSV 5445 30 size 3 and DSV 5445 60 size 4 should not be used anymore for new
installation.
