Emotron CDU/CDX 48-026 [30/82] Online update

EMOTRON DSV 5445/5444

Page 30

 Emotron 21.04.09

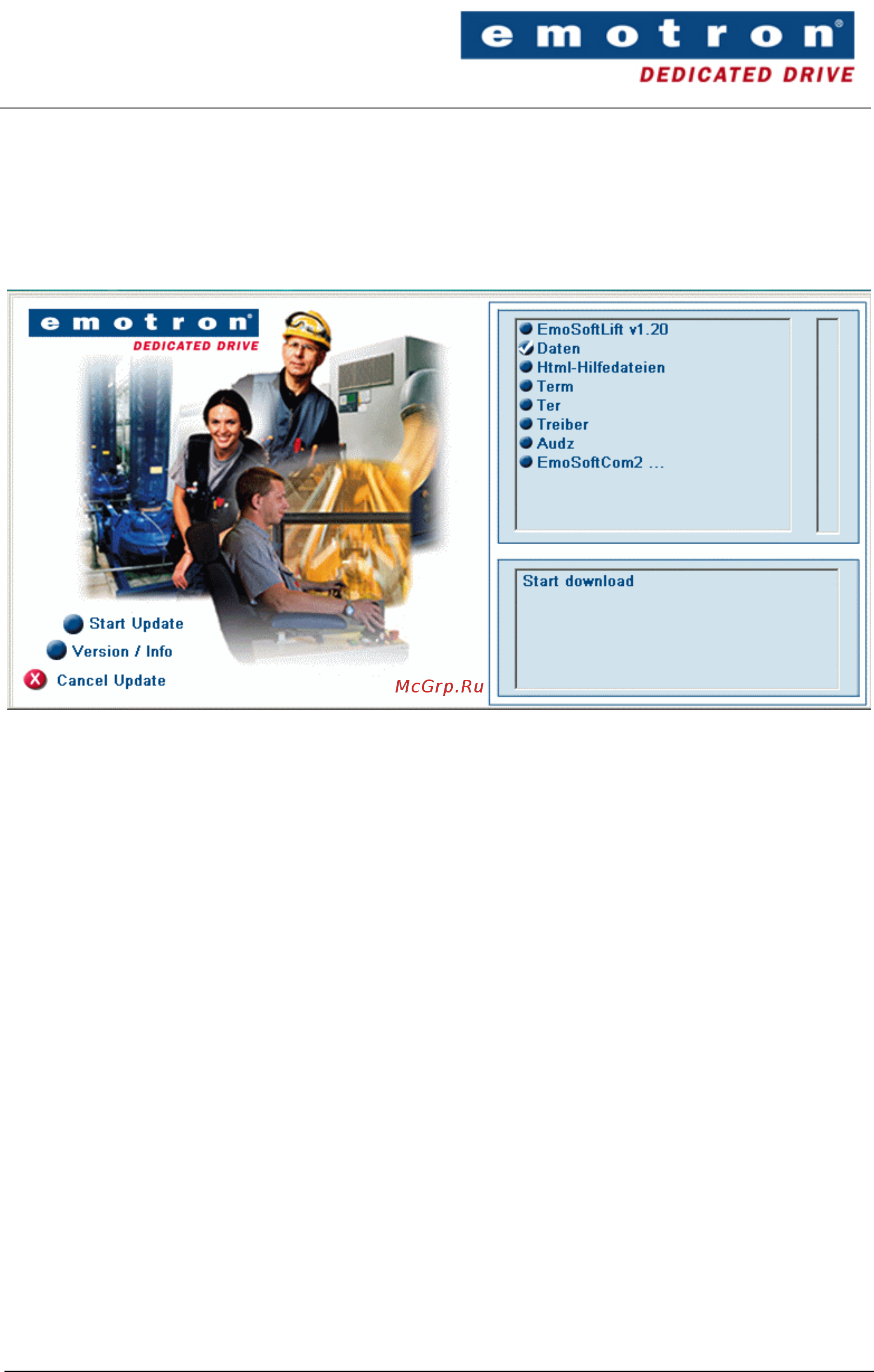

6.2.2.4 Online update

If using EmoSoftLift on a PC/laptop connected to the Internet press the button “Online Update”. After a short

initialisation press “Start” to run the update. The subdirectories e.g. DATEN, HTML, AUDZ, … can be copied

to other PCs/laptops for updating them.

6.2.2.5 Help

Use the help function.
