AVH-P7800DVD/UC
198
1234
1234
C
D
F
A
B
E
Side A

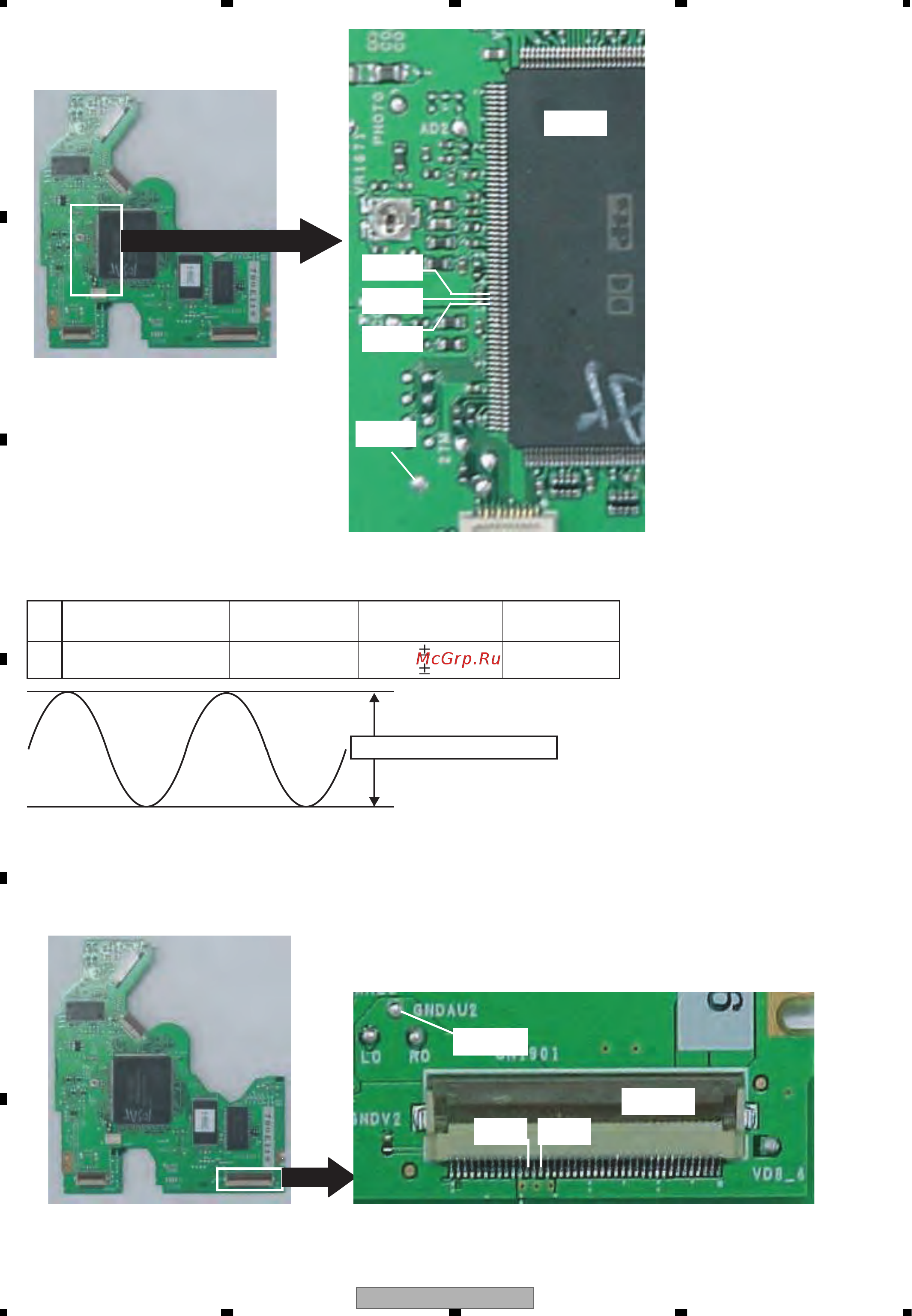

Fig.11.3 : Three serial output check point
Side A
Fig.11.5 : Analog audio out check point
DGND2
IC1501
167pin
168pin
169pin
27pin29pin
CN1901
GNDAU2
Fig.11.4 : Analog audio outputs (LO and RO) rated values
Rated value is effective value (rms)
No.
4
5
Verification location 1
(Sensing pin)
LO
RO
Verification
location 2
CN1901 pin29
CN1901 pin27
Reference
waveform
Waveform 4
Waveform 4
Rated value (rms)
1 100 150 mV
1 100 150 mV
On the basis of GNDAU, the next check uses the measurement circuit of Fig.11.4, and performs it.
