Daikin EUW10KZW [22/49] Water pressure drop curve
![Daikin EUW10KZW [22/49] Water pressure drop curve](/views2/1669388/page22/bg16.png)
Sheet
3/4 4TW53479-1A (3)
32-48hp

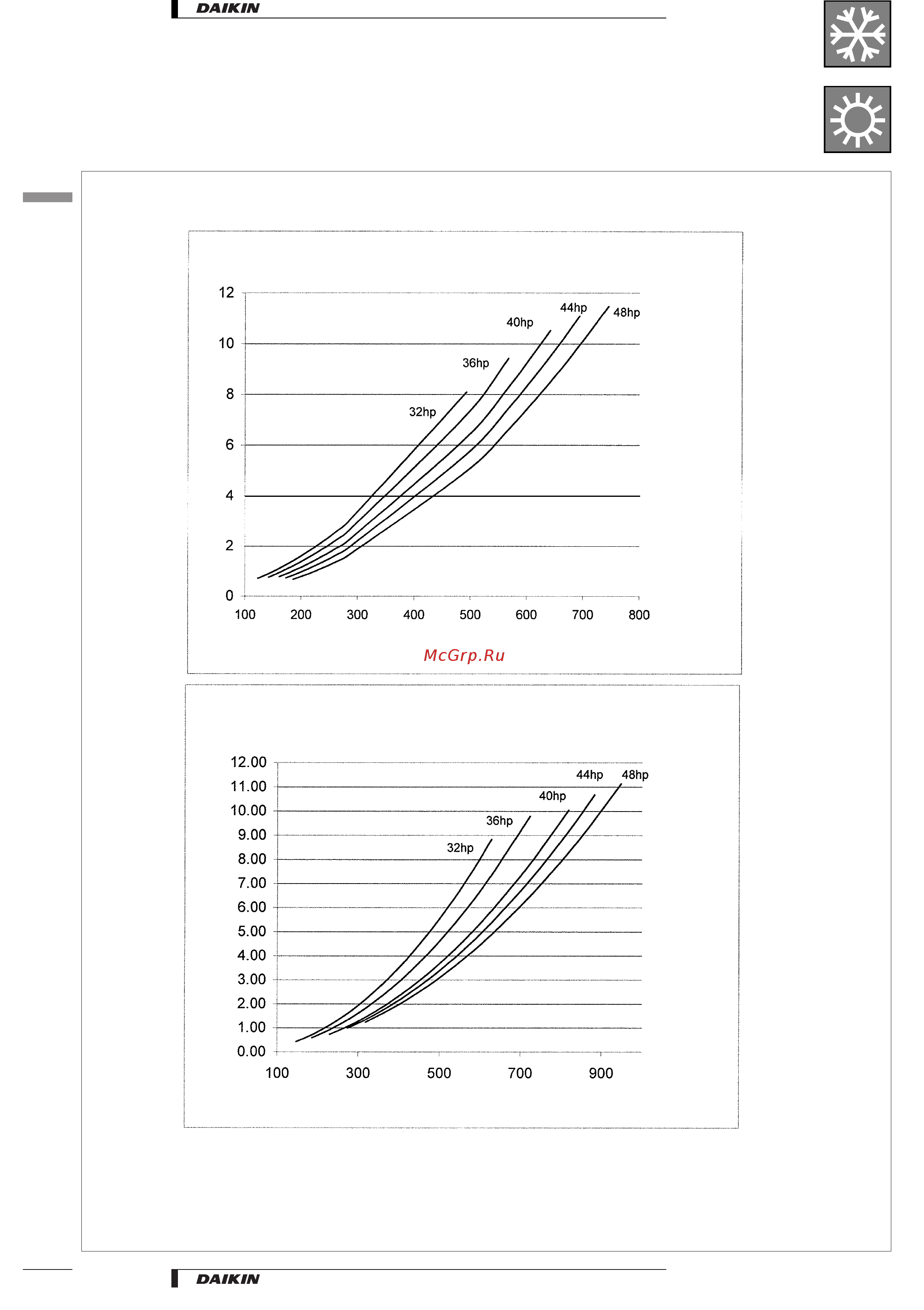

Water flow rate (l/min)
Water flow rate (l/min)
Pressure drop (mH2O)
Pressure drop (mH2O)
Pressure drop evaporator
Pressure drop condenser
Warning: Selecting a flow outside the curves can cause damage to or malfunction of the unit. See also
minimum and maximum allowed water flowrate in the technical specifications.
•
Water-cooled • R-407C • EUW5-24KZW
5
Water pressure drop curve
5-1
Pressure drop evaporator / condenser
1
5
5-1
