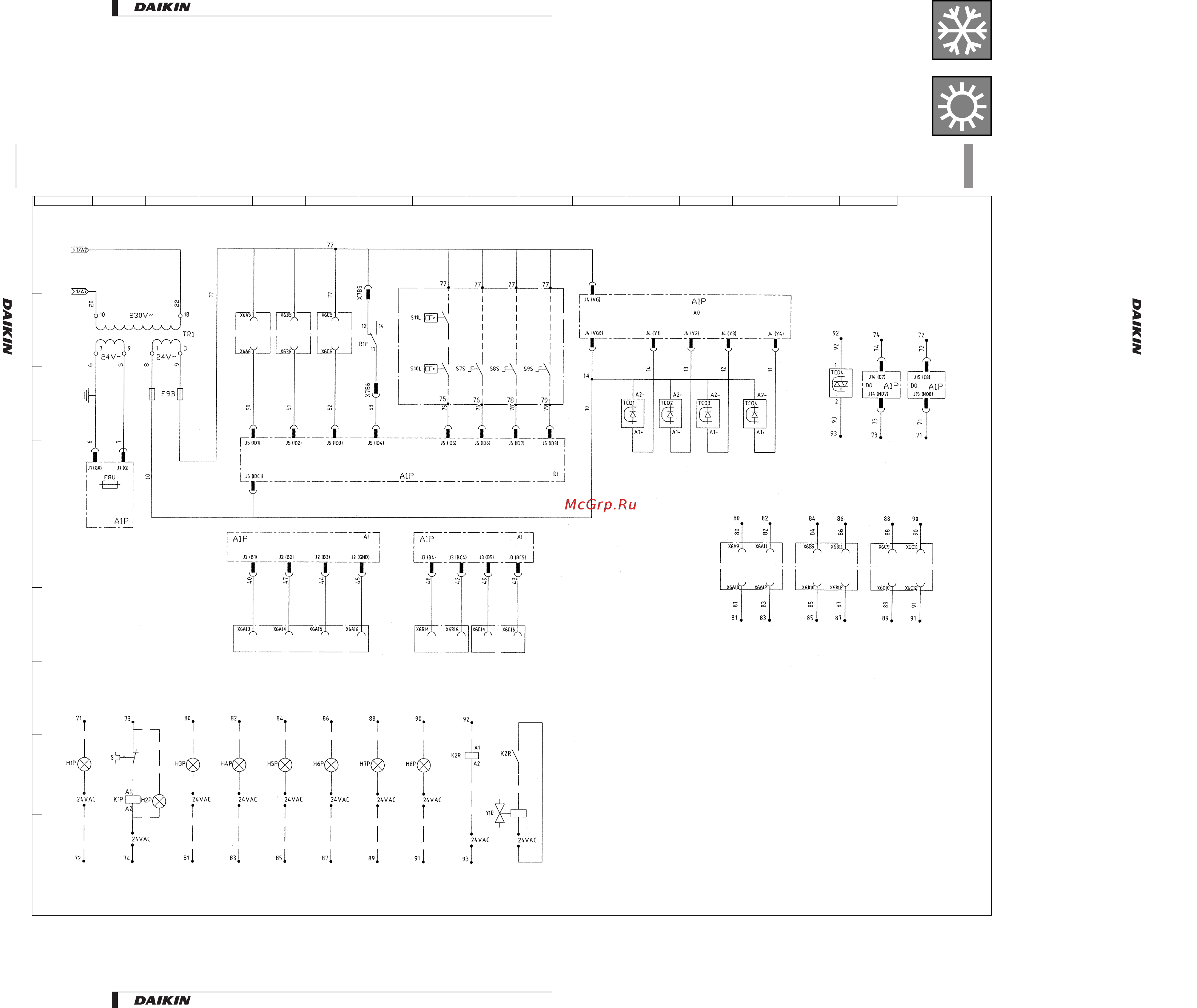

Daikin EUW10KZW [40/49] Wiring diagrams

52-72hp (Wiring diagram control switch box)

3TW53476-4E (2/3)

Output terminals for fieldwiring example

Maximum output current:

Resistive: 2A; configurable output max. 0.5A

Inductive: 2A/Cos Phi 0.4; configurable output max. 0.5A/Cos Phi 0.9

1 2345678910111213141516

Main switchbox

Main switchbox A

Main switchbox B

Main switchbox

Power supply

Pump and general operation

Operation compressor M1C

of SWB A

Operation compressor M2C

of SWB A

Operation compressor M1C

of SWB B

Operation compressor M2C

of SWB B

Operation compressor M1C

of SWB C

Main switchbox

Main switchbox C

Main switchbox

Operation compressor M2C

of SWB C

Changeable output

(i.e. reversing valve)

Wiring diagrams

•

Water-cooled • R-407C • EUW5-24KZW

•

Water-cooled • R-407C • EUW5-24KZW

Wiring diagrams

• Applied Systems • Chillers
