Daikin EUW10KZW [31/49] Piping diagrams
![Daikin EUW10KZW [31/49] Piping diagrams](/views2/1669388/page31/bg1f.png)

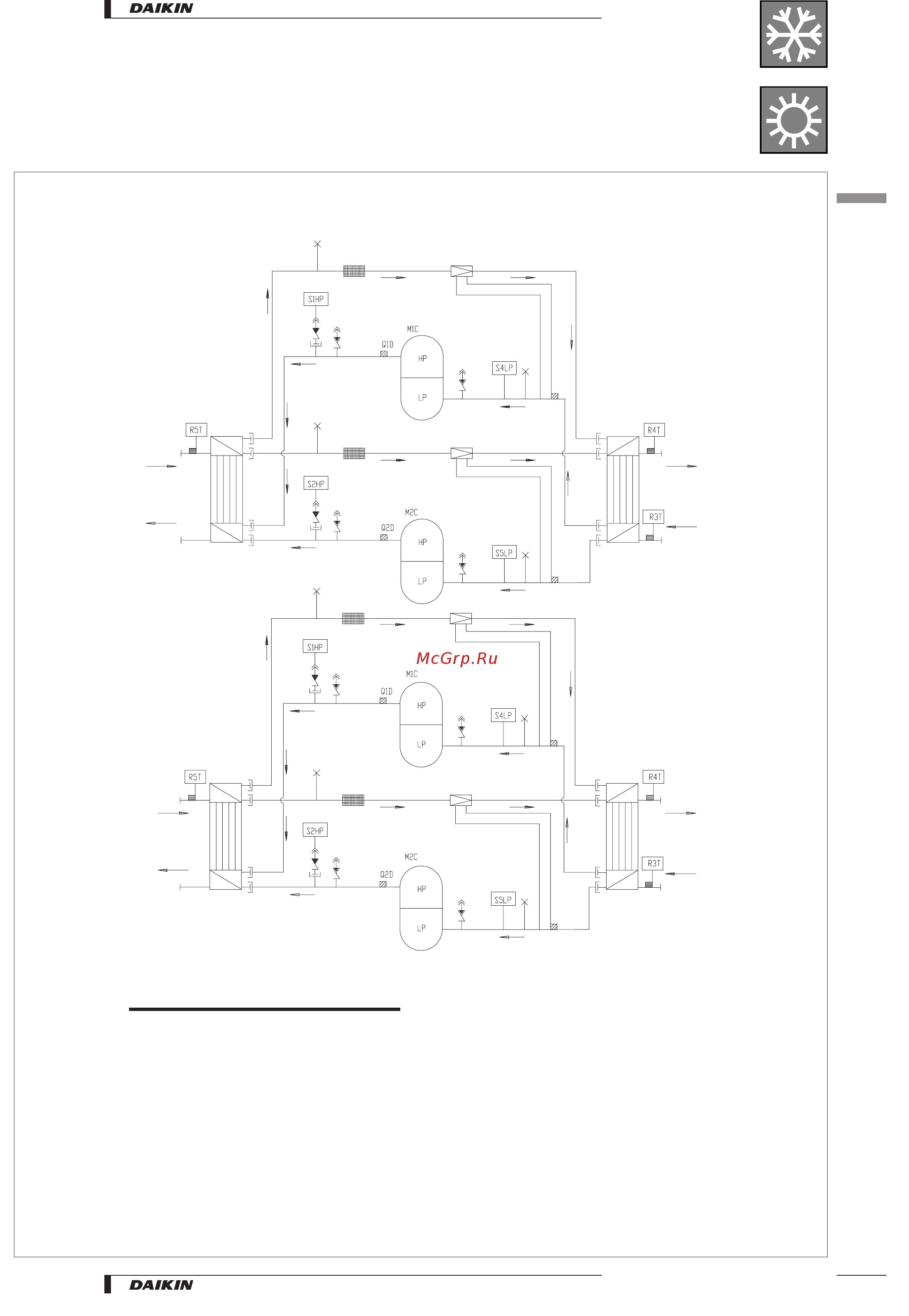

3TW53475-3
O Check valve
L Flare connection
M Screw connection
N Flange connection
Z Pinched pipe
P Spinned pipe
32-48hp
M1C-M2C Compressor motor
R4T Freeze-up protection
R5T Inlet water cond. temp. sensor
S1HP High pressure switch
S2HP High pressure switch
S4LP Low pressure switch
S5LP Low pressure switch
R3T Inlet water evap. temp. sensor
Q1D Discharge temperature controller
Q2D Discharge temperature controller
Condenser
Evaporator
Filter
Water outlet
Water inlet
Water inlet
Water outlet
Filter
Water outlet
Water inlet
Filter
Filter
Evaporator
Condenser
Water inlet
Water outlet
•
Water-cooled • R-407C • EUW5-24KZW
8
Piping diagrams
1
8
29
• Applied Systems • Chillers
