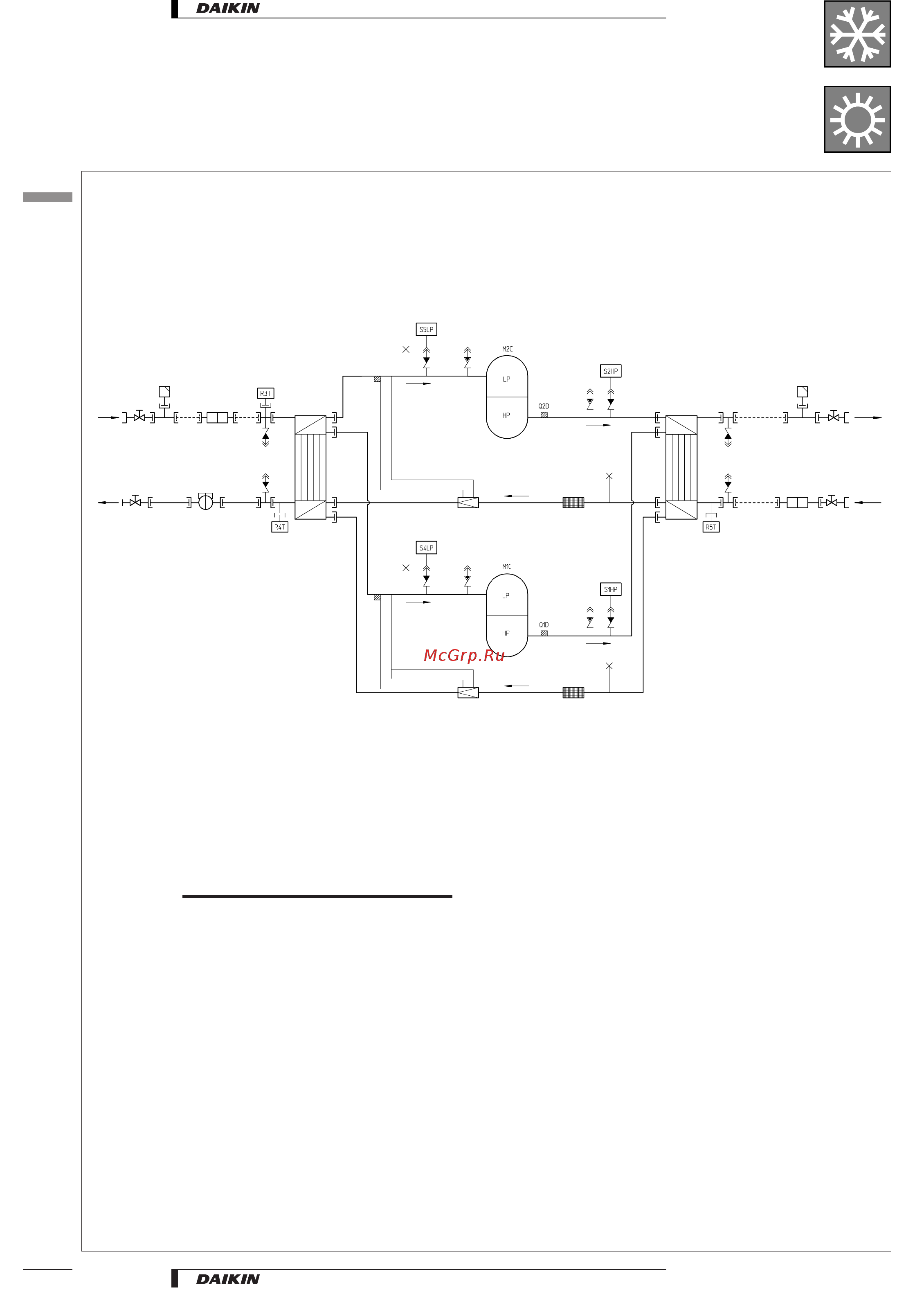

Daikin EUW10KZW [30/49] Piping diagrams
![Daikin EUW10KZW [30/49] Piping diagrams](/views2/1669388/page30/bg1e.png)
3TW55305-1B
------ Field piping
O Check valve
L Flare connection
M Screw connection
N Flange connection
Z Pinched pipe
P Spinned pipe
EUW16-24KZW
M1-2C Compressor motor
R4T Freeze-up protection
R5T Inlet water cond. temp. sensor
S1HP High pressure switch
S2HP High pressure switch
S4LP Low pressure switch
S5LP Low pressure switch
R3T Inlet water evap. temp. sensor
Q1D Discharge temperature controller
Q2D Discharge temperature controller
Condenser
Evaporator
Filter
Water outlet
Water inlet
Water inlet
Water outlet
Filter
Flow switch
Shut off
valve
Shut off valve
Shut off valve
Shut off
valve
Air
purge
Air purge
Filter
Filter
Expansion valve
Expansion valve
•
Water-cooled • R-407C • EUW5-24KZW
8
Piping diagrams
1
8
28
• Applied Systems • Chillers
