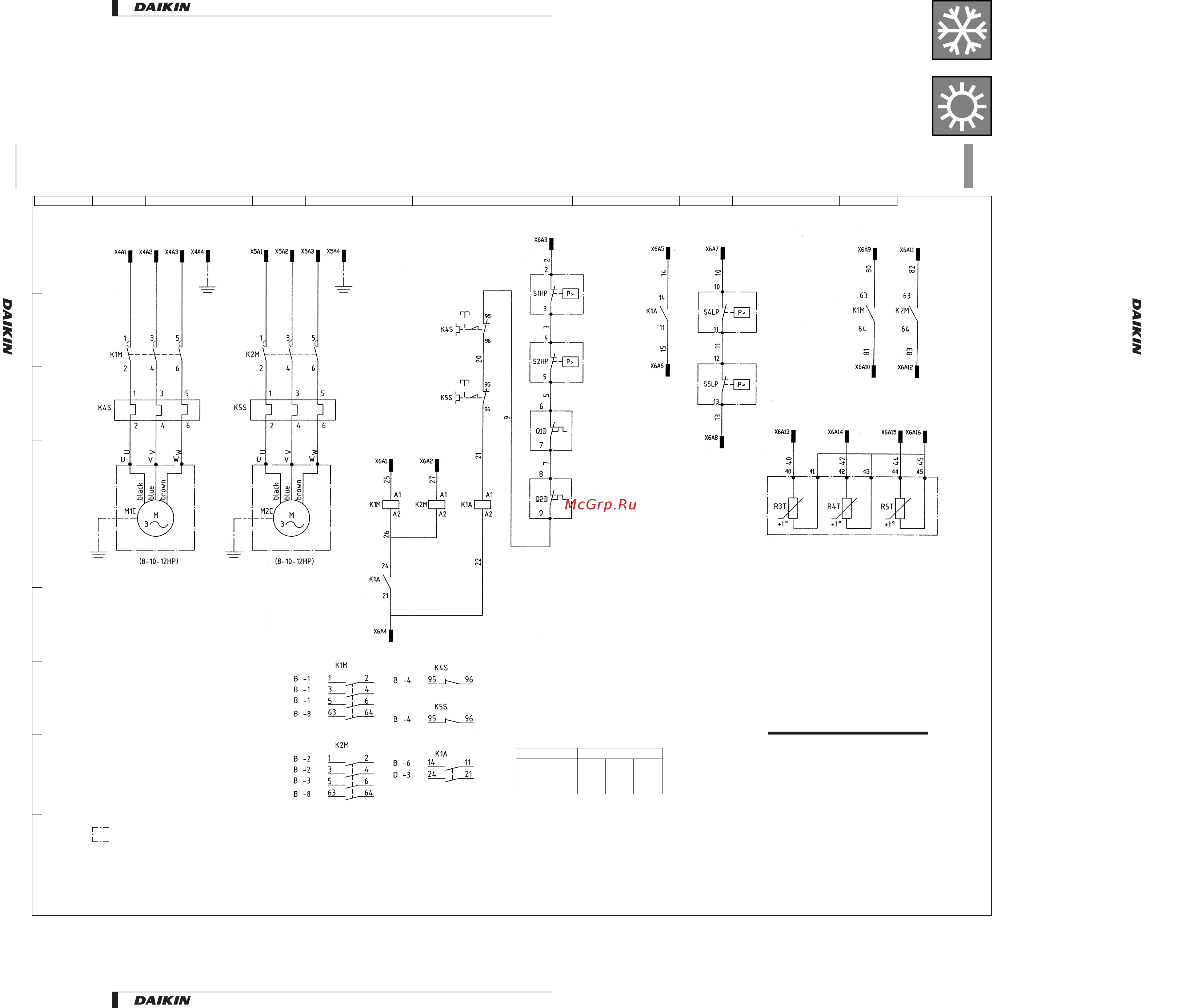

16-72hp (Wiring diagram main switch box)
3TW53476-5A
X6A Interconnection connector main <> Control switchbox (16)
X4A/X5A Interconnection connector main <> Control switchbox (2*4)
S4LP/S5LP Low pressure switch
S1HP/S2HP High pressure switch
R5T Cond. inlet temperature sensor
R4T Evaporator outlet water temperature sensor
R3T Evaporator inlet water temperature sensor
Q2D Discharge thermal protectors M2C
Q1D Discharge thermal protectors M1C
M2C Compressor motor
M1C Compressor motor
K1A Auxiliary contactor for alarm
K5S Overcurrent relay M2C
K4S Overcurrent relay M1C
K2M Compressor M2C contactor
K1M Compressor M1C contactor
NOTES
(1) d1 Terminal 1
(2) W Wire 2
(3) F Field wiring, to be in accordance with the local
electrical regulations
(4) C Earth wiring
(5)
Outside switchbox
(6) If compressor rotates reversely, it may be damaged.
400V
Fuses + overcurrent 8HP 10HP 12HP
K4S 14A 18A 20A
K5S 14A 18A 20A
- Recommended fuses gL/gG (aM also admitted)
according to IEC standard 269-2
(F1U,F2U,F3U = gL/gG)
-Switchbox might only be used together with control
switchbox for:
WC 16-20-24HP
WC 32-48HP
WC 52-72HP
