Daikin EUW10KZW [29/49] Piping diagrams
![Daikin EUW10KZW [29/49] Piping diagrams](/views2/1669388/page29/bg1d.png)
8

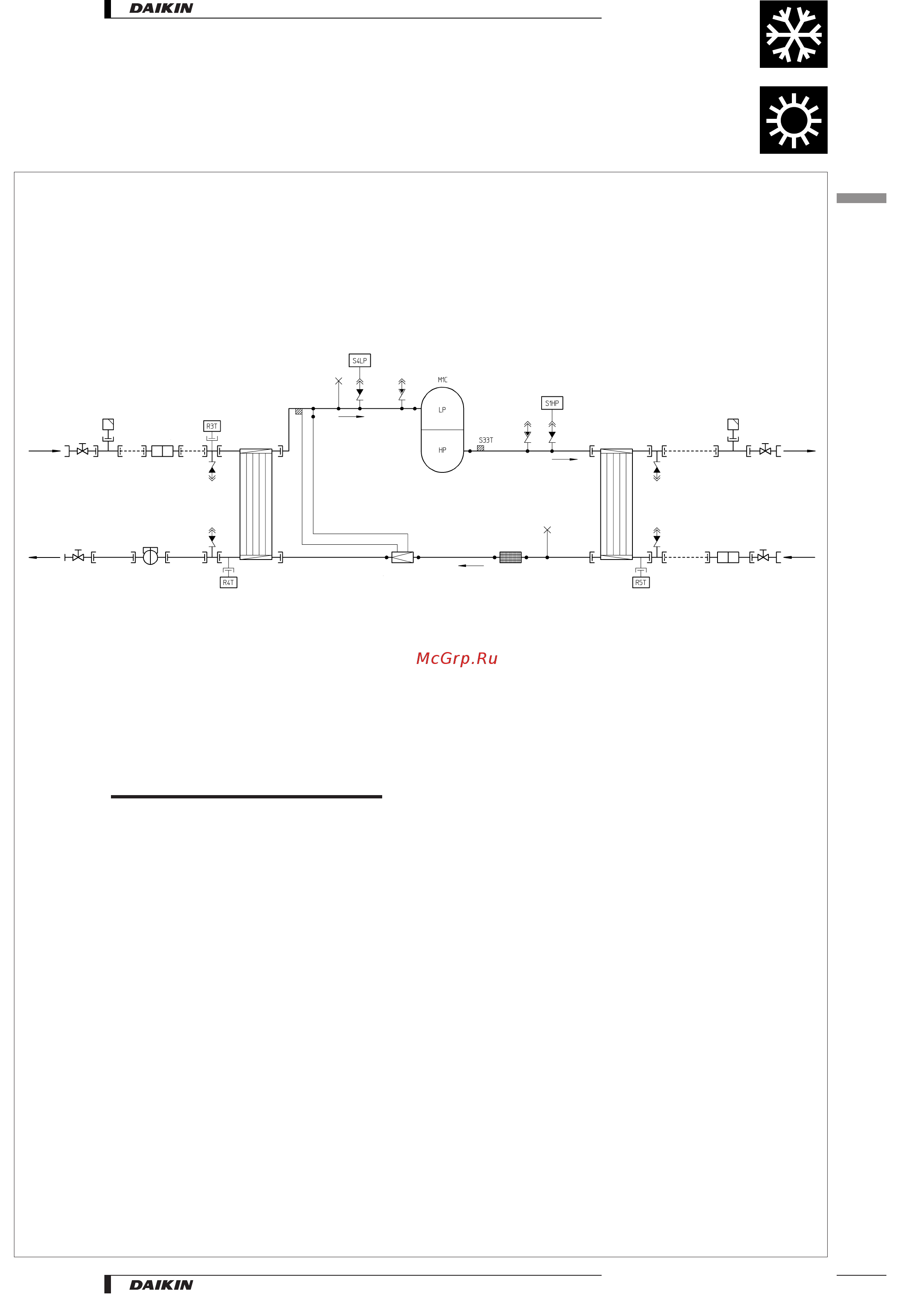

Piping diagrams
3TW55255-1B
------ Field piping
O Check valve
L Flare connection
M Screw connection
N Flange connection
Z Pinched pipe
P Spinned pipe
EUW5-12KZW
M1C Compressor motor 1
R3T Outlet water evap. temp. sensor
R5T Inlet water cond. temp. sensor
S1HP High pressure switch
S4LP Low pressure switch
R4T Freeze-up protection
S33T Discharge temperature controller
Condenser
Evaporator
Expansion valve
Water outlet
Water inlet
Water inlet
Water outlet
Filter
Filter
Shut off valve
Shut off
valve
Shut off
valve
Air
purge
Filter
Flow switch
Shut off valve
Air purge
•
Water-cooled • R-407C • EUW5-24KZW
1
8
27
• Applied Systems • Chillers
