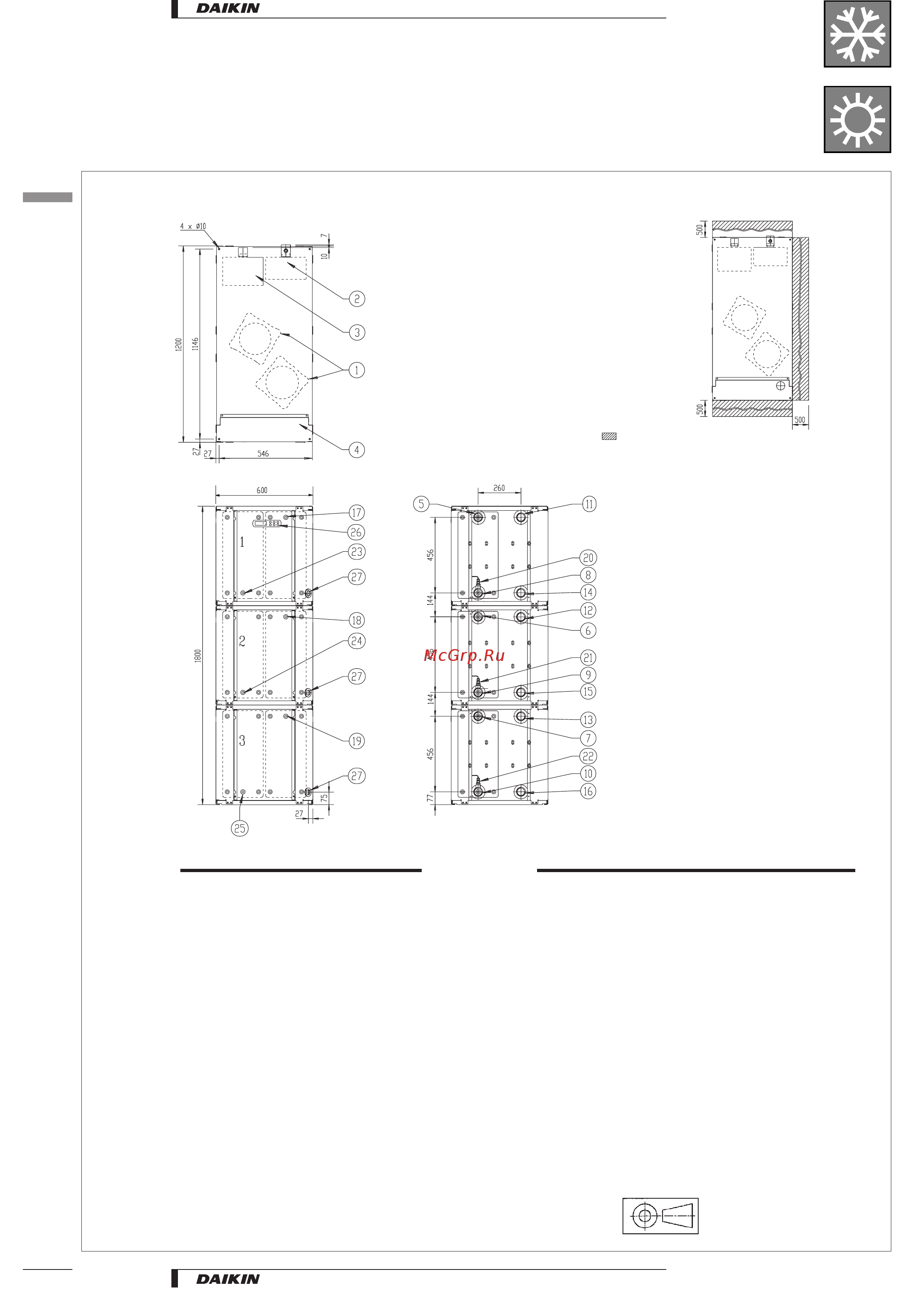

Daikin EUW10KZW [28/49] Dimensional drawings
![Daikin EUW10KZW [28/49] Dimensional drawings](/views2/1669388/page28/bg1c.png)
52-72hp
3TW53474-4B
1 Compressor
2 Evaporator
3 Condenser
4 Switchbox
5 Chilled water in 1
6 Chilled water in 2
7 Chilled water in 3
8 Chilled water out 1
9 Chilled water out 2
10 Chilled water out 3
11 Condenser water out 1
12 Condenser water out 2
13 Condenser water out 3
14 Condenser water in 1
15 Condenser water in 2
16 Condenser water in 3
17 Evaporator entering water temperature sensor 1
18 Evaporator entering water temperature sensor 2
19 Evaporator entering water temperature sensor 3
20 Freeze up sensor 1
21 Freeze up sensor 2
22 Freeze up sensor 3
23 Condensor entering water temperature 1
24 Condensor entering water temperature 2
25 Condensor entering water temperature 3
26 Digital display controller
27 Power supply intake (J 48)
backside
Scale 1/18
Required service space around the unit
•
Water-cooled • R-407C • EUW5-24KZW
7
Dimensional drawings
1
7
26
• Applied Systems • Chillers
