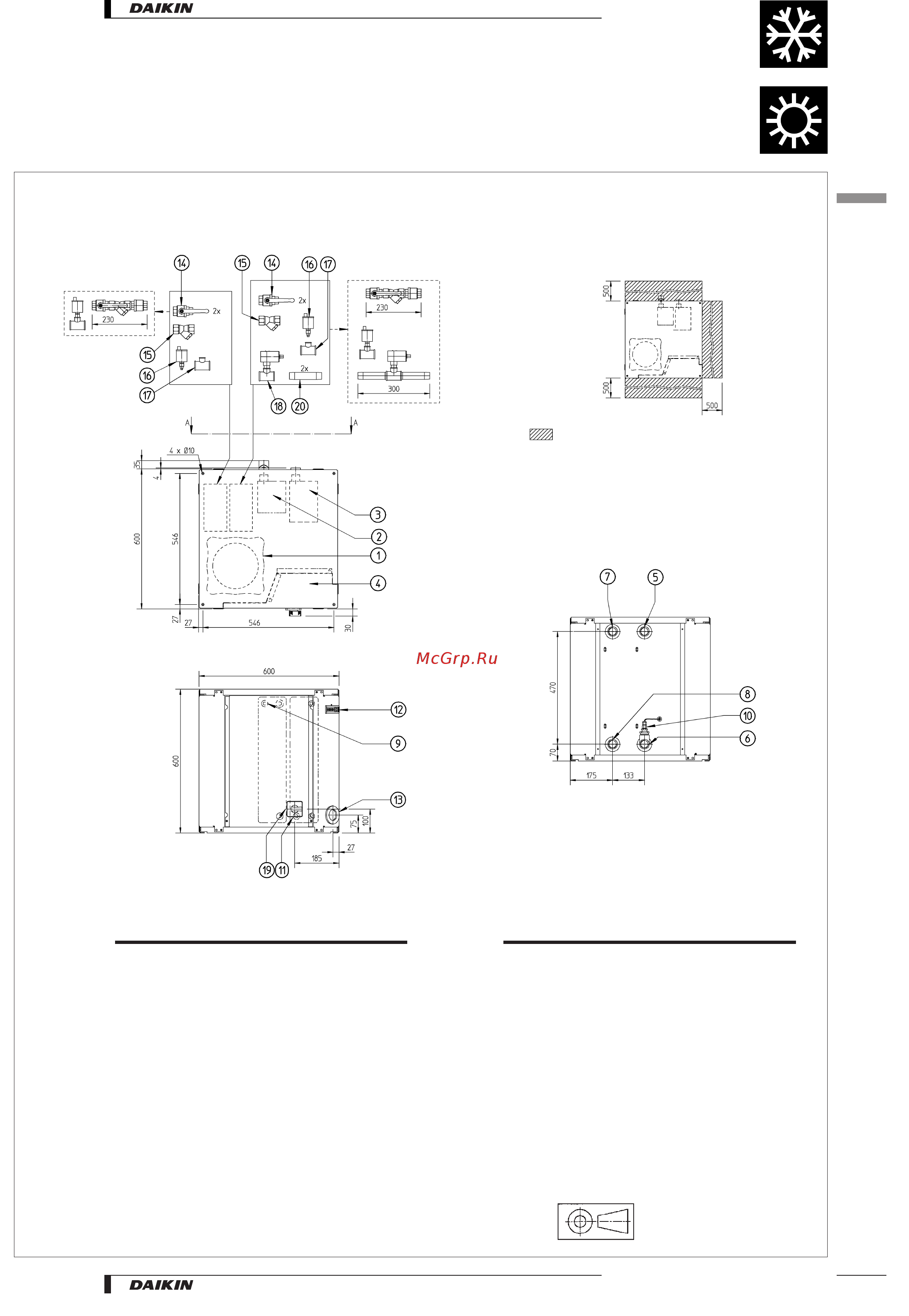

Dimensional drawings
EUW5-12KZW
3TW55254-1B
Required service space
around the unit
1 Compressor
2 Evaporator
3 Condenser
4 Switchbox
5 Chilled water in
6 Chilled water out
7 Condenser water out
8 Condenser water in
9 Evaporator entering water temperature sensor
10 Freeze up sensor
11 Condensor entering water temperature sensor
12 Digital display controller
13 Power supply intake (J 48)
14 Ballvalve
15 Water filter
16 Air purge
17 T-joint for air purge
18 Flow switch
19 Main switch
20 Flow switch pipe
View A-A
Scale 1/18
•
Water-cooled • R-407C • EUW5-24KZW
