Si34-704 Troubleshooting by Indication on the Remote Controller
Troubleshooting 239
3.28
“
J6
”
Outdoor Unit: Malfunction of Thermistor (R4T) for
Outdoor Unit Heat Exchanger
Remote
Controller
Display
J6
Applicable
Models
RXQ5P~54P
Method of
Malfunction
Detection
Malfunction is detected from the temperature detected by the heat exchanger thermistor.
Malfunction
Decision
Conditions
When a short circuit or an open circuit in the heat exchange thermistor is detected.
Supposed
Causes
Defect of thermistor (R4T) for outdoor unit coil
Defect of outdoor unit PC board (A1P)
Defect of thermistor connection

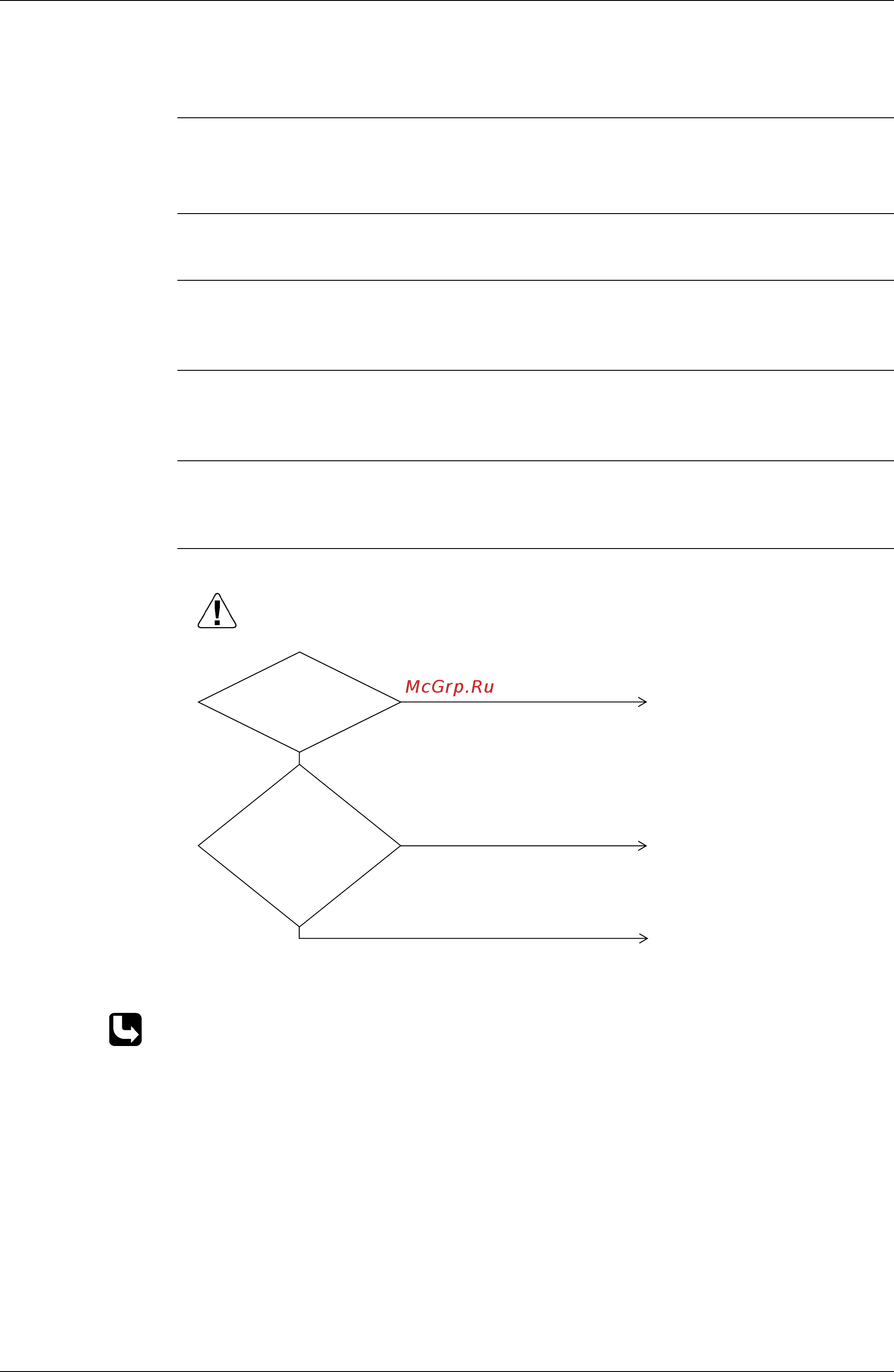

Troubleshooting
∗
Refer to “Thermistor Resistance / Temperature Characteristics” table on P361.
(V3074)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Resistance
is normal when
measured after
disconnecting the thermistor
R4T from the indoor
unit PC board.
(1.8kΩ to
800kΩ)
Replace outdoor unit PC board
(A1P).
Connect the connector and turn on
again.
NO
NO
Replace the thermistor R4T.
YES
YES
Connector
is connected to X30A
of outdoor unit PC
board (A1P).
