Si34-704 Troubleshooting by Indication on the Remote Controller
Troubleshooting 255

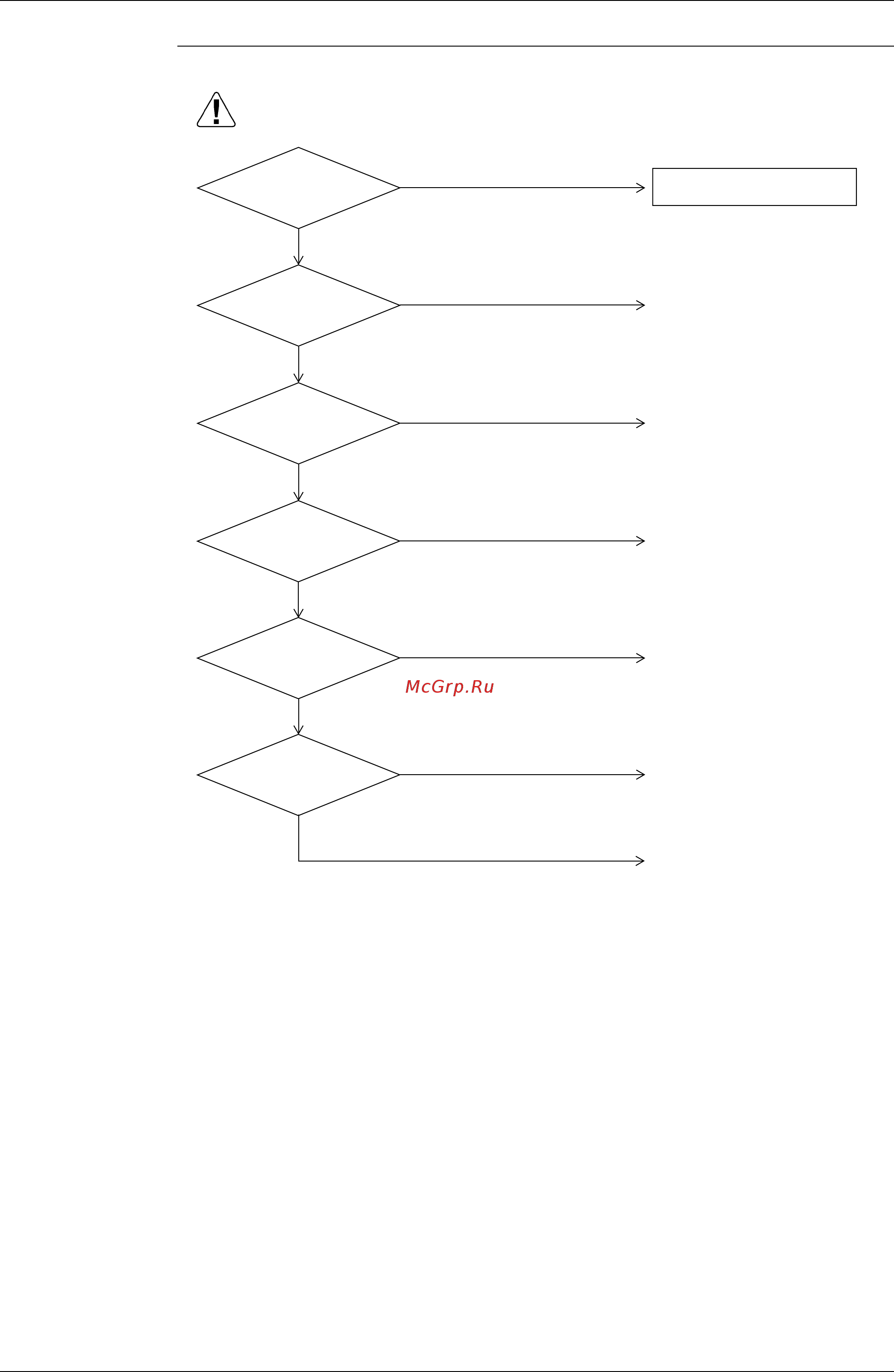

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Check if it
is the first time to start
after installation.
Check if a
right amount of refrigerant
is charged.
Check if the
stop valve is open.
Liquid
refrigerant is accumulated in
compressor (The unit is out of power
supply for more than
6 hours.)
Check if the
insulation resistance of the
compressor is more
than 100kΩ.
Check if the
compressor lead wires are
disconnected.
Go on to the next page.
( Starting failure due to aged operation.)
Charge a right amount of
refrigerant.
Open the stop valve.
Cancel the liquid refrigerant
accumulation state.
(Leave the power supply on for
more than 6 hours.)
Cancel the liquid refrigerant
accumulation state.
(Leave the power supply on for
more than 6 hours.)
Fix the compressor lead wire.
Correct the wiring then supply
power to restart.
NO
NO
NO
YES
NO
YES
NO
YES
YES
YES
NO
YES
