Planet VIP-2100 [17/140] Network configuration

VIP-2100 User’s manual - 12 -

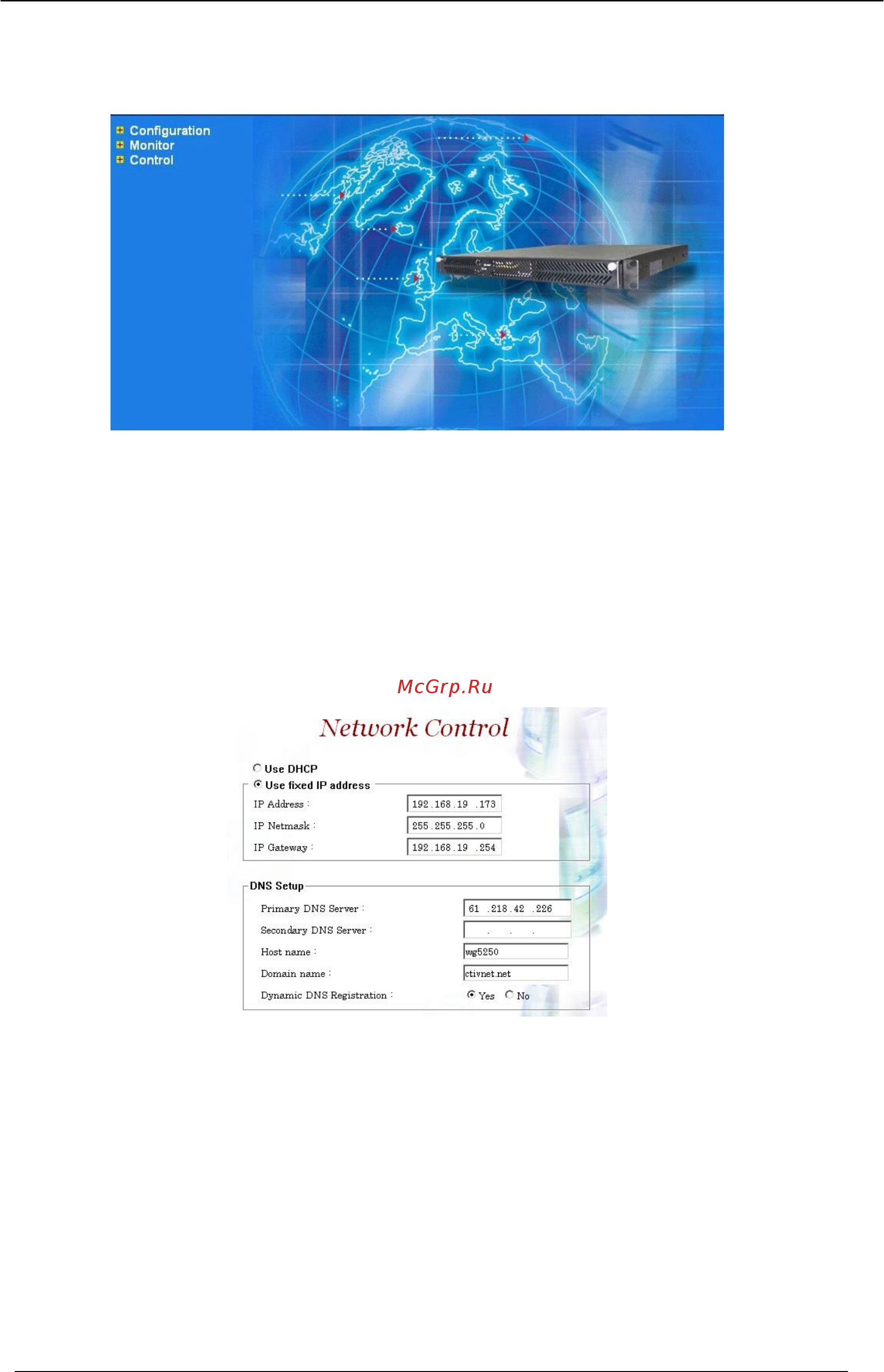

Step 3: The screen shows the Home Page of VIP-2100 as figure 2.1-3.

Figure 2.1-3

Network Configuration

Step 1: After successfully logon to the system, we need to change the

network configuration. Click Control→Network to setup the network

parameters as figure 2.2-1.

Figure 2.2-1
