VIP-2100 User’s manual - 13 -

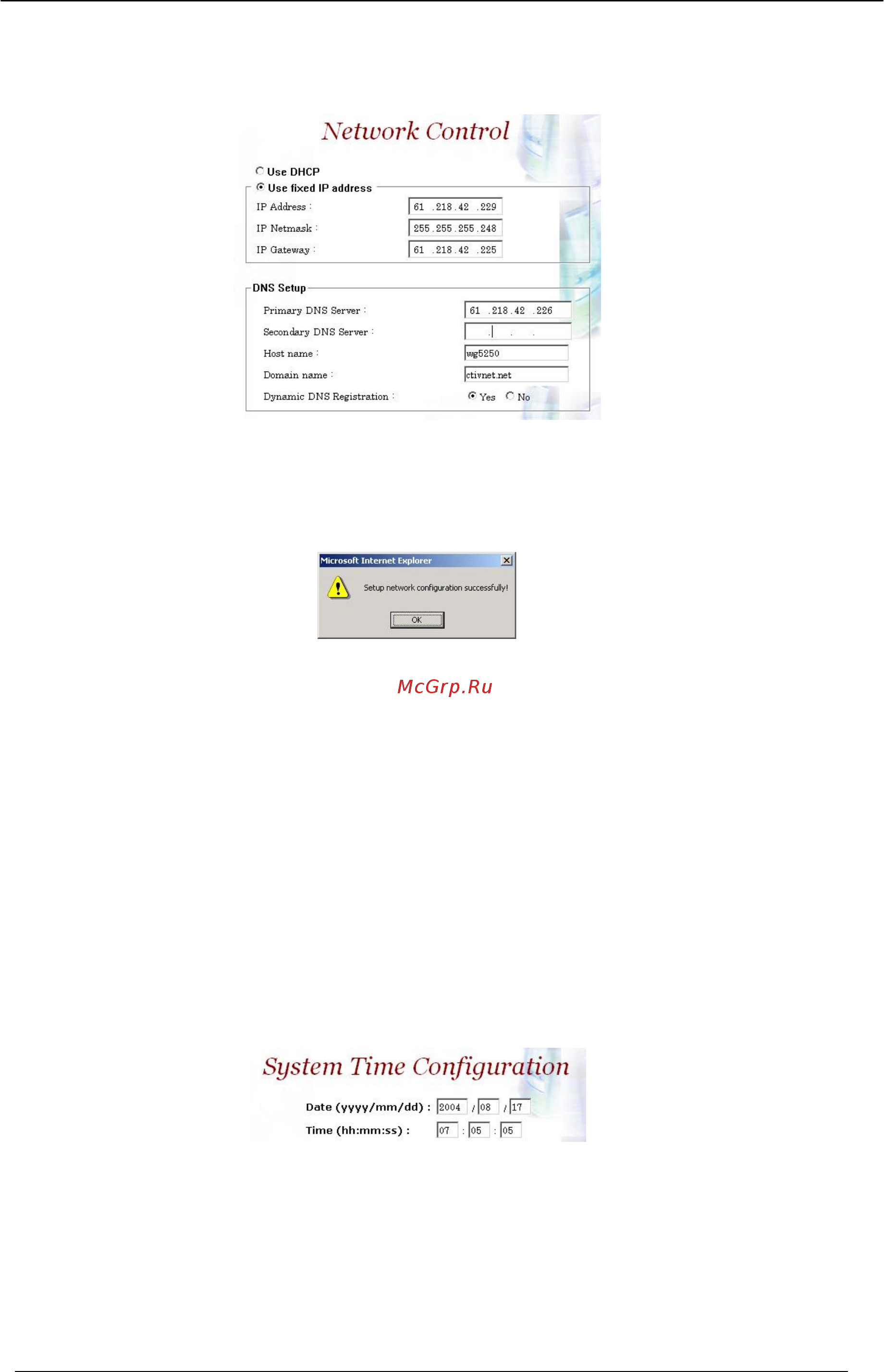

Step 2: Enter the deserved IP address, Submask and default gateway. Apply

the change by clicking apply button as figure 2.2-2.

Figure 2.2-2

Step 3: When screen shows “Setup network configuration successfully!”

It means the IP Network setting is successfully changed as figure 2.2-

Figure 2.2-3

☻Note: “Network Control” takes around 5-second to apply the new

network configuration. Please logon again with new IP address

after 5 seconds.

System Time Configuration

Step 1: When re-logon to the new IP address; the next is to setup the system

time zone. Click Control→System Time Zone to setup the system

as figure 2.3-1.

Figure 2.3-1

Step 2: After apply the new time zone, click Back to adjust the date and time

as figure 2.3-2.
